Description

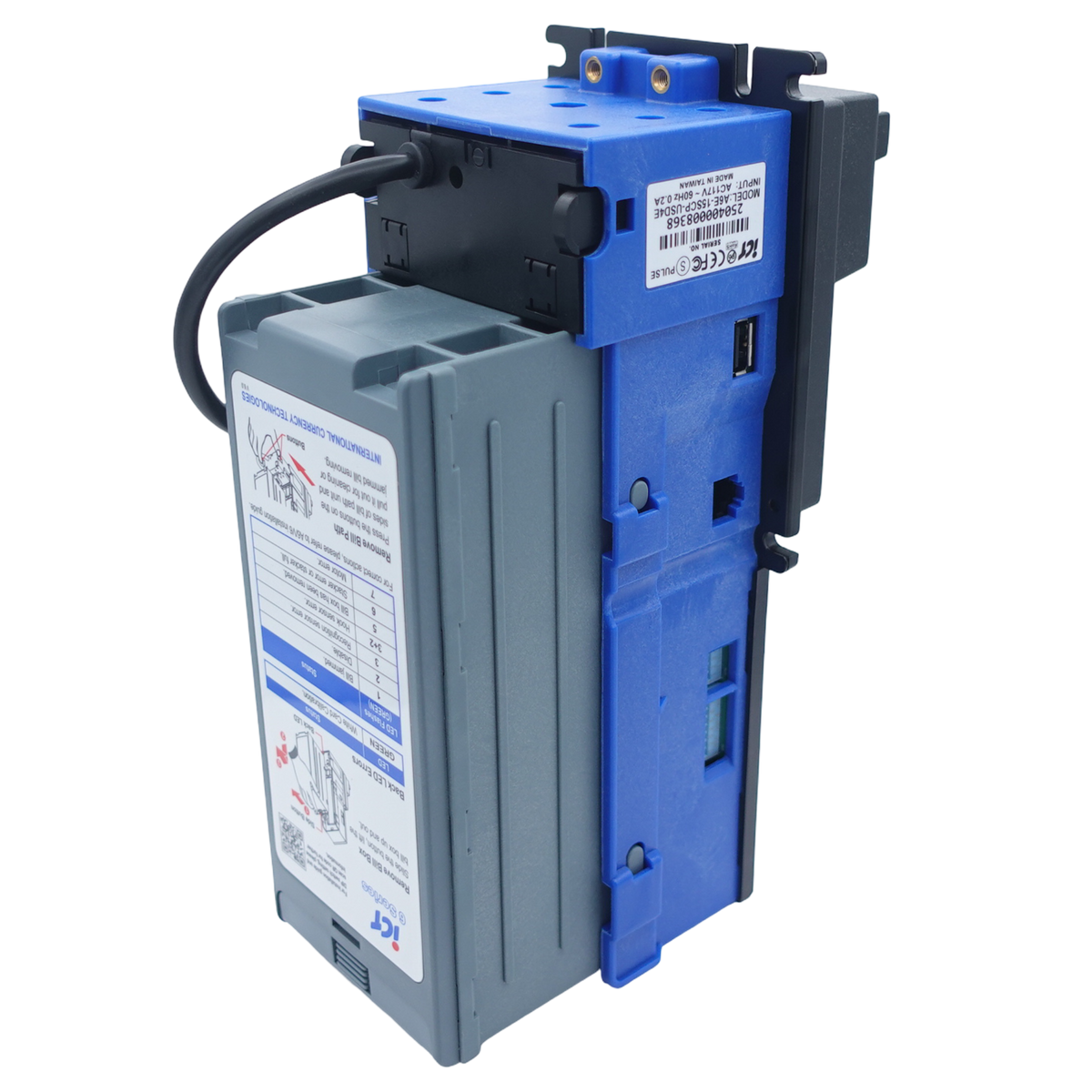

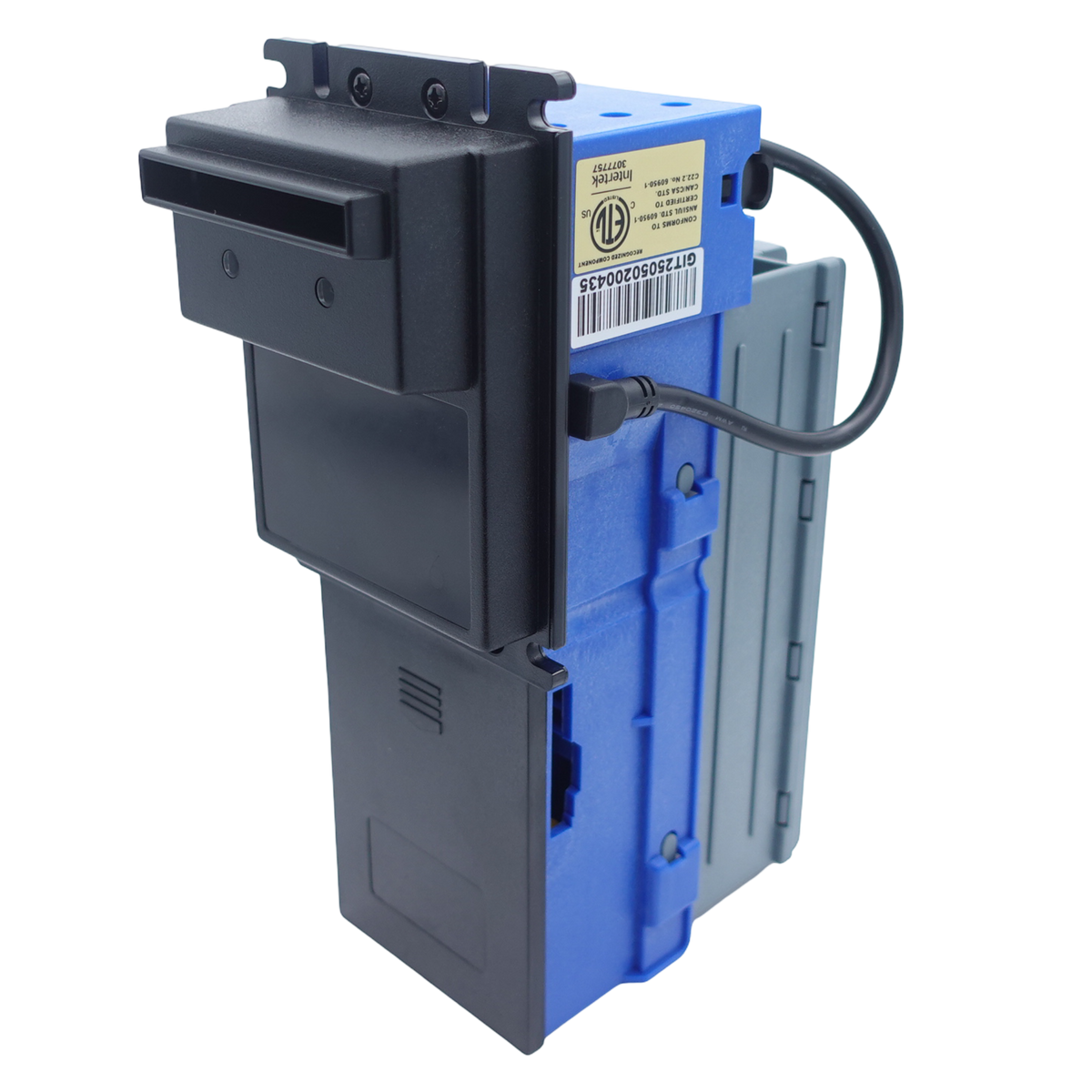

ICT A6E-13SCP-USD4 Bill Acceptor — 110V Pulse Validator with 300-Note Stacker
The ICT A6E-13SCP-USD4 is an A6E Series bill validator configured for USD note acceptance in vending and automated payment equipment. Its 110V AC power input, STD Pulse interface, standard bezel, and 300-note stacker suit OEM builders, route operators, and service technicians working with compatible machines. E & D Trading supplies this new ICT unit as an authorized distributor and reseller for replacement and equipment integration requirements.
Specifications
- Manufacturer: ICT
- Model / SKU: A6E-13SCP-USD4
- Series: ICT A6E Series
- Currency: United States USD
- Denomination acceptance: $1-$20
- Interface / protocol: Pulse (STD Pulse)
- Power supply: 110V AC
- Bezel: Standard
- Stacker capacity: 300 notes
- Bill insertion: Four-way
- Accepted bill width: 60–67 mm
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Calibration: Automatic
- Operating temperature: 0°C to 55°C
- Humidity range: 30%–85% RH, non-condensing
- Included installation hardware: Cover mounting kit
- Condition: New
Compatible platforms
This validator is intended for compatible vending machines, automated payment systems, and other equipment wired for a Pulse or STD Pulse bill acceptor. The standard bezel and supplied cover mounting kit support installations designed around the corresponding A6E Series configuration.
Integration notes
Confirm that the host machine provides 110V AC and is programmed or wired for the Pulse interface before installation. The acceptor reads bills inserted in any of four directions and is calibrated automatically during operation. Maintain the stated temperature and non-condensing humidity limits, and verify that the machine’s bill path accommodates 60–67 mm notes. The stacker holds up to 300 accepted notes.
Ordering & support
E & D Trading provides the ICT A6E-13SCP-USD4 for OEM builds, field replacement, and service inventory. Same-day quotes are available for volume orders, with freight coordination available for equipment and replenishment requirements.
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 300 Bills |
| Bezel Type | Standard |
| Condition | New |
