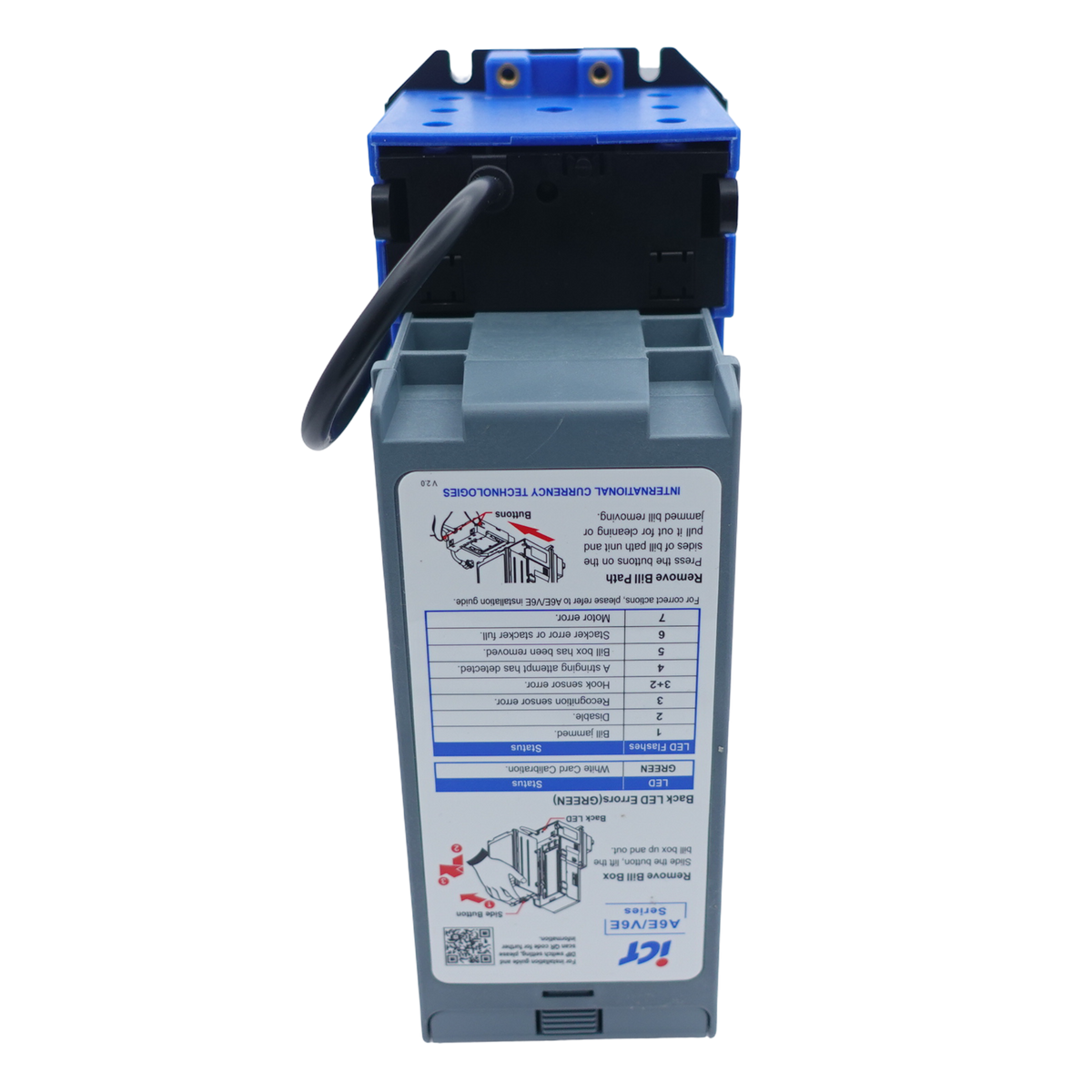

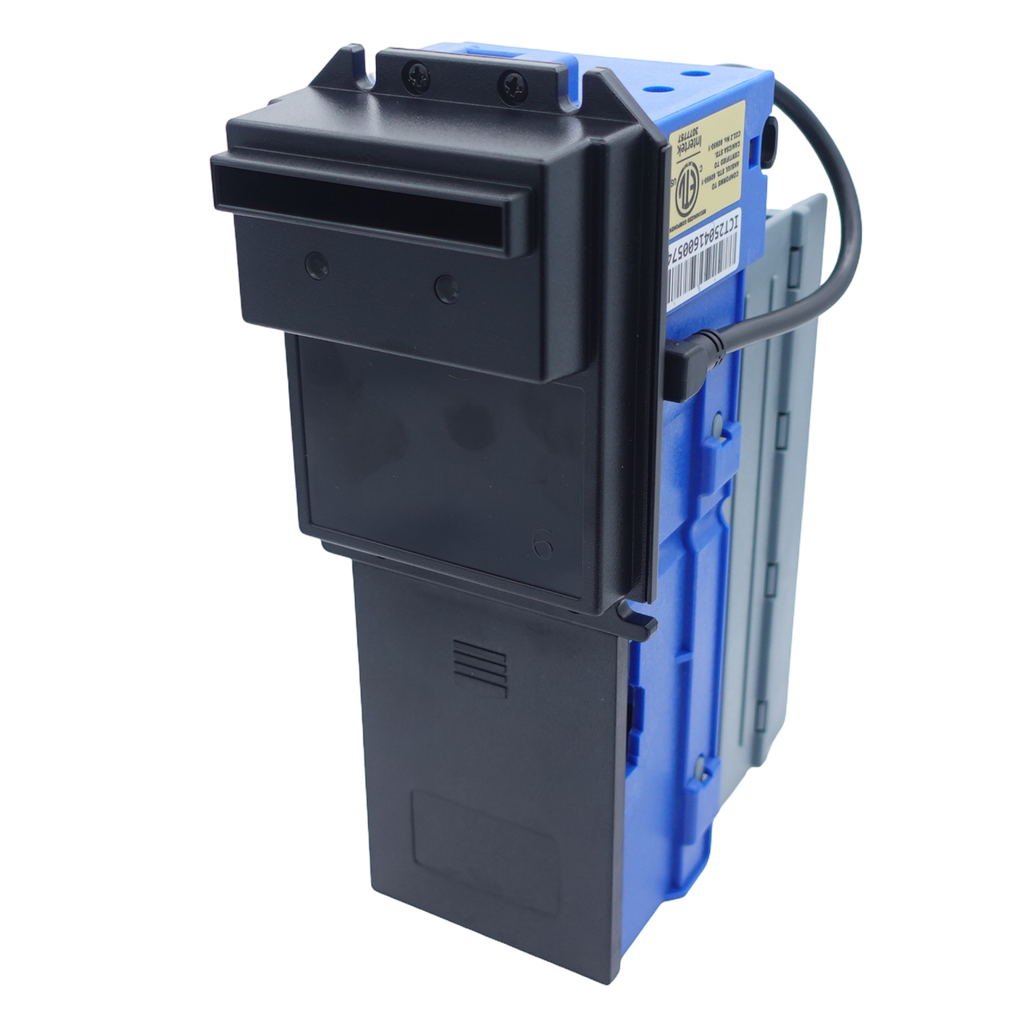

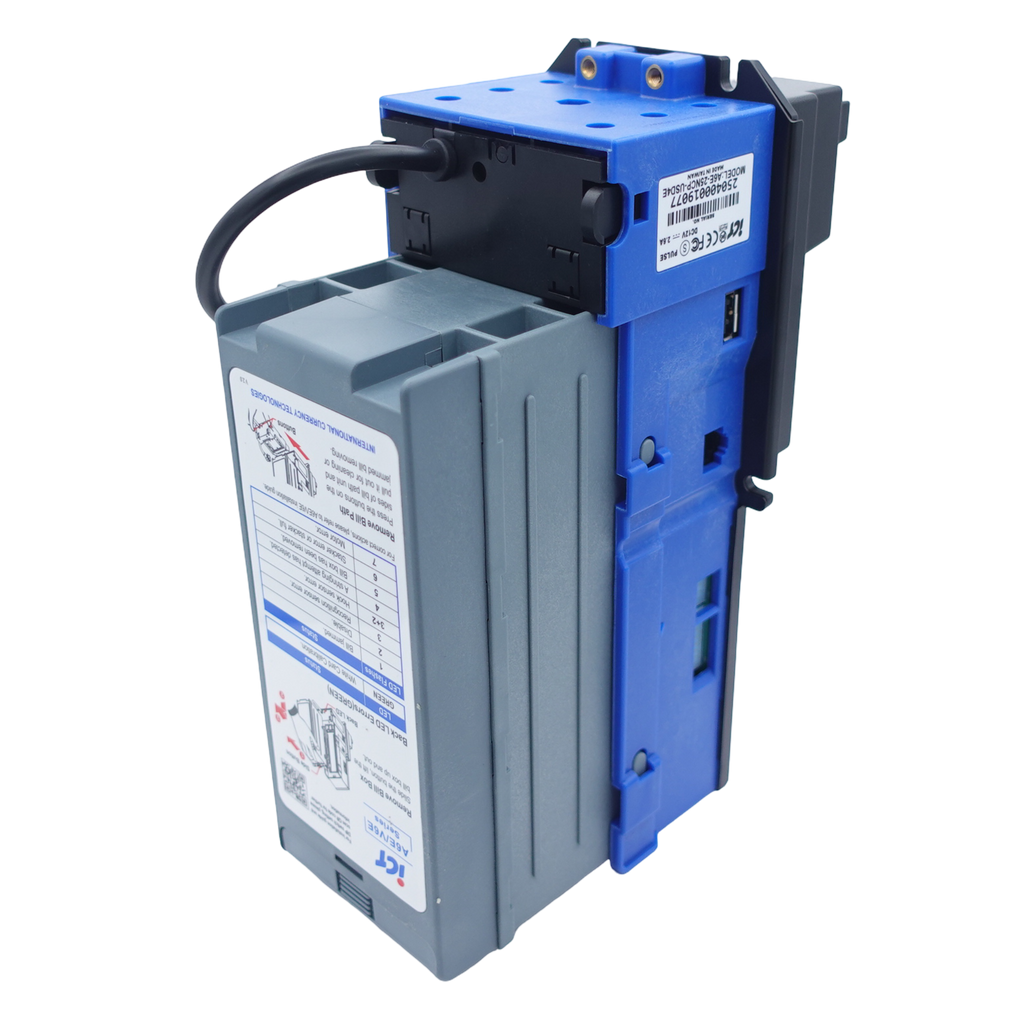

ICT A6E-15F0P-USD4 Bill Acceptor — 110V Pulse Validator with 500-Note Stacker
The ICT A6E-15F0P-USD4 is an A6E Series bill validator configured for United States currency acceptance, 110V AC operation, and a Pulse (STD Pulse) interface. It is supplied with a fitted bezel and a 500-note stacker for vending equipment and automated payment systems. E & D Trading is an authorized ICT distributor supplying this new unit to OEM builders, integrators, and route operators.
Specifications
- Manufacturer: ICT
- Model / SKU: A6E-15F0P-USD4
- Series: ICT A6E Series
- Currency: United States
- Denomination acceptance: $1-$20
- Interface / protocol: Pulse (STD Pulse)
- Power supply: 110V AC
- Stacker capacity: 500 notes
- Bezel: Fitted
- Mounting kit: Not included
- Bill insertion: Four-way
- Bill width accepted: 60–67 mm
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Calibration: Automatic
- Operating temperature: 0°C to 55°C
- Humidity: 30%–85% RH, non-condensing
- Condition: New
Fitment
This validator is intended for vending machines and other automated payment equipment using a 110V AC supply and standard Pulse signaling. The fitted bezel supports front-panel bill entry, while four-way insertion allows the note to be presented in any orientation supported by the validator.
Integration notes
The machine controller must be configured for the Pulse (STD Pulse) protocol and compatible with 110V AC operation. The 500-note stacker provides on-board note storage for routine collection cycles. Because a mounting kit is not included, the installer should verify cabinet cutout dimensions, fastening points, clearance, and harness requirements before installation. Automatic calibration, the 60–67 mm accepted bill width, and the specified environmental limits should be considered during commissioning.
Ordering & support
E & D Trading supplies the ICT A6E-15F0P-USD4 as a factory-direct replacement or new integration component. Same-day quotes are available for volume requirements, with freight coordination available for equipment deployment and service orders.
Technical Specifications
| Brand | ICT |
| Model Series | A6 / A6E Series |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Fitted |
| Condition | New |
