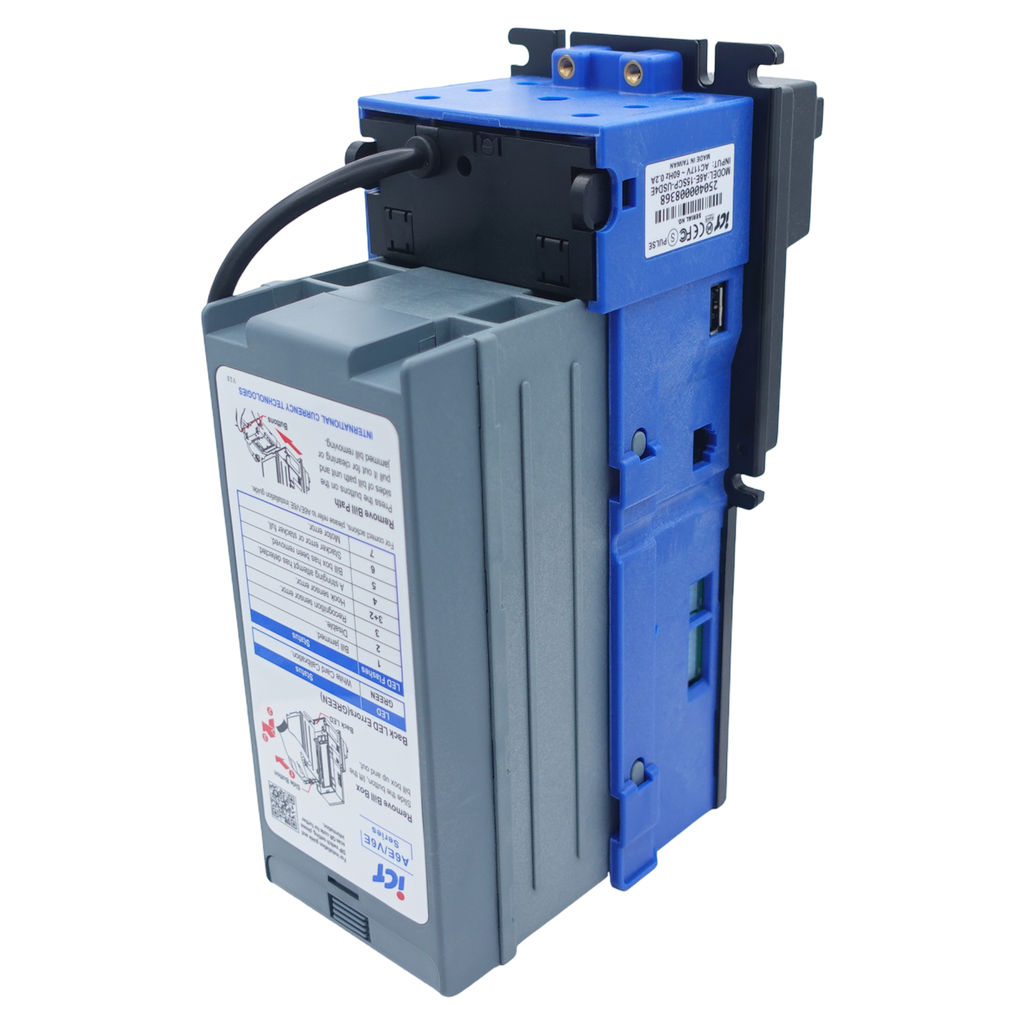

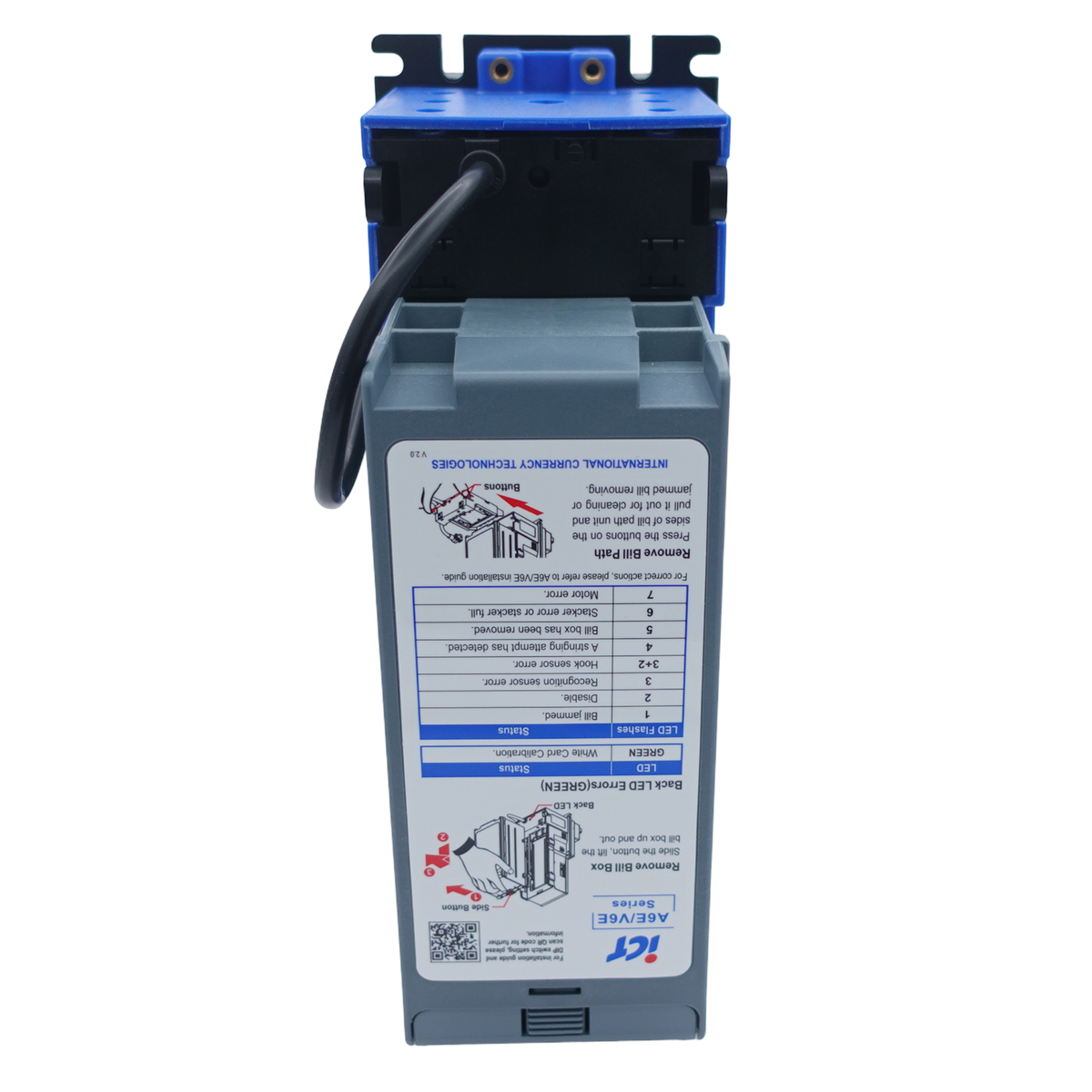

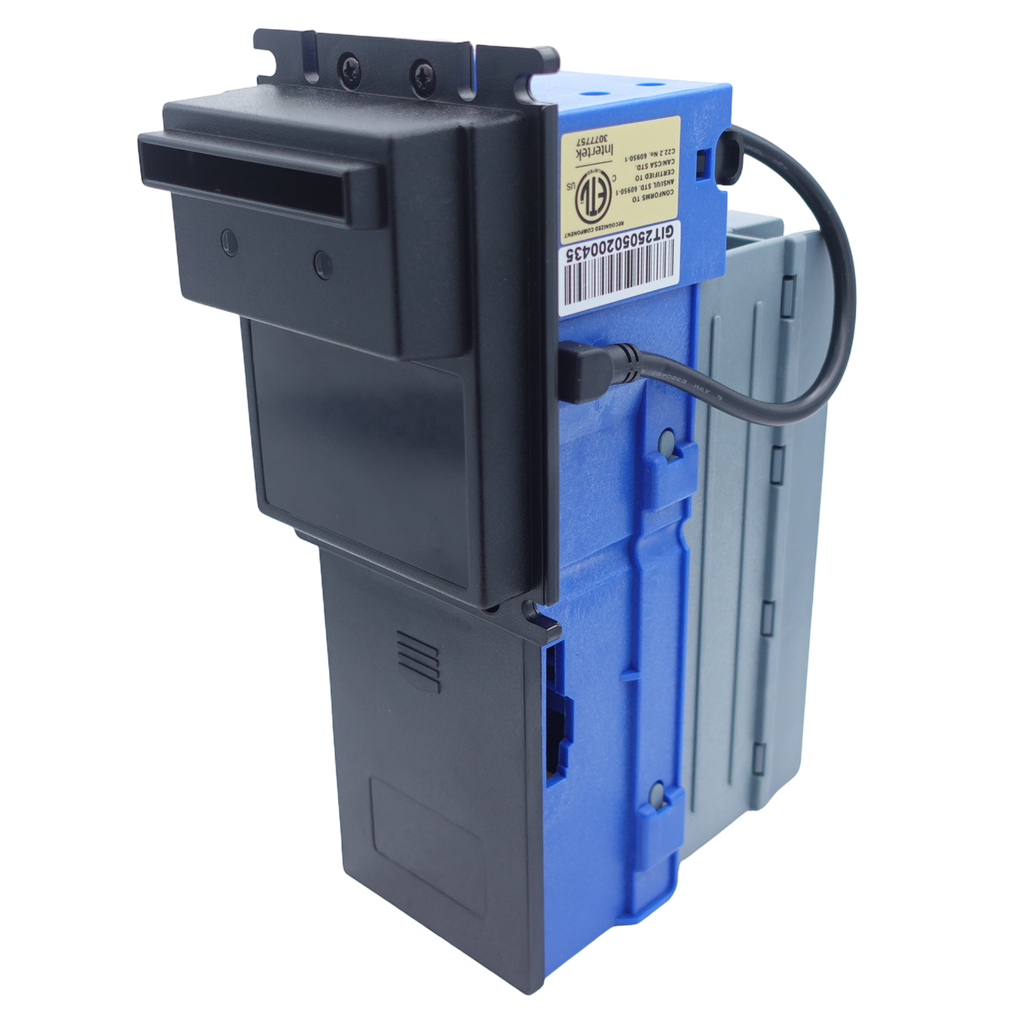

ICT A6E-15S0P-USD4 Bill Acceptor — 110V USD Pulse Validator
The ICT A6E-15S0P-USD4 is an A6E Series bill validator configured for United States currency, 110V AC operation, and a Pulse (STD Pulse) interface. Its 500-note stacker and standard bezel configuration suit vending equipment and other automated payment systems that require stored-bill capacity and straightforward machine integration. E & D Trading supplies this new ICT unit as an authorized distributor for OEM builders, equipment integrators, and route operators.
Specifications
- Manufacturer: ICT
- Model / SKU: A6E-15S0P-USD4
- Series: ICT A6E Series
- Currency: United States dollar (USD)
- Denomination acceptance: $1-$20
- Interface / protocol: Pulse (STD Pulse)
- Power supply: 110V AC
- Stacker capacity: 500 notes
- Bezel: Standard
- Bill insertion: Four-way
- Bill width accepted: 60–67 mm
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Calibration: Automatic
- Operating temperature: 0°C to 55°C
- Humidity: 30%–85% RH, non-condensing
- Condition: New
Compatible platforms
This validator is intended for vending machines, automated payment equipment, and custom cash-acceptance cabinets that provide a compatible 110V AC supply and STD Pulse control input. The four-way acceptance path accommodates flexible bill orientation during routine operation.
Integration notes
The unit ships with a standard bezel and does not include a mounting kit. Installers should verify cabinet cutout, mounting hardware, connector pinout, and Pulse interface requirements before deployment. The A6E-15S0P-USD4 uses automatic calibration and supports bill widths from 60–67 mm; operating conditions should remain within the listed temperature and non-condensing humidity ranges.
Ordering & support
E & D Trading provides the ICT A6E-15S0P-USD4 for replacement installations, new machine builds, and service inventory. Contact E & D Trading for same-day volume quotations, application assistance, and freight coordination.
Technical Specifications
| Brand | ICT |
| Model Series | A6 / A6E Series |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Condition | New |
