Description

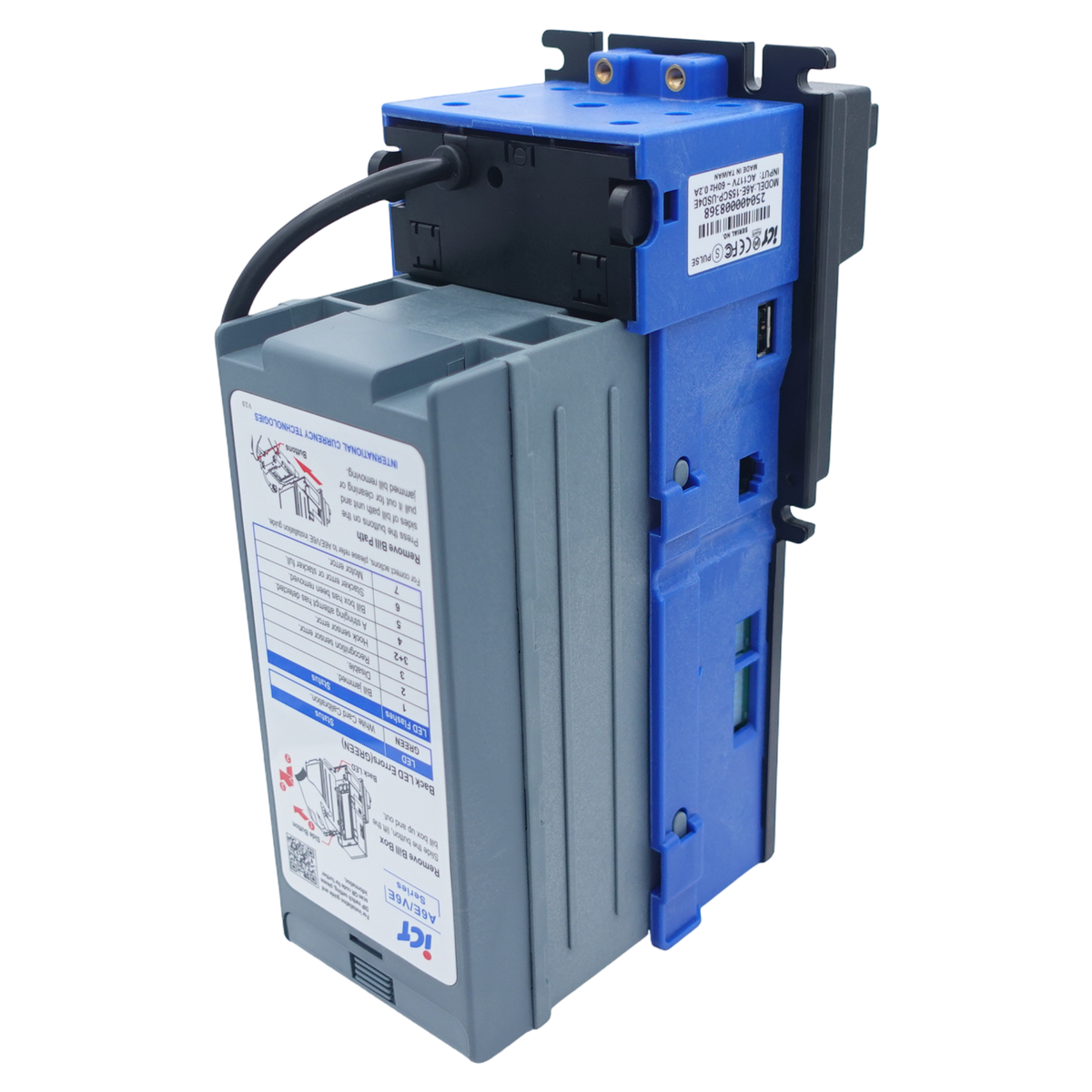

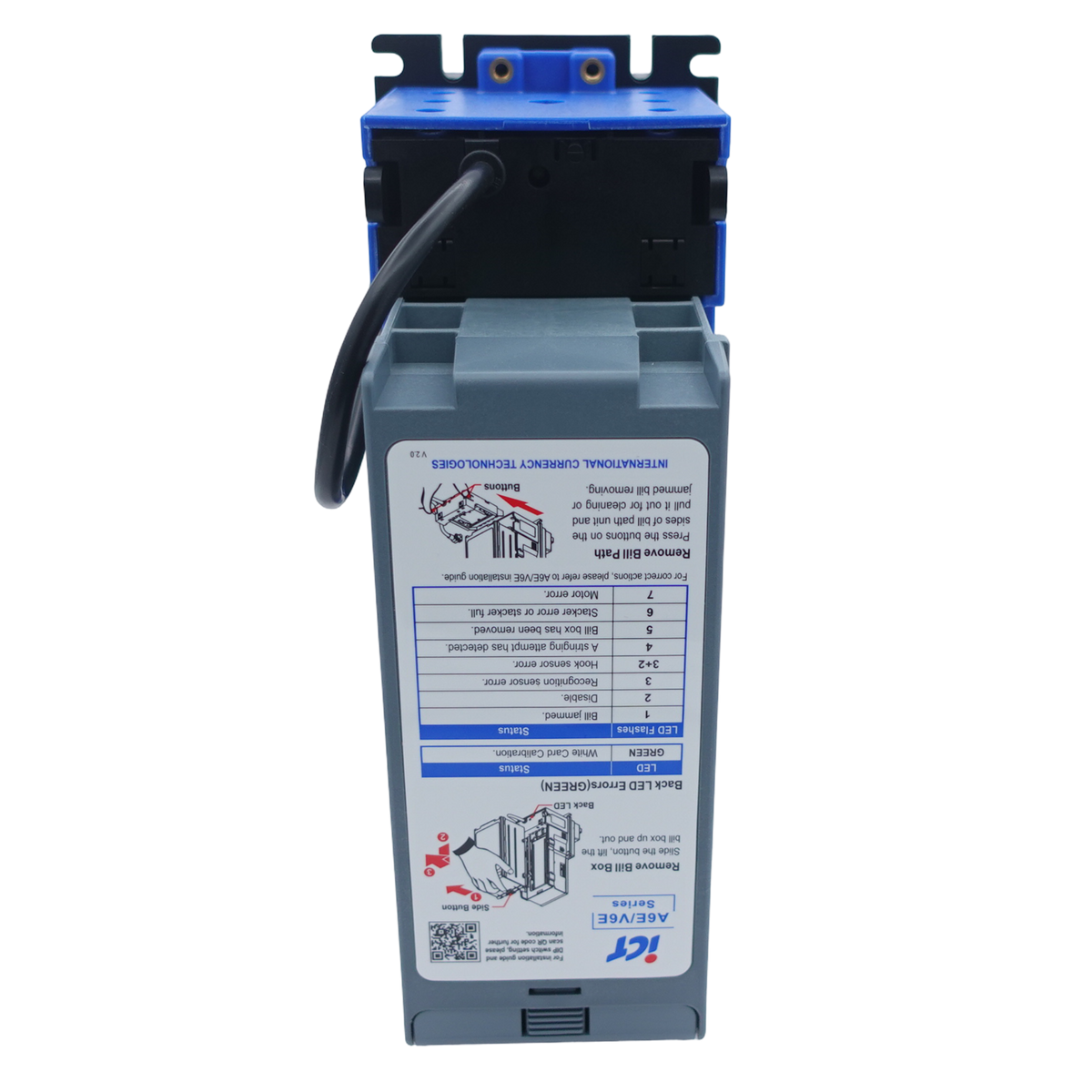

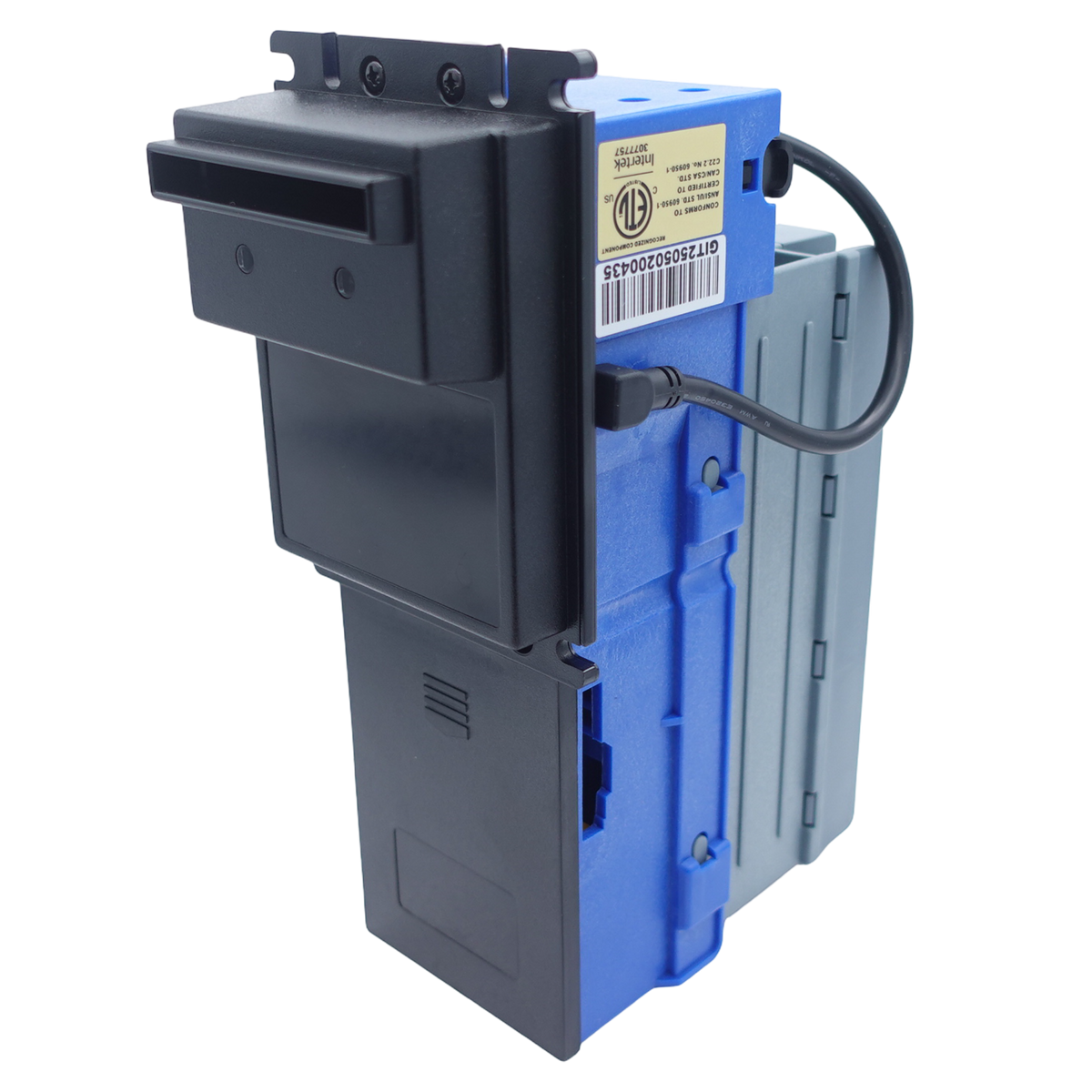

ICT A6E-15SCP-USD4 Bill Acceptor — 110V USD Pulse Validator
The ICT A6E-15SCP-USD4 is an A6E Series bill validator configured for United States currency and 110V AC vending or automated payment equipment. Its Pulse (STD Pulse) interface, four-way bill insertion, and 500-note stacker support straightforward integration into compatible machines. E & D Trading supplies this new ICT unit to OEM builders, route operators, and service technicians requiring a specified replacement or installation-ready validator.
Specifications
- Brand: ICT
- Model / SKU: A6E-15SCP-USD4
- Series: ICT A6E Series
- Currency: United States currency (USD)
- Denomination acceptance: $1-$20
- Interface / protocol: Pulse (STD Pulse)
- Power supply: 110V AC
- Stacker capacity: 500 notes
- Bezel: Standard
- Bill insertion: Four-way
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Bill width accepted: 60–67 mm
- Operating temperature: 0°C to 55°C
- Humidity range: 30%–85% RH, non-condensing
- Calibration: Automatic
- Included hardware: Cover mounting kit
- Condition: New
Compatible platforms
This validator is intended for compatible vending machines and automated payment systems that accept a 110V AC bill acceptor using the Pulse (STD Pulse) protocol. The standard bezel and cover mounting kit support installation in equipment designed for the corresponding A6E configuration. Confirm cabinet clearance, connector compatibility, and machine programming before deployment.
Integration notes
Four-way insertion allows the operator to present an accepted bill in any orientation. The 500-note stacker is suited to applications requiring extended collection intervals, while the approximately 3-second transaction time supports normal service throughput. Automatic calibration and accessible installation hardware simplify commissioning and routine maintenance. The 60–67 mm acceptance range and specified environmental limits should be checked against the operating site and currency configuration.
Ordering & support
E & D Trading is an authorized ICT distributor and reseller. Same-day volume quotes and freight coordination are available for equipment builders, operators, and service departments ordering the A6E-15SCP-USD4.
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Condition | New |
