Description

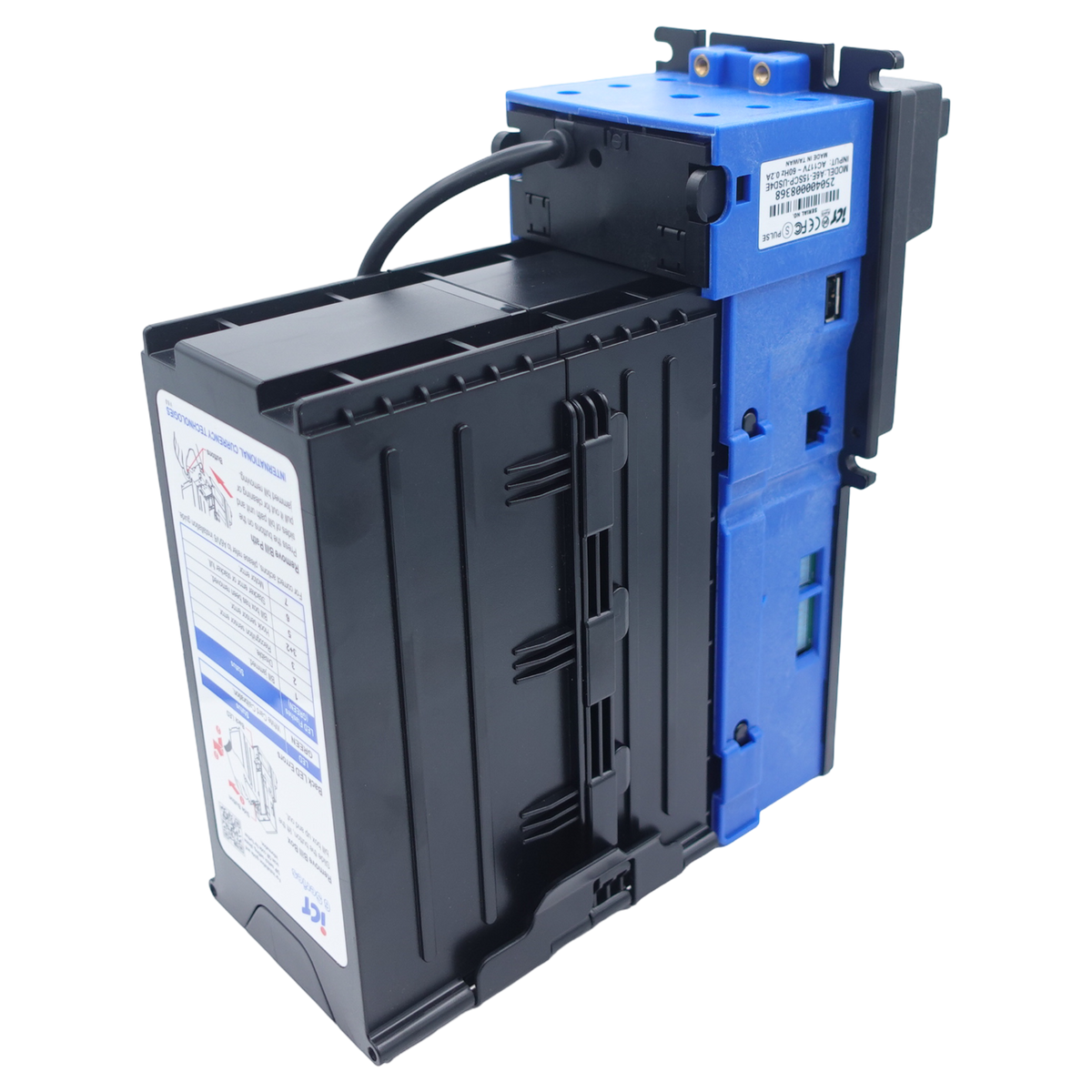

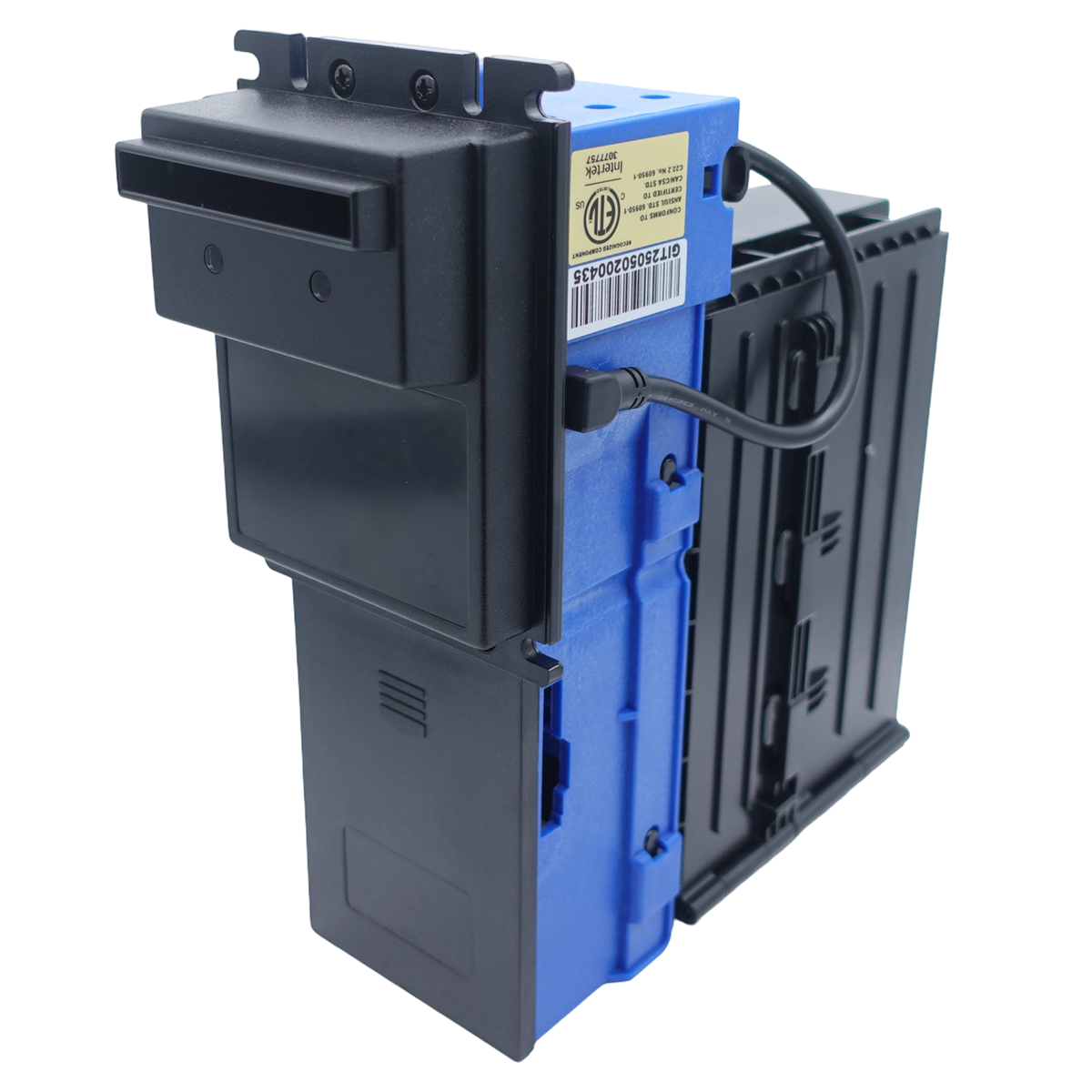

ICT A6E-18SCP-USD4 Bill Acceptor — 110V Pulse Validator with 800-Note Stacker
The ICT A6E-18SCP-USD4 is a U.S. currency bill validator configured for vending equipment and automated payment systems. This new A6E Series unit uses a 110V AC supply, STD Pulse signaling, and a standard bezel for straightforward machine integration. E & D Trading supplies the validator as an authorized reseller for OEM builders, route operators, and service technicians requiring a high-capacity note acceptor.
Specifications
- Manufacturer: ICT
- Model / SKU: A6E-18SCP-USD4
- Series: ICT A6E Series
- Currency: United States
- Denomination acceptance: $1-$20
- Power: 110V AC
- Interface / protocol: Pulse (STD Pulse)
- Stacker capacity: 800 notes
- Bezel: Standard
- Bill insertion: Four-way
- Accepted bill width: 60–67 mm
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Calibration: Automatic calibration system
- Operating temperature: 0°C to 55°C
- Humidity: 30%–85% RH, non-condensing
- Included mounting hardware: Cover mounting kit
Fitment
This validator is intended for compatible vending machines and automated payment cabinets that provide 110V AC input and a Pulse interface. Its standard bezel supports conventional front-panel note entry, while four-way insertion gives the operator flexibility when loading bills. Confirm cabinet opening, harness arrangement, and controller pulse requirements before installation.
Integration notes
The 800-note stacker supports longer collection intervals in suitable route-service applications. The included cover mounting kit assists installation in compatible equipment, and the auto-calibration function supports setup and ongoing service. The unit is specified for operation from 0°C to 55°C and 30%–85% relative humidity without condensation; environmental conditions outside those limits may affect operation.
Ordering & support
E & D Trading provides the ICT A6E-18SCP-USD4 for replacement, retrofit, and new equipment builds. Same-day quotes are available for volume requirements, with freight coordination available for project and route-service orders.
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 800 Bills |
| Bezel Type | Standard |
| Condition | New |
