Description

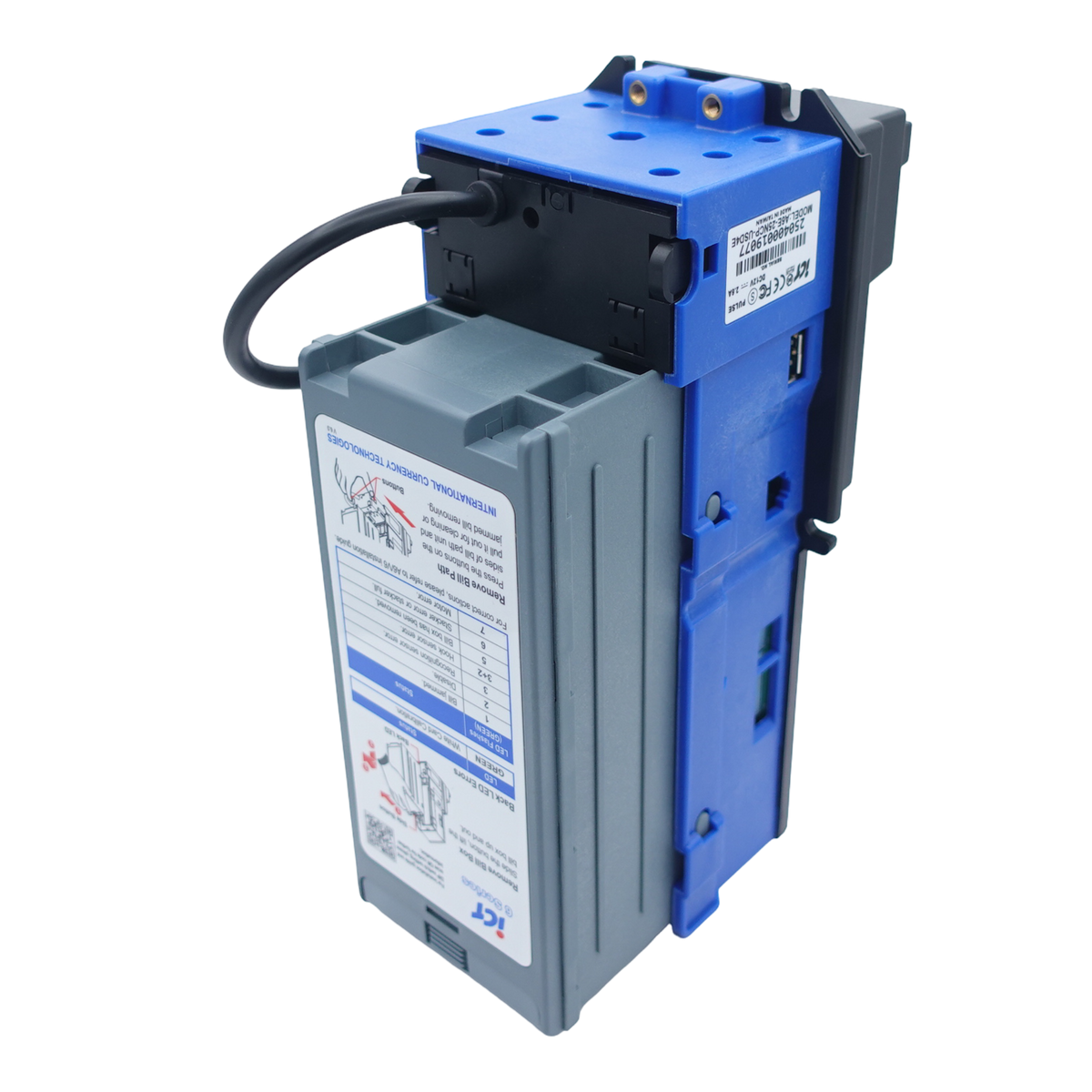

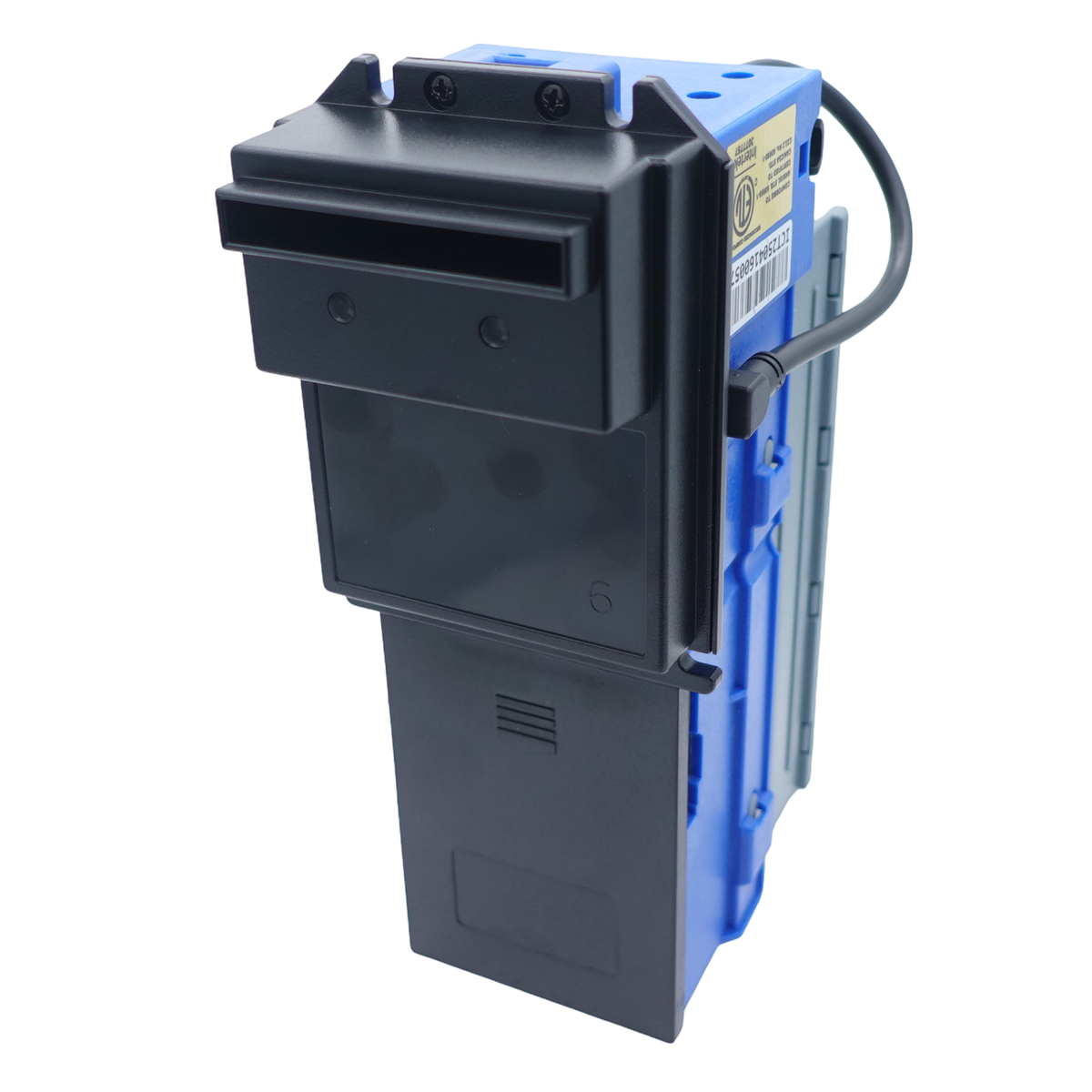

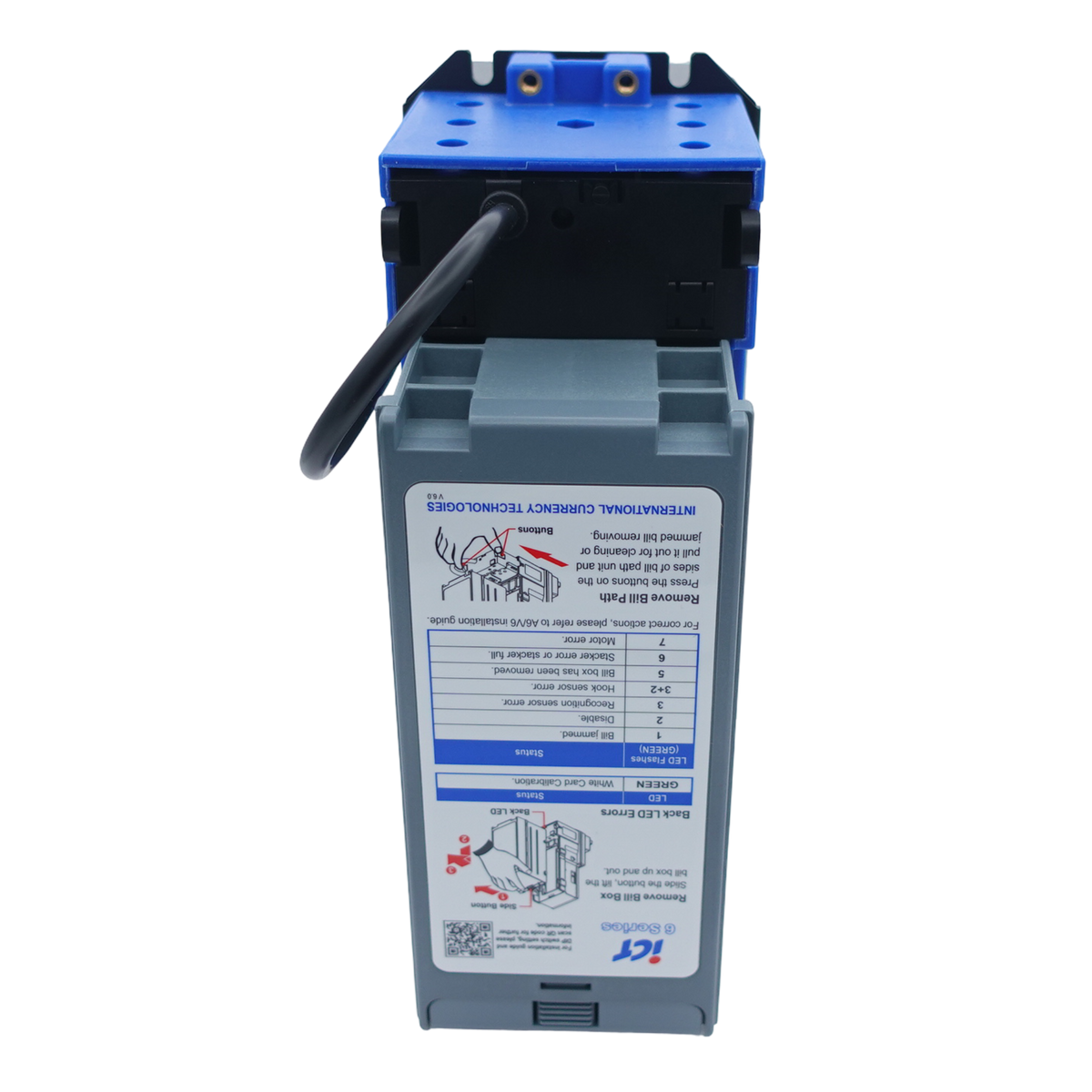

ICT A6E-23FCP-USD4 Bill Acceptor — 12V Pulse Validator with 300-Note Stacker
The ICT A6E-23FCP-USD4 is an A6E Series banknote validator configured for USD acceptance, STD Pulse signaling, and 12V DC operation. Its fitted bezel, four-way note entry, and 300-note stacker support installation in vending equipment and automated payment systems. E & D Trading supplies this new ICT unit to OEM builders, integrators, and route operators requiring a documented replacement or production-ready bill acceptance assembly.
Specifications
- Manufacturer: ICT
- Model / SKU: A6E-23FCP-USD4
- Series: ICT A6E Series
- Currency: United States
- Denomination acceptance: $1-$20
- Interface / protocol: Pulse (STD Pulse)
- Power: 12V DC
- Stacker capacity: 300 notes
- Bezel: Fitted
- Bill insertion: Four-way
- Accepted bill width: 60–67 mm
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Operating temperature: 0°C to 55°C
- Humidity: 30%–85% RH, non-condensing
- Condition: New
Fitment
This validator is intended for compatible vending machines, automated payment equipment, and other systems wired for 12V Pulse operation. The fitted bezel provides the note-entry interface, while the included cover mounting kit supports installation in equipment designed to accept the corresponding A6E configuration.
Integration notes
Verify that the host machine supplies 12V DC and is configured for the STD Pulse protocol before installation. The unit accepts notes in four orientations and incorporates an auto-calibration system for stable operation. Allowable environmental conditions are 0°C to 55°C and 30%–85% relative humidity without condensation. Routine access is simplified by the service-oriented A6E construction.
Ordering & support
E & D Trading is an authorized ICT distributor and reseller. The A6E-23FCP-USD4 is available as a new assembly for equipment builds, replacements, and service inventory. E & D Trading provides same-day quotes for volume requirements and can coordinate freight for commercial orders.
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 300 Bills |
| Bezel Type | Fitted |
| Condition | New |
