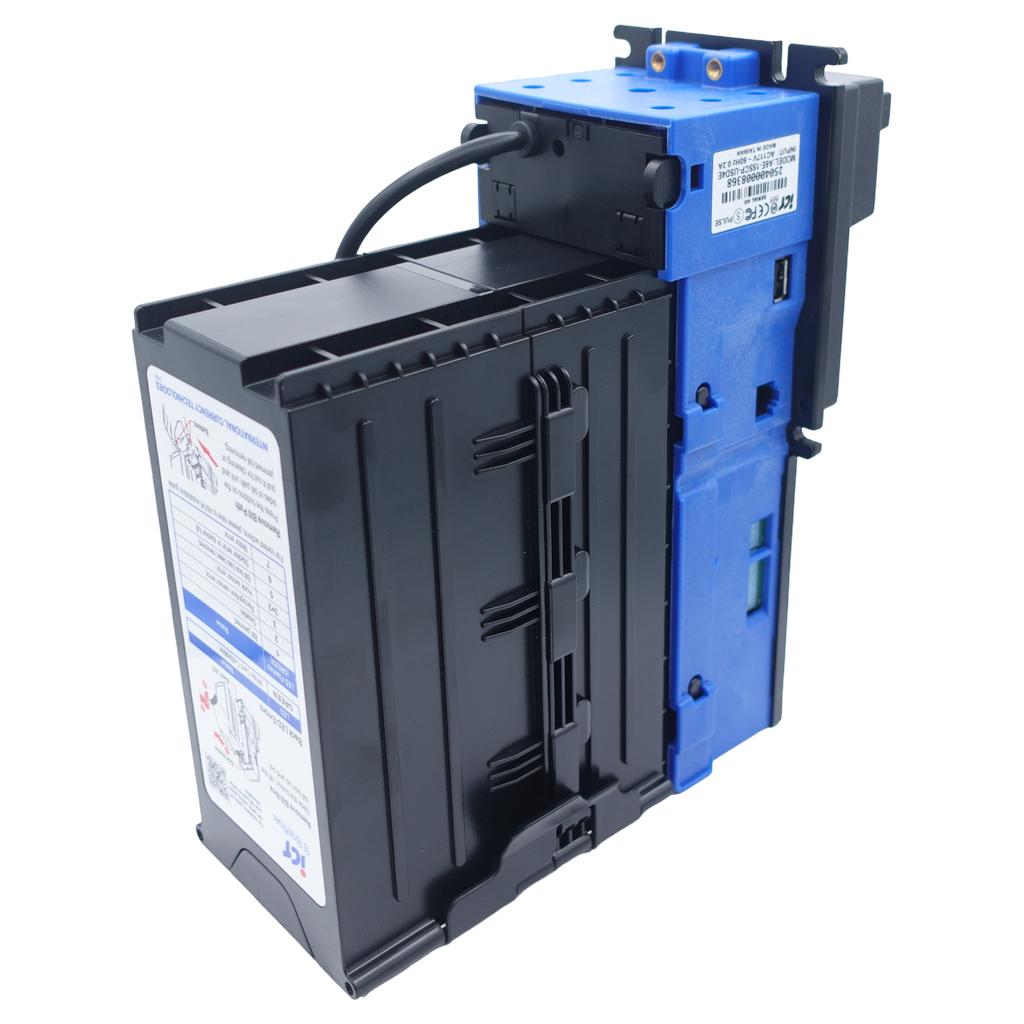

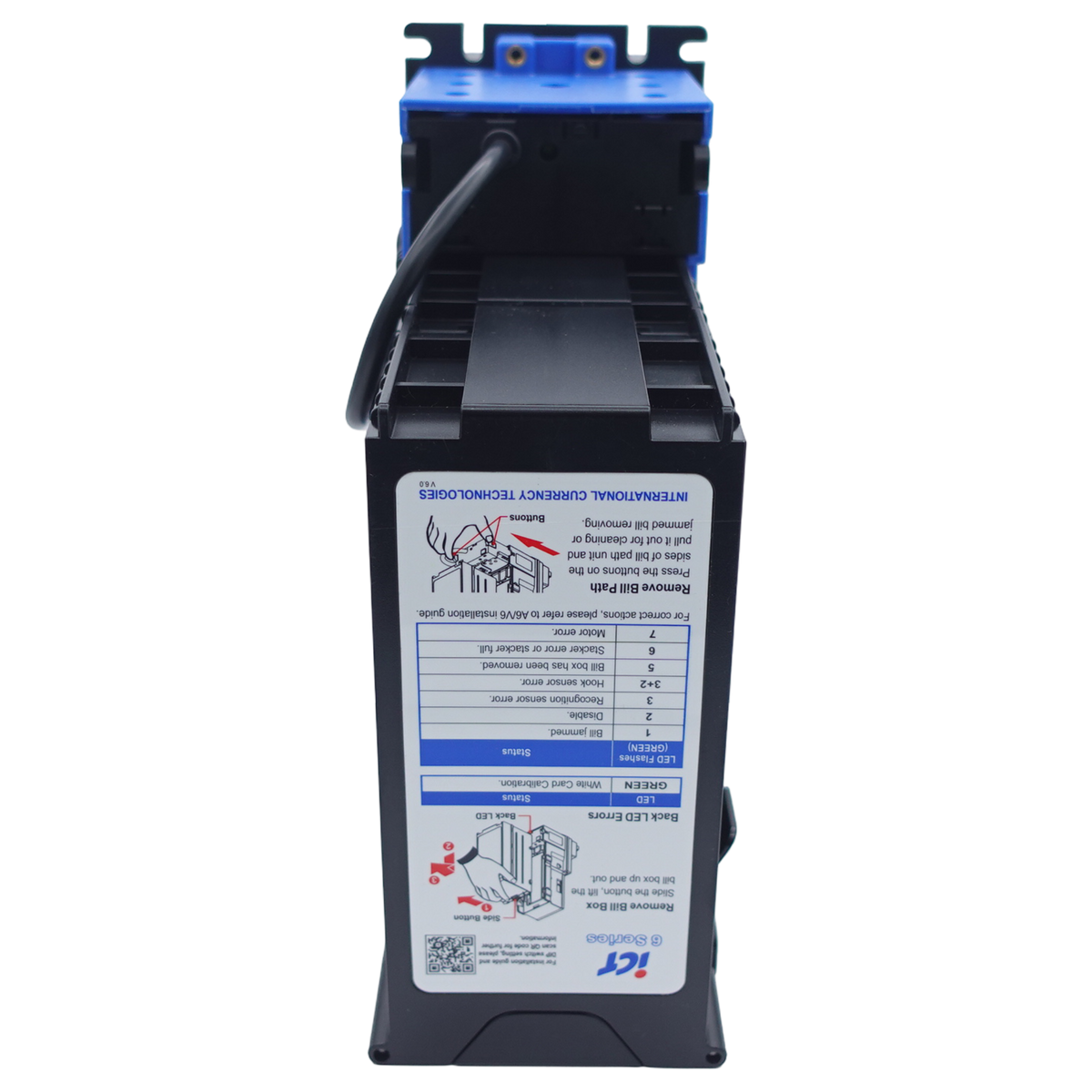

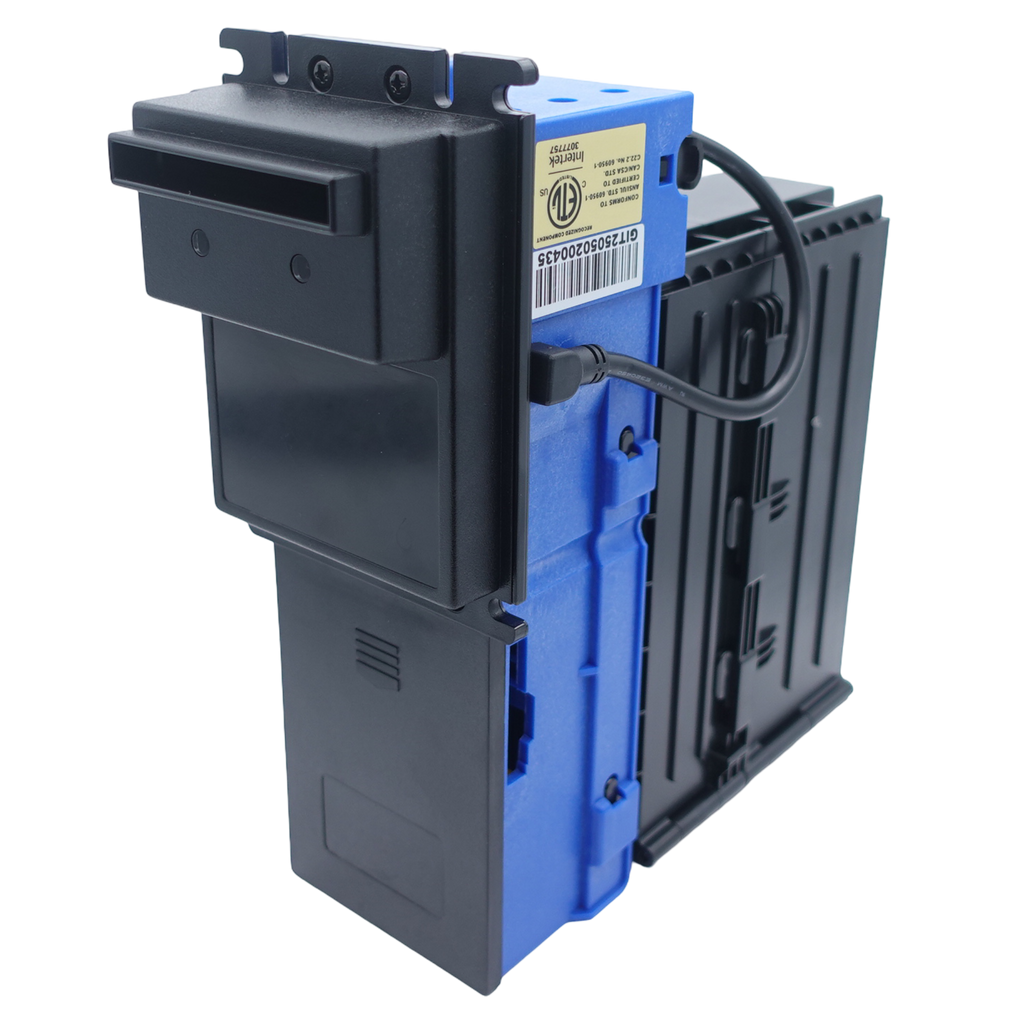

ICT A6E-28S0P-USD4-IP Bill Acceptor — 12V USD Pulse Validator
The ICT A6E-28S0P-USD4-IP is a USD bill validator configured for vending equipment and automated payment systems. This A6E Series unit accepts United States denominations from $1-$20 and communicates through the STD Pulse interface. E & D Trading supplies this new ICT validator as an authorized reseller for OEM builders, equipment integrators, and route operators requiring a defined 12V replacement or installation component.
Specifications
- Manufacturer: ICT
- Model: A6E
- SKU / part number: A6E-28S0P-USD4-IP
- Currency: United States (USD)
- Denomination acceptance: $1-$20
- Power supply: 12V DC
- Interface / protocol: Pulse (STD Pulse)
- Stacker capacity: 800 notes
- Bezel: Standard
- Bill insertion: Four-way
- Acceptance rate: 96% or higher
- Transaction time: Approximately 3 seconds
- Accepted bill width: 60–67 mm
- Operating temperature: 0°C to 55°C
- Humidity: 30%–85% RH, non-condensing
- Condition: New
- Recycler: FALSE
Compatible platforms
This validator is suited to vending machines, automated payment equipment, and other machine-build applications that provide 12V DC power and use a Pulse payment interface. The standard bezel supports conventional front-panel bill entry, while the 800-note stacker provides collection capacity for unattended operation.
Integration notes
The unit ships without a mounting kit, so the installer must provide the appropriate mounting hardware for the target cabinet or panel. Its four-way insertion capability allows bills to be presented in any direction. An auto-calibration system supports setup and ongoing validation performance. This product is supplied in the custom Innovative Packaging configuration with SW3-3 set to ON; integrators should verify switch settings, harness wiring, cabinet clearance, and Pulse signal compatibility before deployment.
Ordering & support
E & D Trading provides the ICT A6E-28S0P-USD4-IP for replacement inventory, new machine builds, and service requirements. Volume customers can request same-day quotes, and freight coordination is available for equipment projects and multi-unit orders.
Technical Specifications
| Brand | ICT |
| Model Series | A6 / A6E Series |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 800 Bills |
| Bezel Type | Standard |
| Condition | New |
