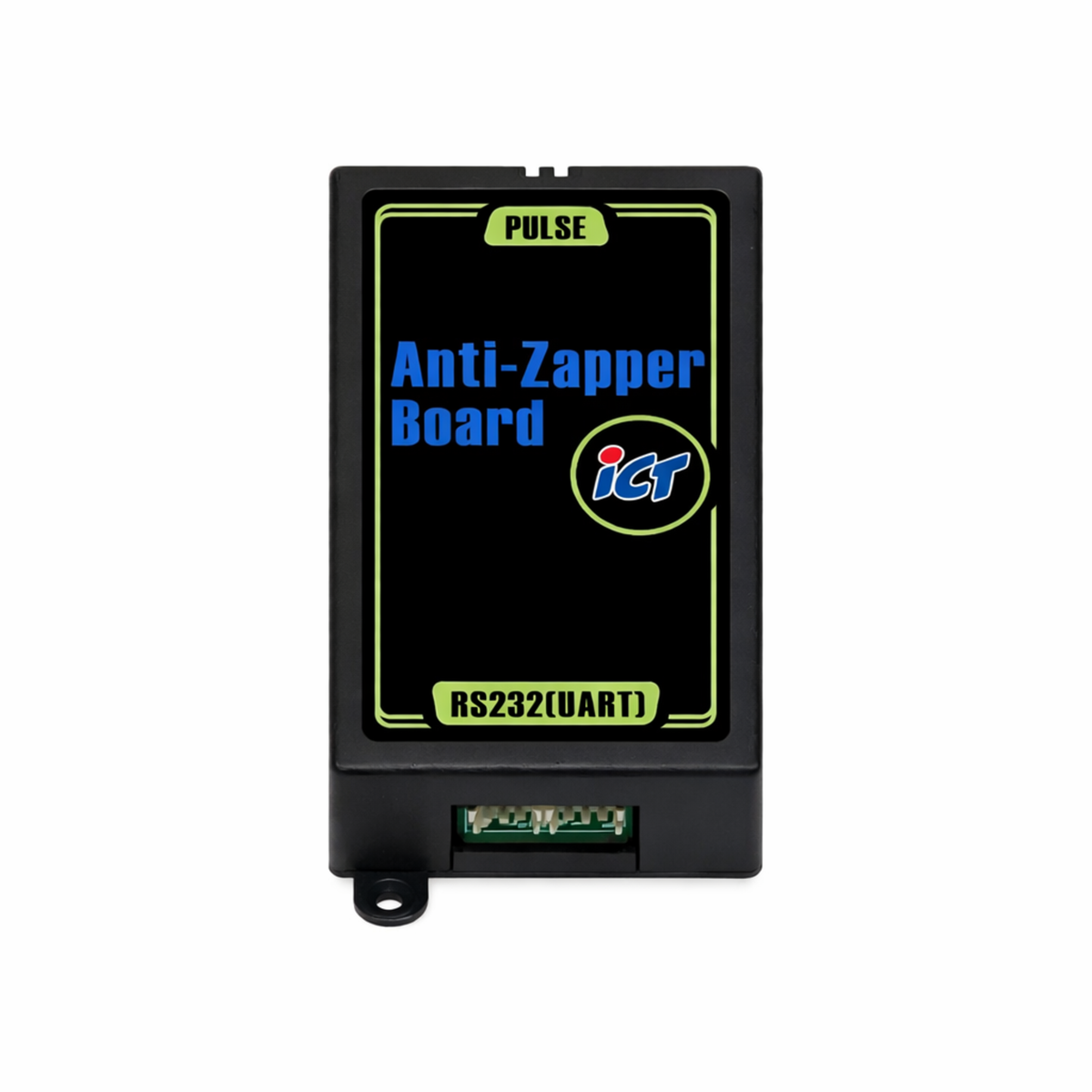

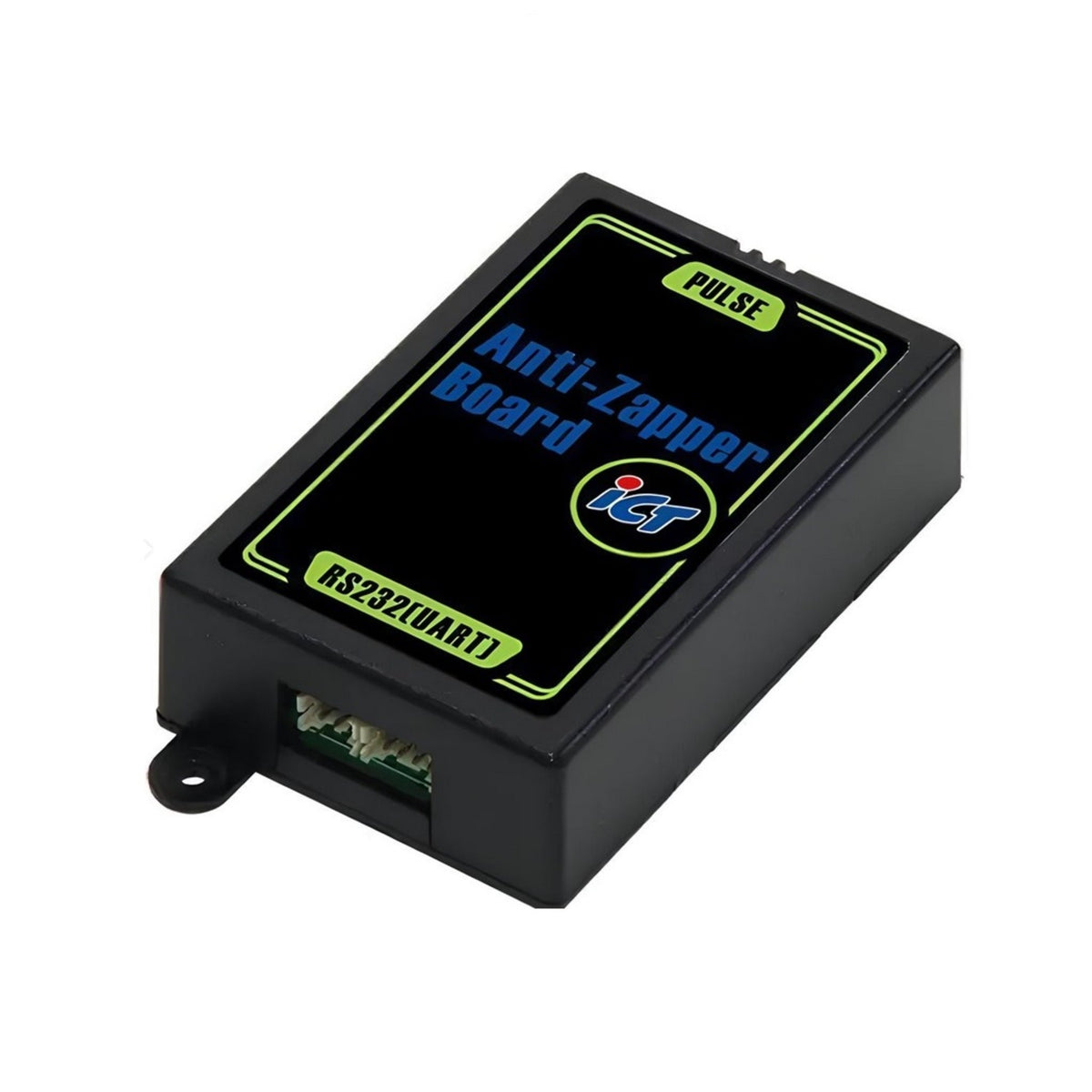

ICT AZB-16 Anti-Zapper Board — 12VDC RS232-to-Pulse Interface
The ICT AZB-16 is an anti-zapper board for vending and amusement equipment using an LX7-A pulse interface. It sits between the VMC and compatible ICT equipment, helping limit electromagnetic interference and zapper-related communication disruptions. E & D Trading supplies this new ICT component as an authorized distributor for OEM builders, route operators, and service technicians.
Specifications
- Manufacturer: ICT
- Model / SKU: AZB-16
- Product type: Anti-Zapper Board
- Input communication: RS232 (UART)
- Interface / protocol: Pulse
- Power supply: 12V DC
- Power consumption: Approximately 200 mA
- Included cable: Fanout cable
- Dimensions: 55 × 85 × 25 mm
- Operating temperature: 0°C to 60°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–95% RH, non-condensing
- Catalog voltage field: 110v
Compatible platforms
The AZB-16 is listed for ICT LX7-A systems and supports installations requiring pulse protocol integration, credit relay, and inhibit control signals.
Integration notes
Install the board between the system controller and compatible ICT device. The supplied fanout cable supports flexible wiring during service or equipment integration. Confirm the system wiring and required voltage before installation.
Ordering & support
E & D Trading provides the AZB-16 for replacement, retrofit, and production requirements. Volume quotes and freight coordination are available.
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Condition | New |
