Description

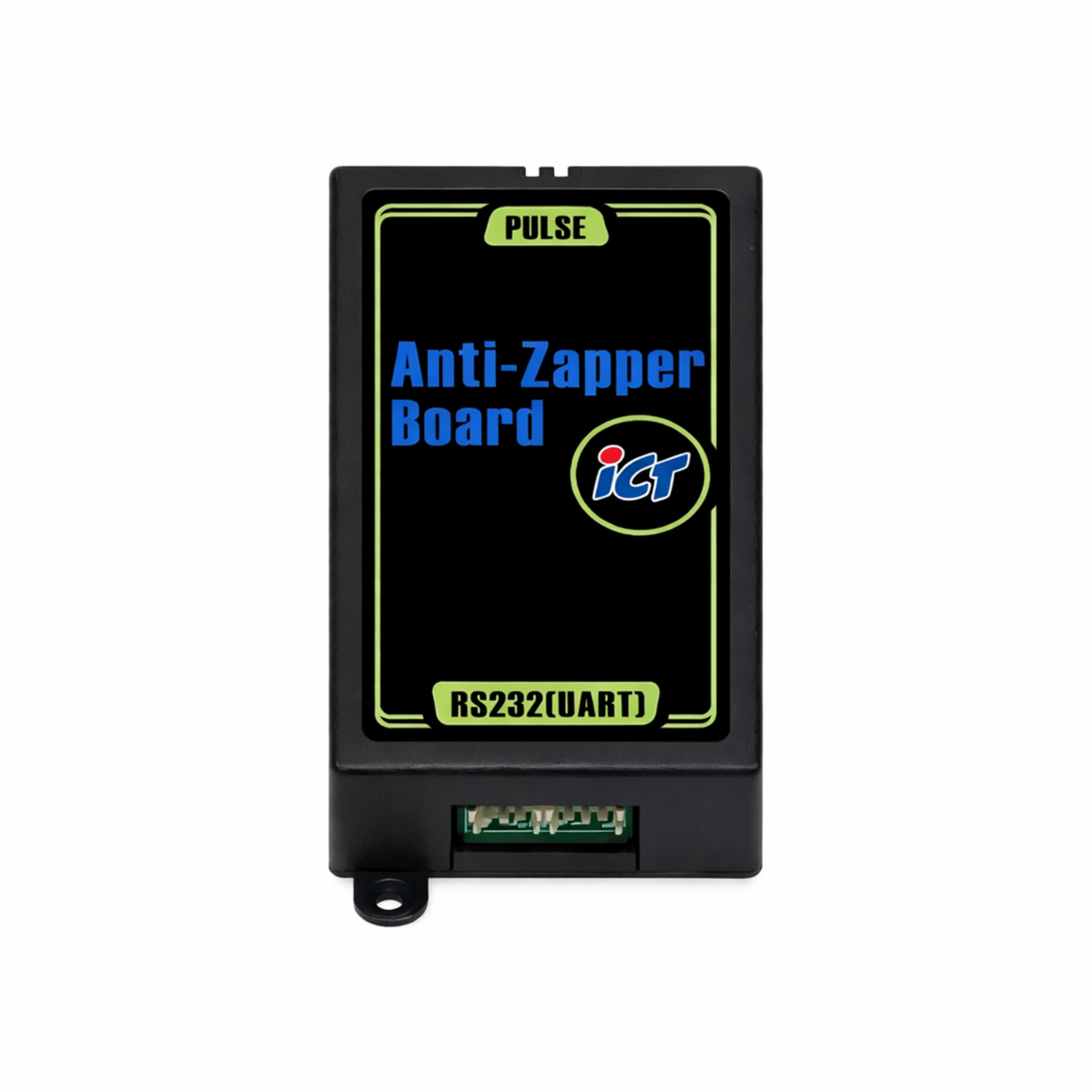

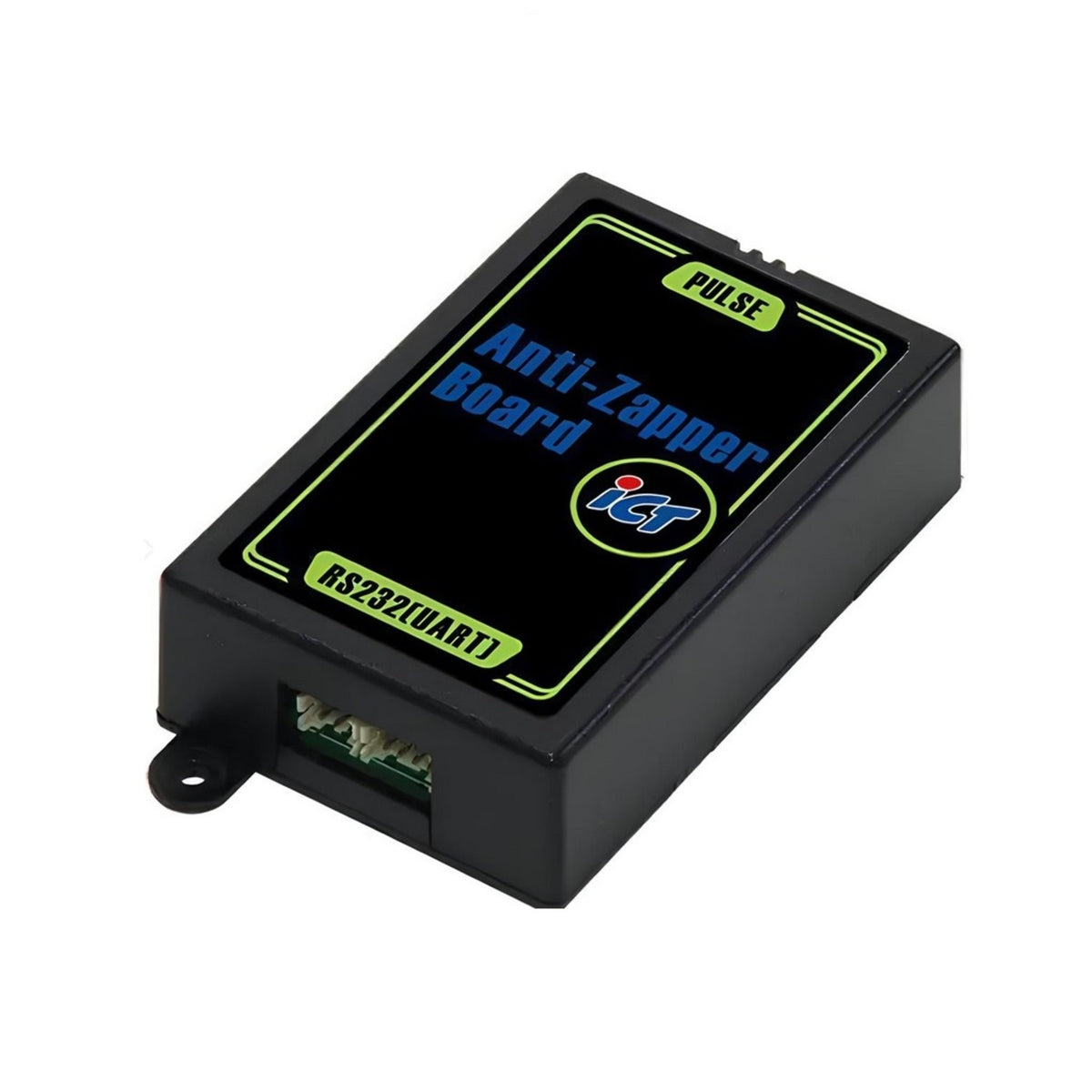

ICT AZB-22 Anti-Zapper Board — 12VDC RS232-to-Pulse Interface
The ICT AZB-22 is an anti-zapper board configured for ICT LX7 systems that require pulse-protocol communication. It operates from a 12V DC supply, converts RS232 (UART) signals to a pulse interface, and helps limit electromagnetic interference and zapper-related disruptions. E & D Trading supplies this ICT interface component to OEM builders, integrators, and route operators supporting compatible vending and amusement equipment.
Specifications
- Brand: ICT
- Model: AZB-22
- Product type: Anti-Zapper Board
- Input communication: RS232 (UART)
- Interface / protocol: Pulse
- Power supply: 12V DC
- Power consumption: Approximately 200 mA
- Cable: Fanout cable included
- Dimensions: 55 × 85 × 25 mm
- Operating temperature: 0°C to 60°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–95% RH, non-condensing
Compatible platforms
The AZB-22 is intended for ICT LX7 installations. It fits systems in which the VMC or system controller must communicate with compatible ICT equipment through a pulse interface.
Integration notes
Install the board between the VMC and the connected ICT device. The supplied fanout cable supports flexible wiring and carries the applicable credit relay and inhibit control signals. Confirm the system provides 12V DC power and verify wiring, connector orientation, and communication requirements before commissioning.
Ordering & support
E & D Trading is an authorized ICT reseller for the AZB-22. Contact the distributor for current availability, same-day volume quotes, and freight coordination for OEM or service requirements.
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Condition | New |
