Description

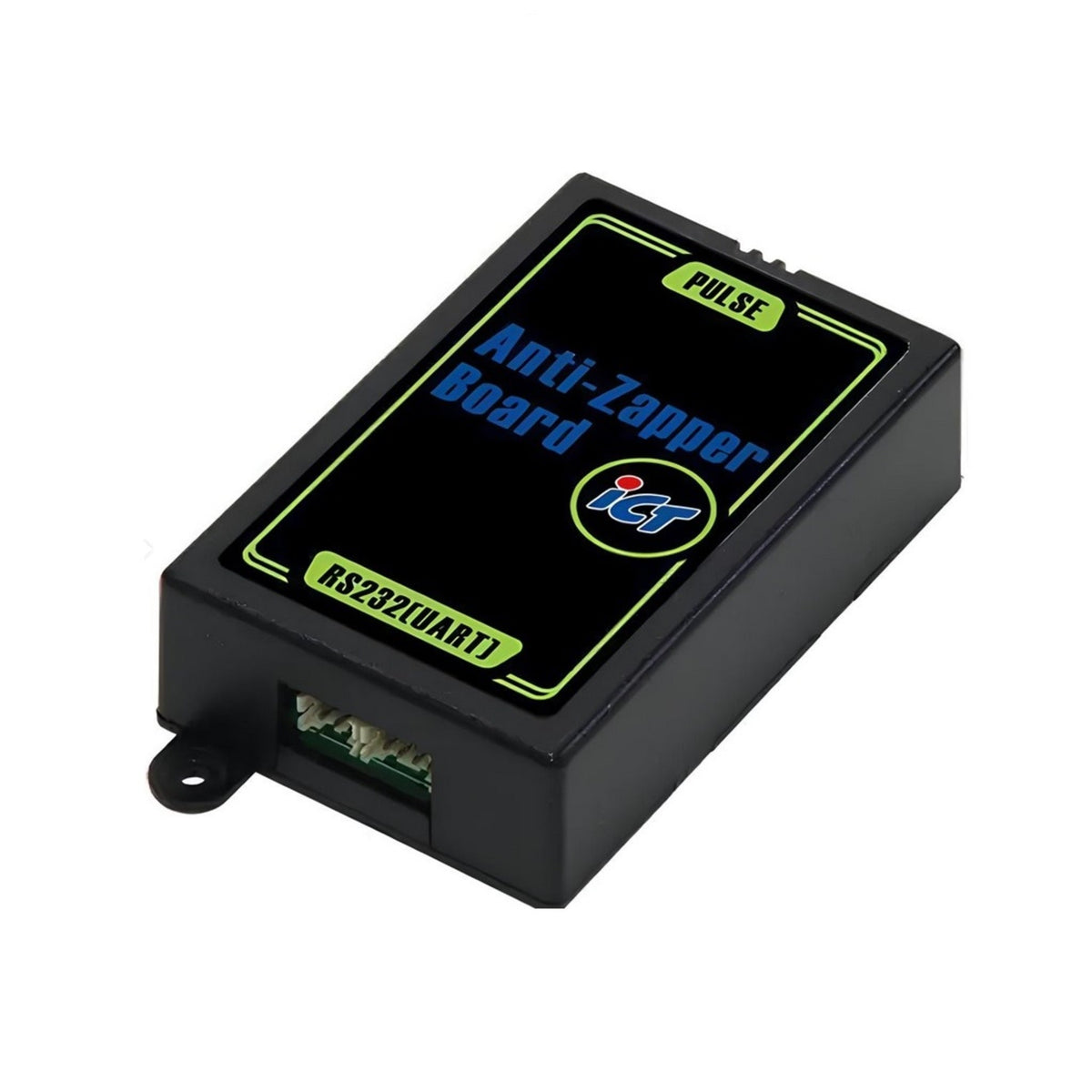

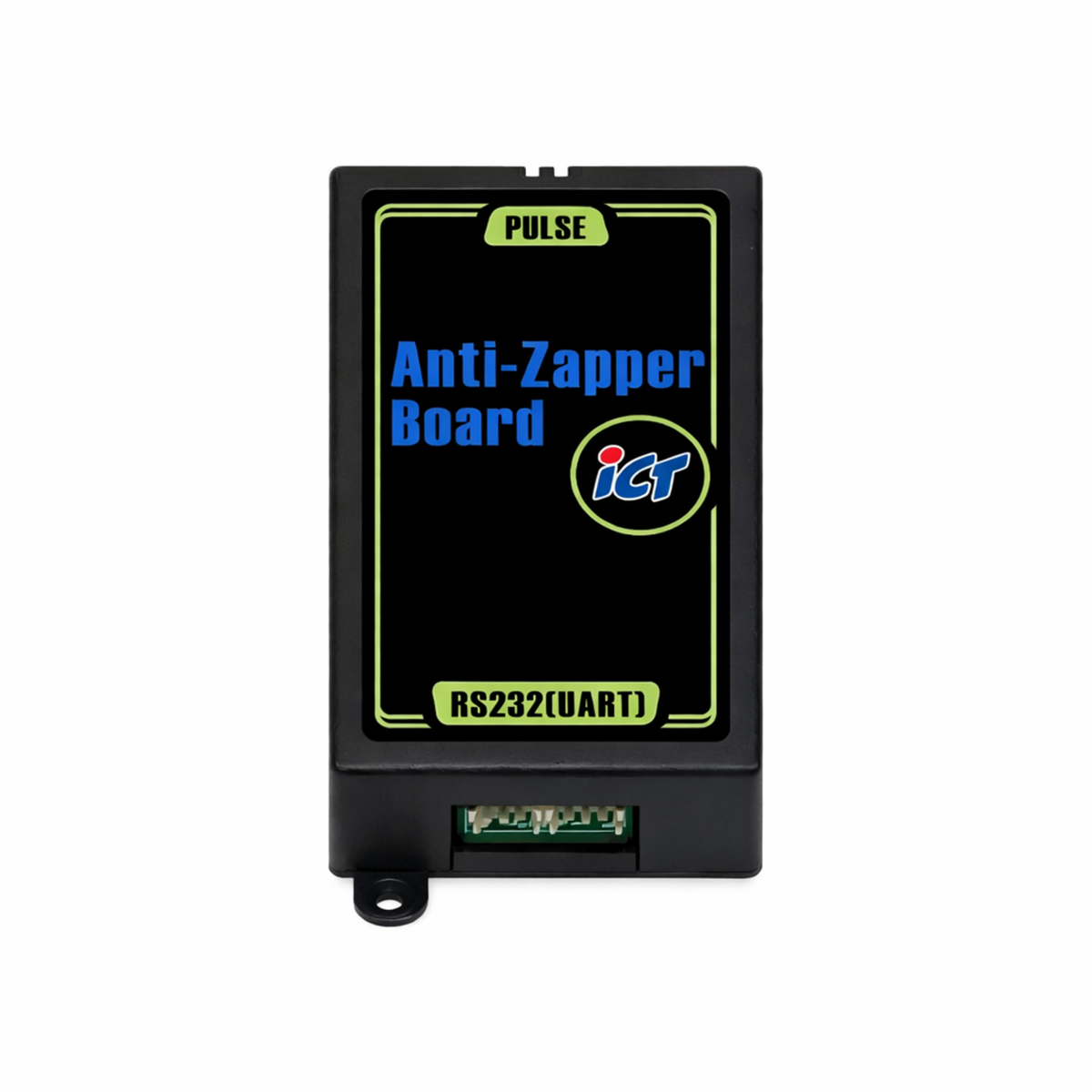

ICT AZB-2C Anti-Zapper Board — 12VDC Pulse Interface Protection
The ICT AZB-2C is a 12V DC anti-zapper board configured for LX7 systems and related vending or amusement equipment. It provides RS232 (UART) to Pulse interface conversion while helping shield connected electronics from electromagnetic interference and zapper-related disruptions. E & D Trading supplies this new ICT board as an authorized distributor for OEM builders, integrators, and route-service technicians.
Specifications
- Model: AZB-2C
- Product type: Anti-Zapper Board
- Brand: ICT
- Power supply: 12V DC
- Input communication: RS232 (UART)
- Interface / protocol: Pulse
- Power consumption: Approx. 200 mA
- Connector: 9-pin Molex
- Dimensions: 55 × 85 × 25 mm
- Operating temperature: 0°C to 60°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–95% RH, non-condensing
Compatible platforms
This board is compatible with ICT LX7 systems and is intended for vending and amusement applications requiring pulse protocol integration.
Integration notes
The AZB-2C installs between the system controller, or VMC, and compatible ICT devices. Its 9-pin Molex connection supports secure installation, while the board carries credit relay and inhibit control signals. It is built for stable communication and signal integrity in standard operating environments.
Ordering & support
E & D Trading provides the ICT AZB-2C for replacement, integration, and service requirements. Same-day volume quotes and freight coordination are available.
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Condition | New |
