Description

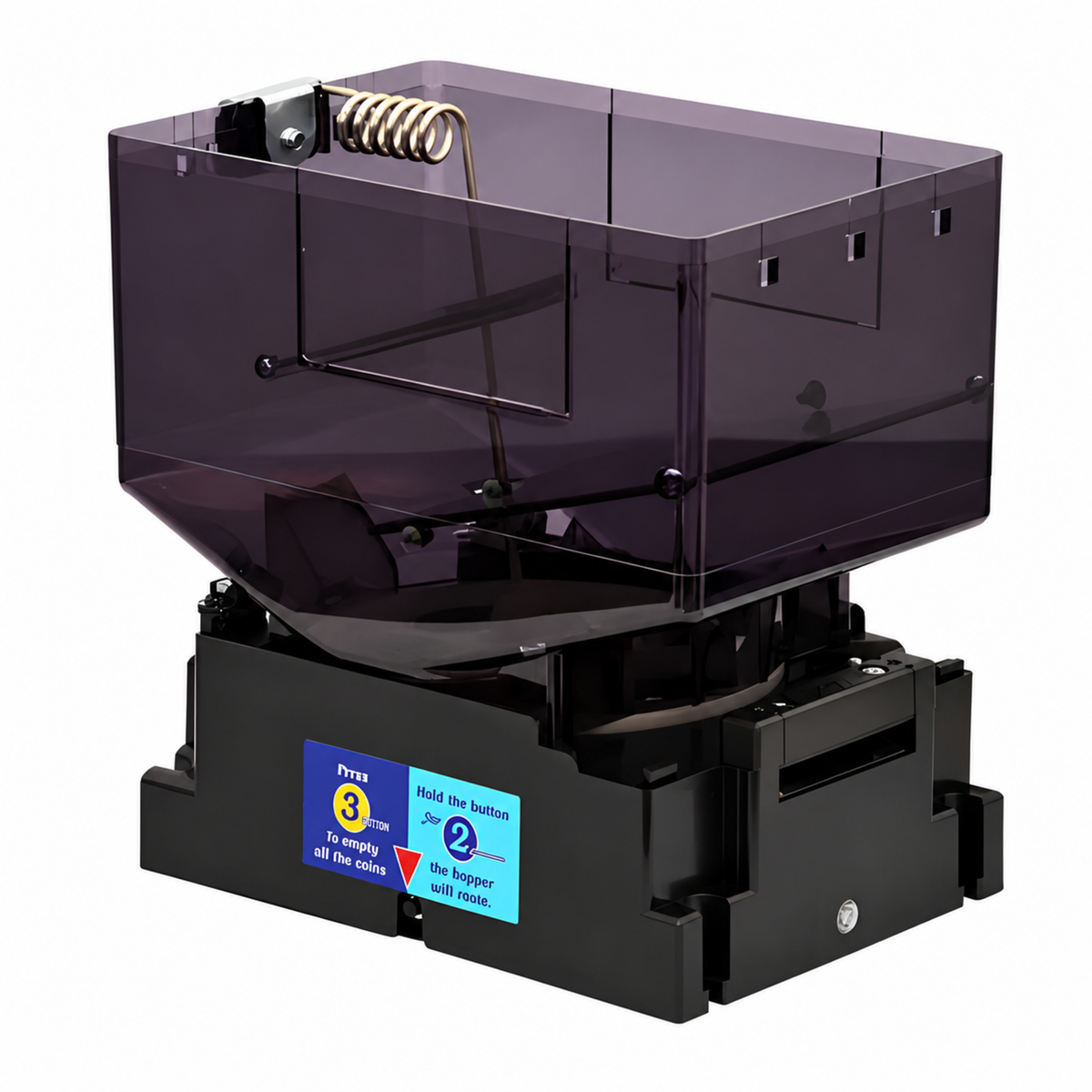

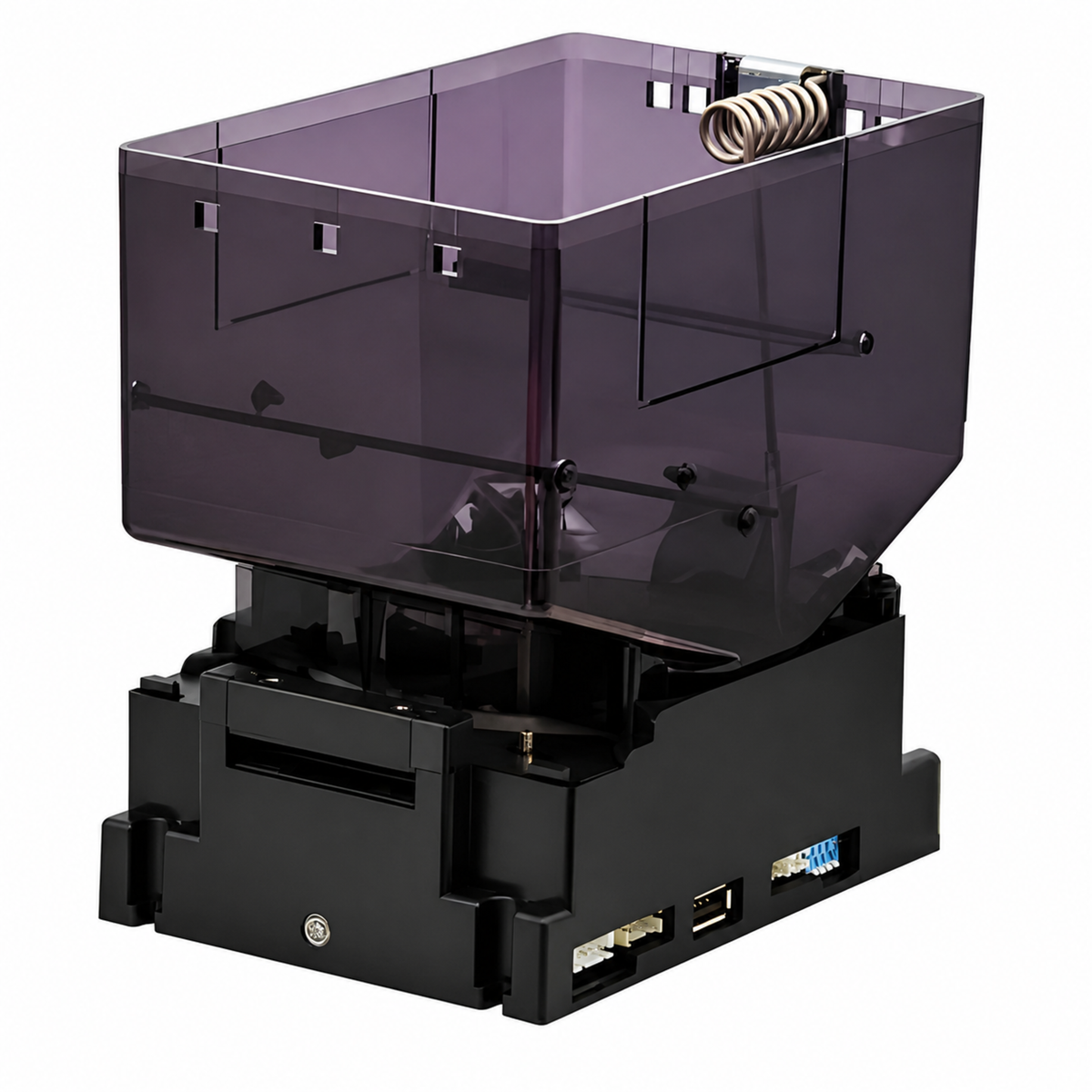

ICT Leonid-EMH-FR5RA Enhance Mini Hopper — 12V–24V Coin Dispenser
The ICT Leonid-EMH-FR5RA is an Enhance Mini Hopper from the ICT Leonid-EMH Series, configured for coin dispensing in vending and automated payment equipment. Its multi-interface design supports ccTalk, Pulse, Hopper, ICT, and Red Flag systems, allowing OEM builders and route operators to match the hopper to different control architectures. E & D Trading supplies this model as an authorized ICT reseller for equipment integration, replacement, and service requirements.
Specifications
- Model: ICT Leonid-EMH-FR5RA
- Series: ICT Leonid-EMH Series
- Power: 12V–24V DC
- Interfaces: ccTalk, Pulse, Hopper, ICT, and Red Flag
- Approximate capacity: 500 coins
- Coin diameter: 22.5mm–28mm
- Coin thickness: 1.6mm–2.4mm
- Dispensing rate: 6–7 coins per second
- Counting: Dual sensor coin counting
- Coin handling: Adjustable coin size using interchangeable payout plates
- Operating temperature: 5°C to 50°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–85% RH, non-condensing
Compatible platforms
The hopper fits vending machines and automated payment systems that provide a compatible 12V–24V DC supply and one of its supported interface or control modes. Interchangeable payout plates allow the unit to be configured for supported coin sizes within the stated diameter and thickness ranges.
Integration notes
System designers should verify the available supply voltage, interface selection, coin dimensions, and payout plate before installation. Dual sensors monitor dispensed coins for consistent counting, while the 6–7 coins-per-second rate supports controlled payout operation. The unit is arranged for straightforward installation and maintenance.
Ordering & support
E & D Trading provides the ICT EMH-FR5RA for new equipment builds, hopper replacement, and field service inventory. Same-day quotes are available for volume requirements, with freight coordination available for integrators and route operators.
Technical Specifications
| Brand | ICT |
| Condition | New |
