Description

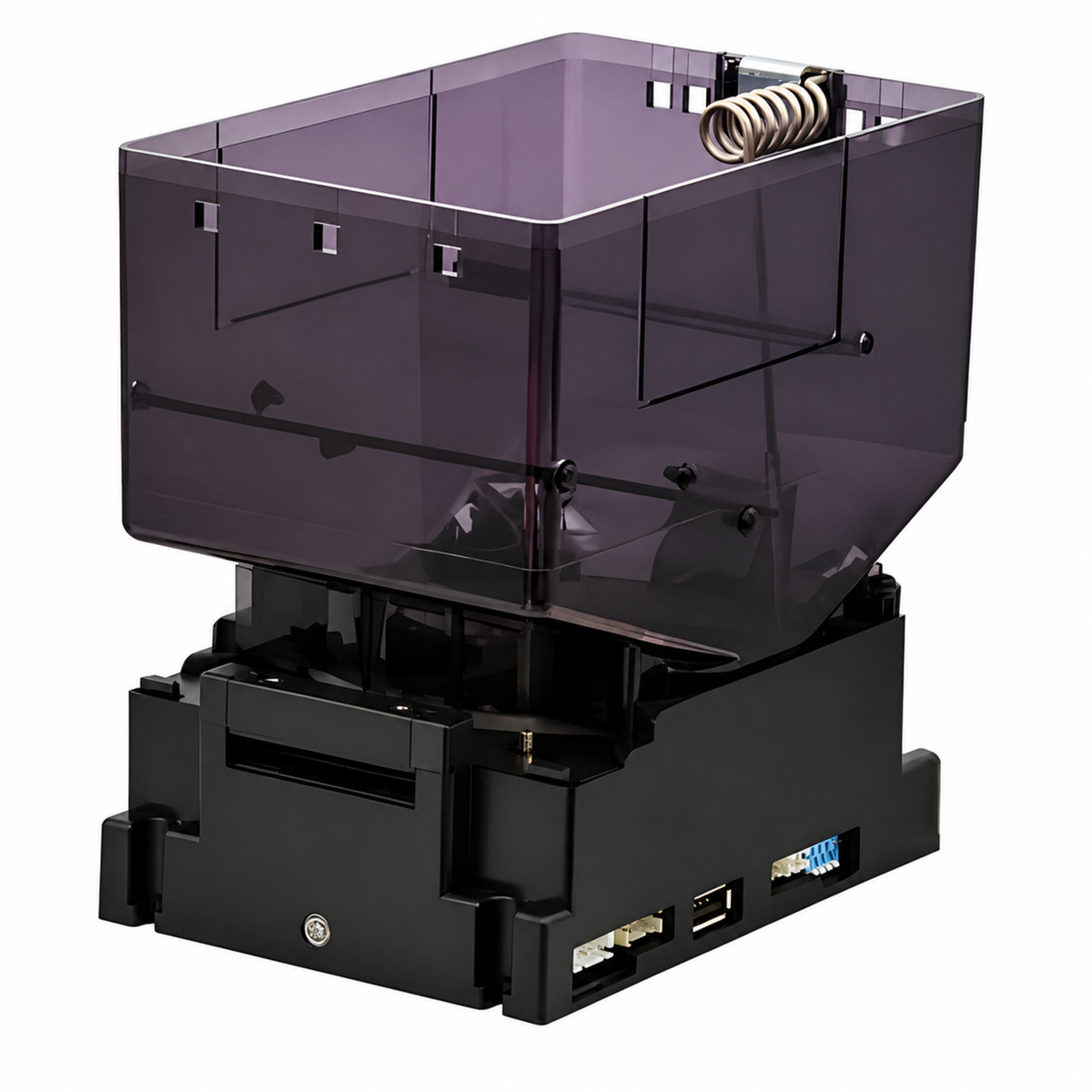

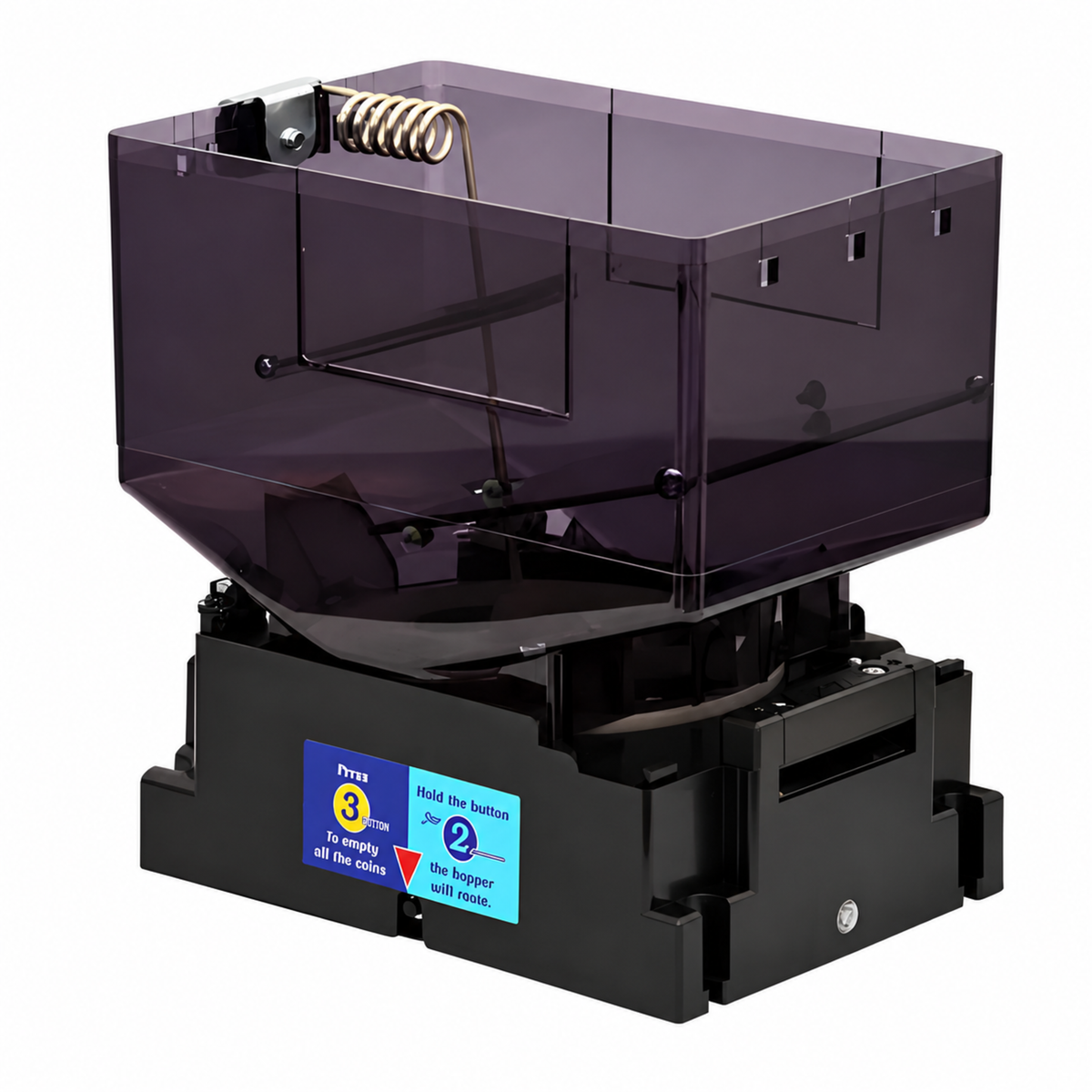

ICT Leonid-EMH-FR5RA-US4 Coin Hopper — 500-Coin US Quarter Dispensing Platform
The ICT Leonid-EMH-FR5RA-US4 is an Enhance Mini Hopper from the ICT Leonid-EMH Series, configured to dispense US quarters in vending and automated payment equipment. Its 12V–24V DC operating range and support for ccTalk, Pulse, Hopper, ICT, and Red Flag interfaces allow integration across multiple machine control architectures. E & D Trading supplies this model as an authorized ICT distributor and reseller for OEM builders, system integrators, and route operators requiring a serviceable coin payout component.
Specifications
- Manufacturer: ICT
- Model / SKU: Leonid-EMH-FR5RA-US4 / EMH-FR5RA-US4
- Product type: Coin hopper
- Series: ICT Leonid-EMH Series
- Currency and denomination: United States, US quarters
- Coin capacity: Approximately 500 coins
- Power supply: 12V–24V DC
- Supported interfaces: ccTalk, Pulse, Hopper, ICT, and Red Flag
- Dispensing rate: 6–7 coins per second
- Counting system: Dual sensor coin counting
- Operating temperature: 5°C to 50°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–85% RH, non-condensing
- Configuration: Pre-configured for US quarters
Compatible platforms
This hopper is intended for vending machines, automated payment systems, and other coin-dispensing equipment built around a compatible 12V–24V DC supply and one of its supported control interfaces. The US-quarter configuration suits applications that return or pay out United States quarters without requiring additional denomination adjustment.
Integration notes
Confirm the host machine’s voltage, interface protocol, connector wiring, and available mounting space before installation. The dual sensor arrangement supports accurate payout counting, while the 6–7 coins-per-second rate provides consistent dispensing. Keep operation within the stated temperature and non-condensing humidity limits, and follow the equipment manufacturer’s service procedures for cleaning and maintenance.
Ordering & support
E & D Trading provides the ICT EMH-FR5RA-US4 for replacement, retrofit, and new equipment builds. Same-day quotes are available for volume requirements, with freight coordination available for commercial orders.
Technical Specifications
| Brand | ICT |
| Condition | New |
