Description

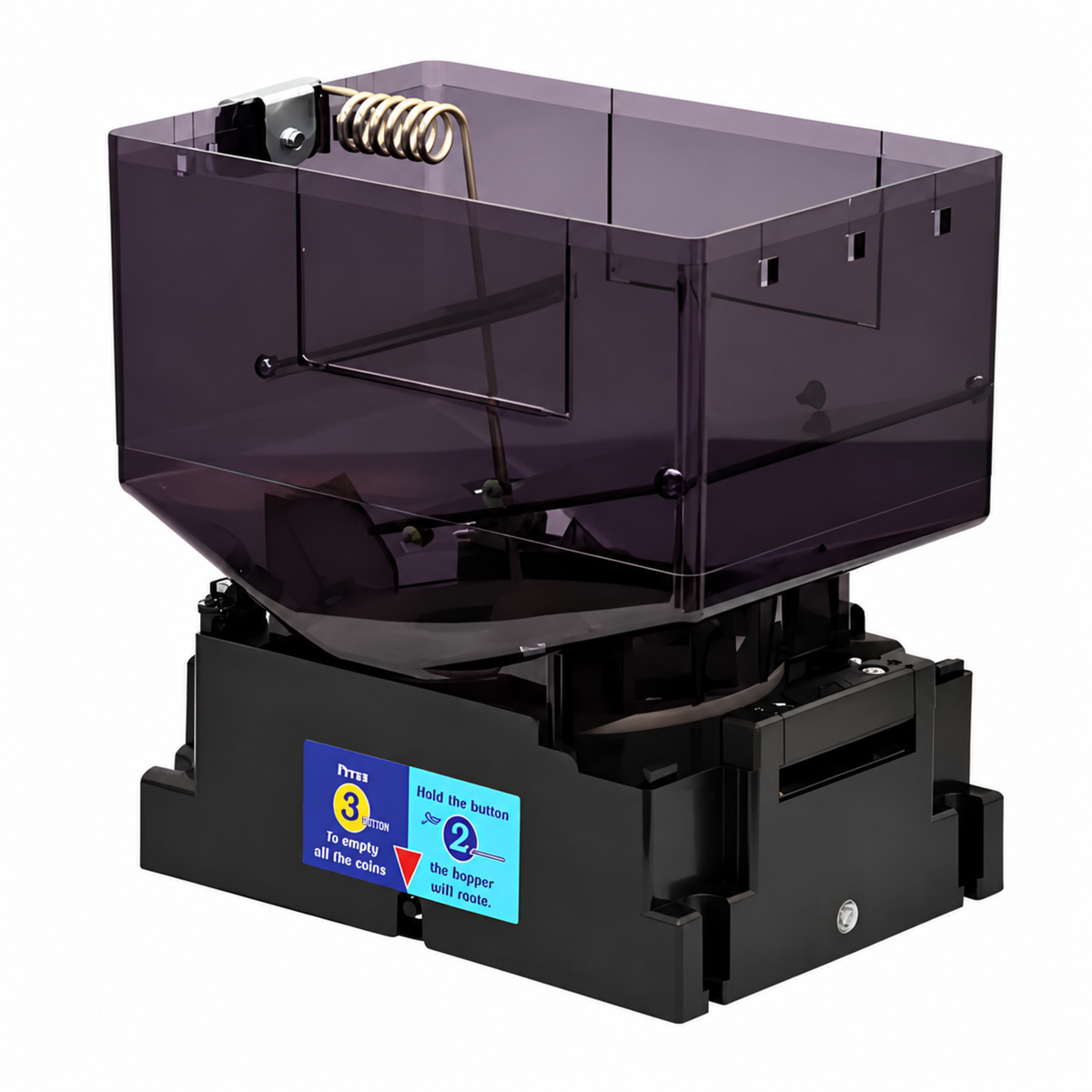

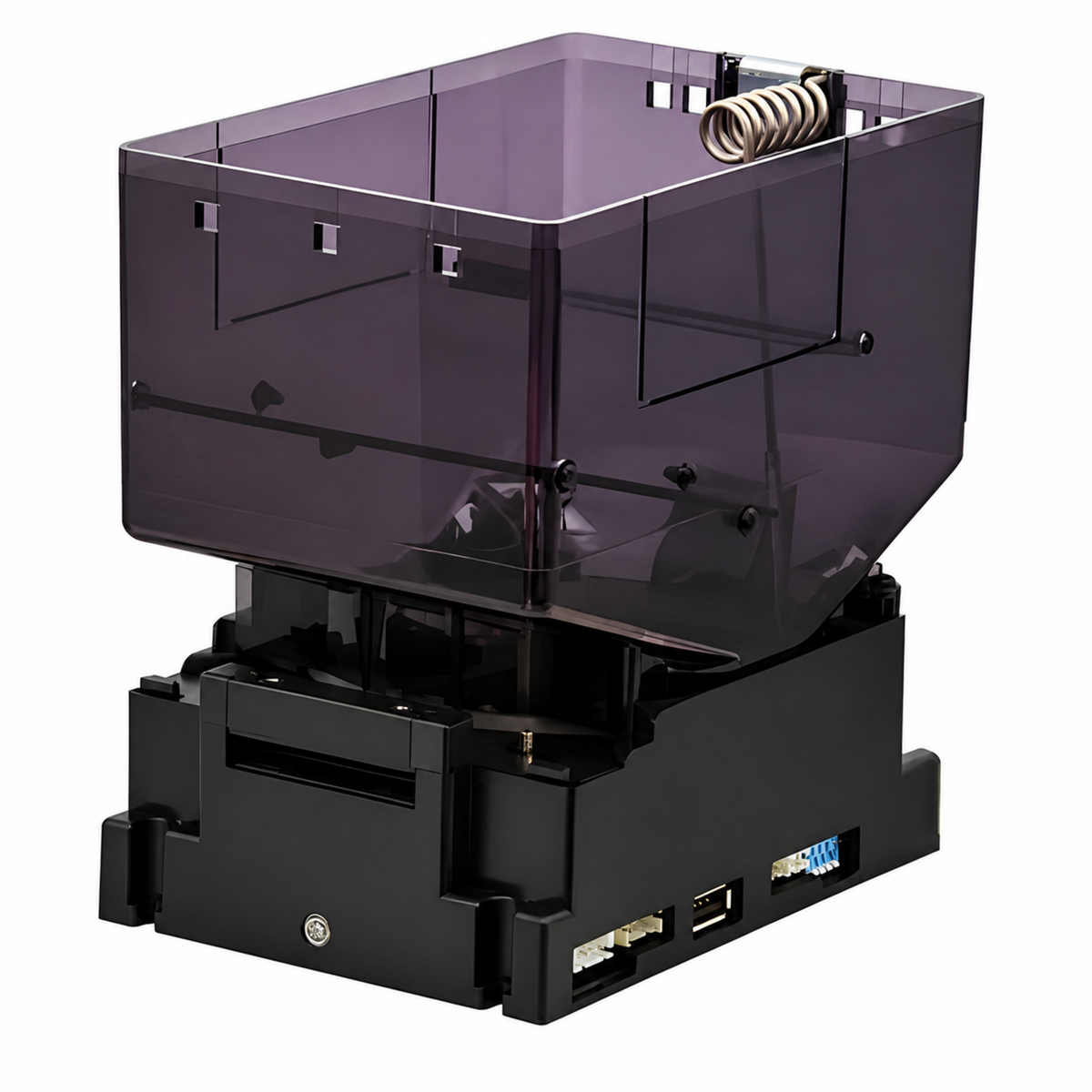

ICT Leonid-EMH-FR5RB Coin Hopper — 12–24V Automated Coin Dispenser
The ICT Leonid-EMH-FR5RB is an Enhance Mini Hopper from the Leonid-EMH Series, configured for coin dispensing in vending equipment and automated payment systems. Its 12V–24V DC supply range and broad interface support make it suitable for OEM builders, system integrators, and route operators working with varied control platforms. E & D Trading supplies this model as an authorized ICT distributor and reseller for equipment installations, replacements, and service requirements.
Specifications
- Model: ICT Leonid-EMH-FR5RB
- Series: ICT Leonid-EMH Series
- Power supply: 12V–24V DC
- Interfaces: ccTalk, Pulse, Hopper, ICT, and Red Flag
- Approximate capacity: 500 coins
- Coin diameter: 20mm–23mm
- Coin thickness: 1.6mm–2.2mm
- Coin handling: Adjustable format using interchangeable payout plates
- Dispensing rate: 6–7 coins per second
- Counting method: Dual sensor coin counting
- Operating temperature: 5°C to 50°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–85% RH, non-condensing
Fitment
This hopper is intended for vending machines and automated payment equipment requiring controlled coin payout. Its interchangeable payout-plate arrangement accommodates coin diameters from 20mm to 23mm, while the listed interface options support integration with compatible ccTalk, Pulse, Hopper, ICT, and Red Flag control systems.
Integration notes
The dual sensor arrangement monitors coin movement for consistent payout counting. The unit dispenses approximately 6–7 coins per second and holds approximately 500 coins. Confirm the required payout plate, coin thickness, supply voltage, and host interface before installation. The construction supports straightforward installation and routine maintenance within the stated environmental limits.
Ordering & support
E & D Trading provides the ICT Leonid-EMH-FR5RB for new builds, field replacement, and equipment refurbishment. Same-day quotes are available for volume requirements, with freight coordination available for commercial orders.
Technical Specifications
| Brand | ICT |
| Condition | New |
