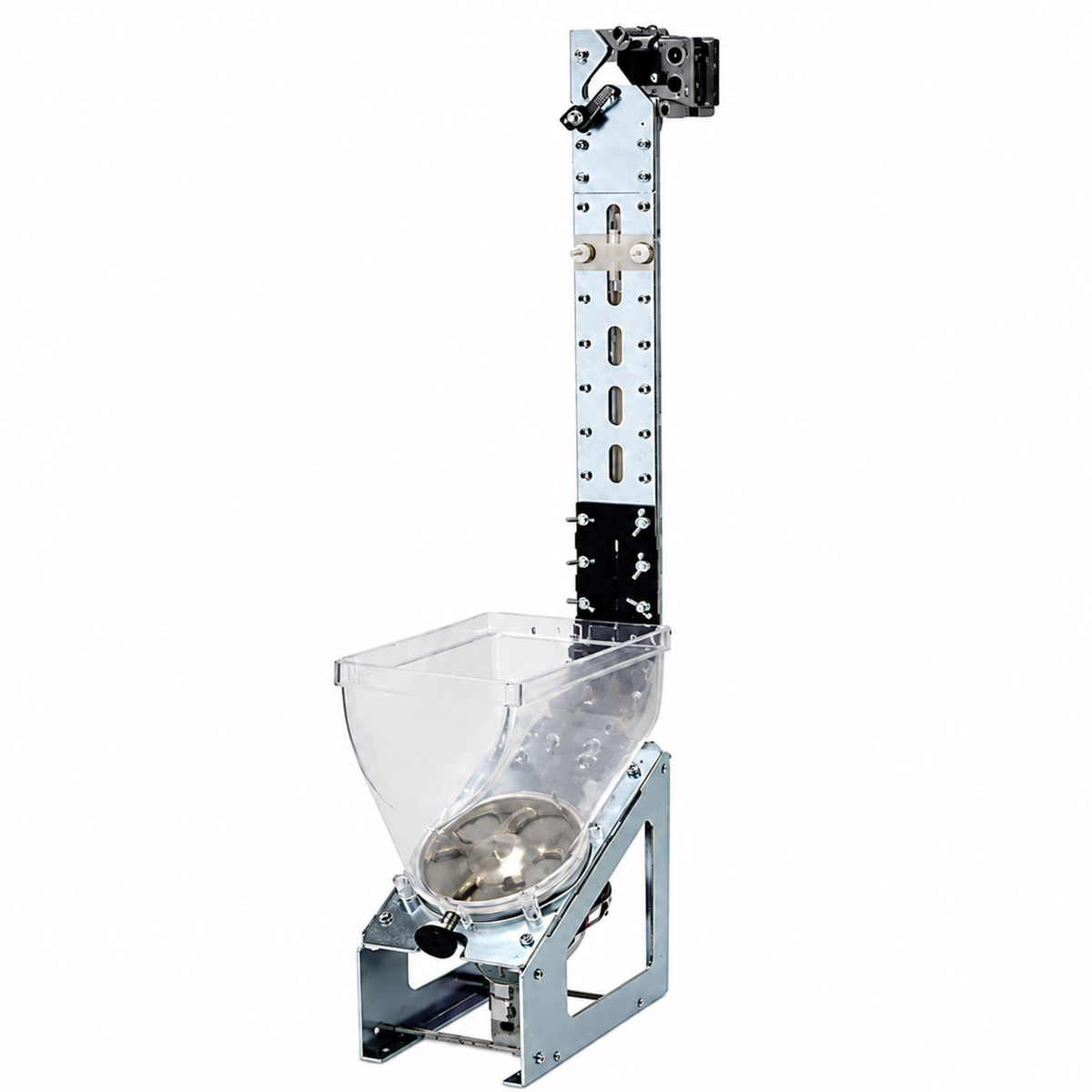

ICT Leonid-KMH-249HANRO Coin Hopper — 24V Right-Facing Payout Unit
The ICT Leonid-KMH-249HANRO is a Leonid-KMH Series coin hopper configured for 24V DC vending and amusement equipment. Its non-reversible motor, right-facing orientation, and hopper mode interface support consistent coin dispensing in machines that require a dedicated payout assembly. E & D Trading supplies this ICT unit as an authorized reseller for OEM builders, equipment integrators, and route operators.
Specifications
- Manufacturer: ICT
- Model / SKU: Leonid-KMH-249HANRO / KMH-249HANRO
- Series: ICT Leonid-KMH Series
- Power supply: 24V DC, operating range 21.6–26.4V
- Interface: Hopper mode
- Coin capacity: Approximately 900–1000 coins
- Motor: Non-reversible
- Orientation: Right-facing
- Relay output: Normally open
- Counting system: Single optical sensor
- Dispensing rate: 6–7 coins per second
- Supported coin diameter: 23mm–26mm
- Supported coin thickness: 1.7mm–1.9mm
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 70°C
- Humidity: 0%–85% RH, non-condensing
- Condition: New
Compatible platforms
This hopper is intended for coin-operated vending machines, amusement equipment, and other systems built around a hopper mode payout interface. The right-facing configuration is suited to installations where the machine layout requires that dispensing orientation.
Integration notes
Confirm that the host equipment provides 24V DC within the specified 21.6–26.4V range before installation. The non-reversible drive is intended for one-direction payout operation. Coin inventory should remain within the stated 23mm–26mm diameter and 1.7mm–1.9mm thickness limits. The normally open relay output and single optical counting sensor should be matched to the machine controller during wiring and service.
Ordering & support
E & D Trading can provide same-day quotes for volume requirements and coordinate freight for domestic or project shipments. Request the ICT KMH-249HANRO by SKU when ordering or confirming replacement compatibility.
Technical Specifications
| Brand | ICT |
| Condition | New |
