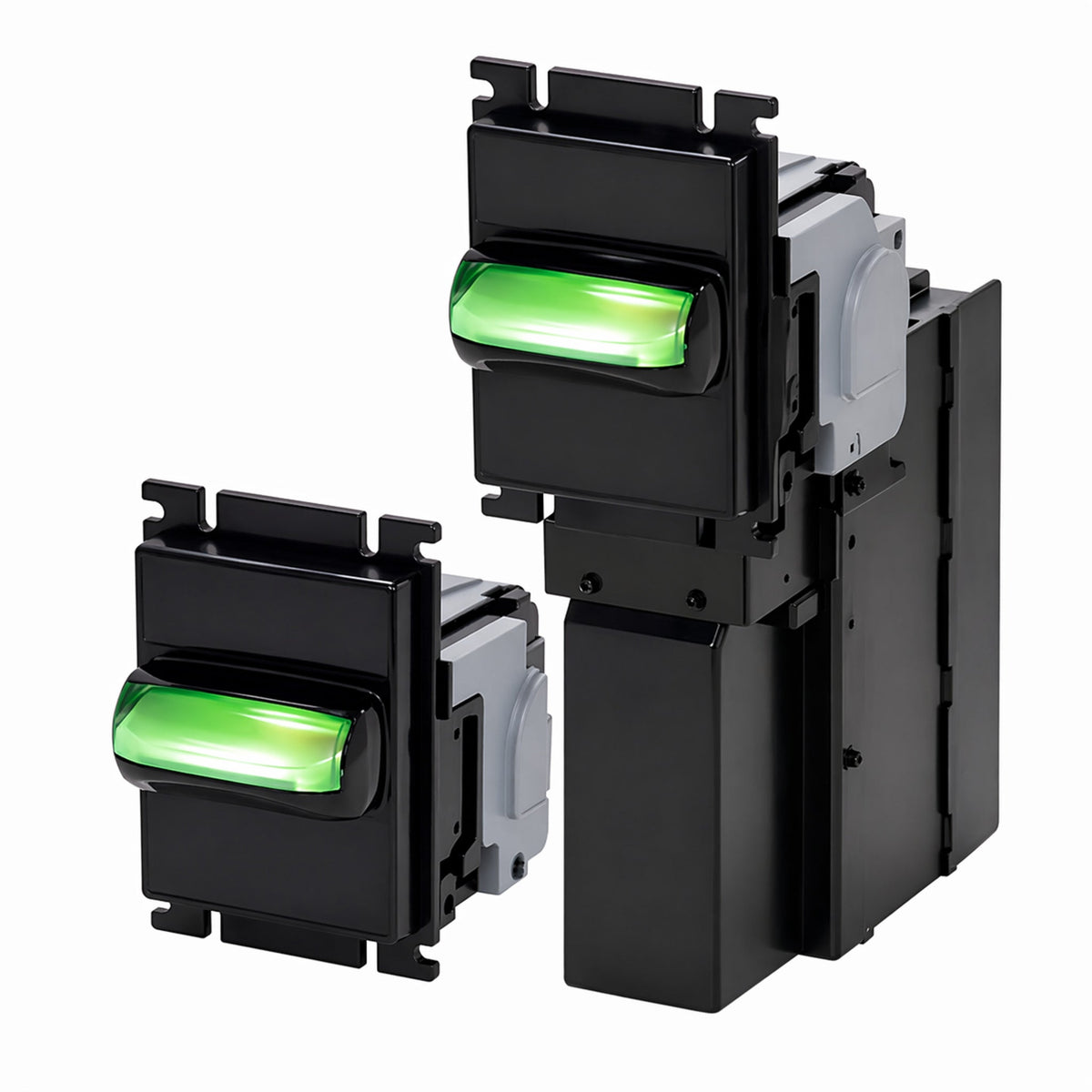

ICT L709CO601iDS Bill Validator 12V RS232 71mm Stackerless Colombian Currency

ICT L709CO601iDS Bill Validator — 12V RS232 Validator for Colombian Currency

The ICT L709CO601iDS is an L Series bill validator configured for Colombian peso acceptance in vending, gaming, amusement, and other automated payment equipment. This new, stackerless unit operates from 12V DC and communicates through the RS232 A0 interface, with Pulse listed as its supported protocol. E & D Trading supplies the validator as an authorized distributor for OEM builders, equipment integrators, and route operators requiring a replacement or production-ready bill acceptance assembly.

Specifications

• Manufacturer: ICT
• SKU: L709CO601iDS
• Model: L70
• Currency: Colombian currency; COP denominations of 1000, 2000, 5000, 10000, 20000, 50000, and 100000
• Power: 12V DC, with an allowable range of 10.8V–16V DC
• Interface: RS232 A0
• Supported protocol: Pulse
• Configuration: Stackerless, with no internal cashbox; external cash handling equipment is required
• Bezel: 71mm O Type bezel; listed bezel type is Standard
• Bill insertion: Four-way
• Acceptance rate: 96% or higher
• Transaction time: Approximately 3 seconds to stack
• Operating temperature: 0°C to 50°C
• Humidity: 30%–85% RH, non-condensing
• Recycler: False

Compatible platforms

This validator is intended for compatible vending machines, gaming equipment, amusement systems, and other payment platforms built around a 12V supply, RS232 A0 communication, and the specified 71mm O Type bezel. Its stackerless format suits installations that route accepted notes to an external cashbox or cash management assembly.

Integration notes

The L709CO601iDS uses a new-generation verification system, auto-calibration, and anti-string technology to support controlled note acceptance. Four-way insertion allows bills to enter in any orientation, while fast bill processing and firmware upgrade support simplify service work. Confirm the host equipment’s 12V DC output, RS232 A0 wiring, Pulse protocol requirements, bezel clearance, and external cashbox arrangement before installation.

Ordering & support

E & D Trading provides this new ICT validator for direct replacement and equipment integration. Same-day volume quotes and freight coordination are available for OEM, route, and service requirements.
