Description

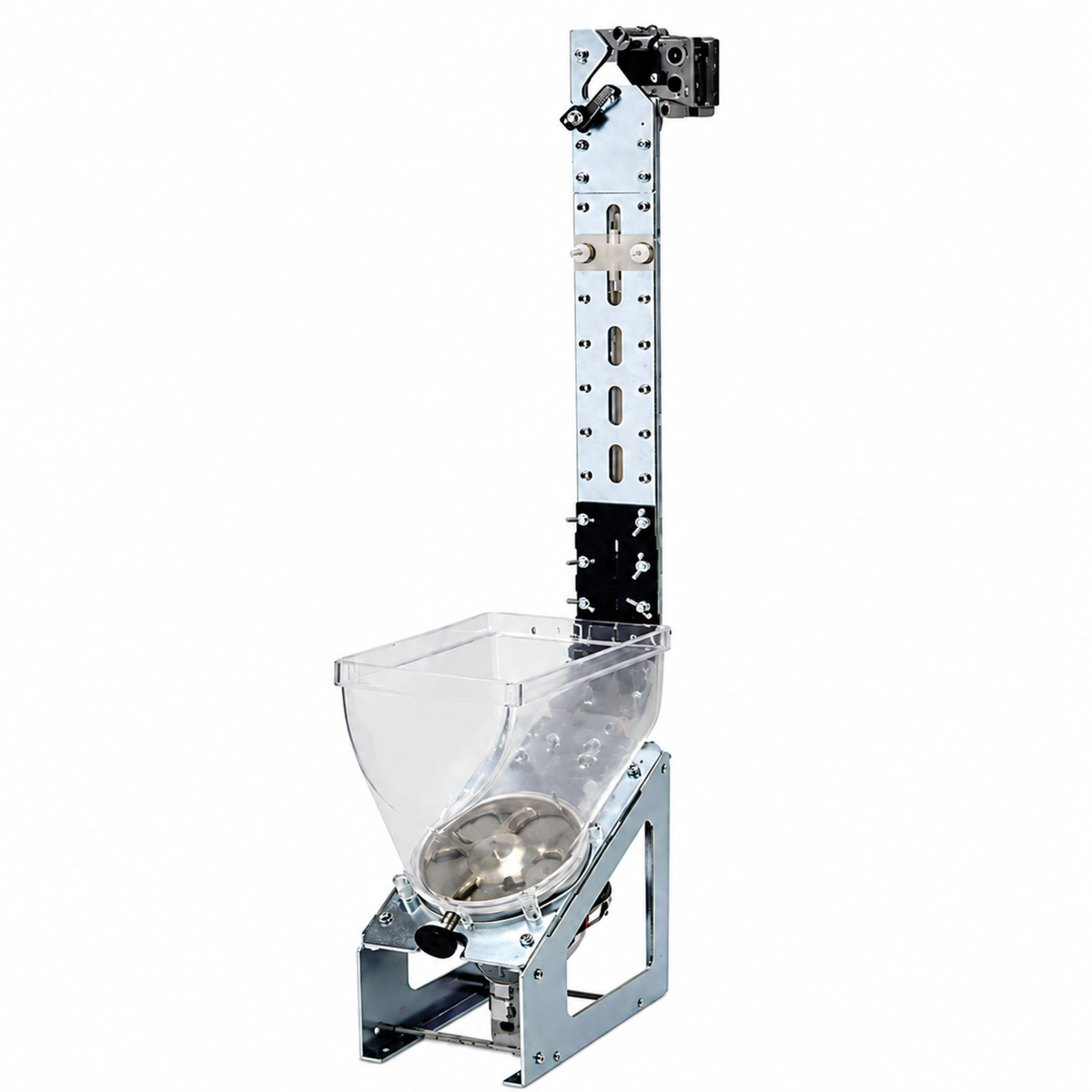

ICT KMH-249HANLO Coin Hopper — 24V Left-Facing Leonid-KMH Model
The ICT KMH-249HANLO is a 24V DC coin hopper configured for dependable payout in vending and amusement equipment. Its Leonid-KMH platform uses a hopper mode interface, non-reversible motor, and optical coin counting for consistent operation. E & D Trading supplies this new ICT unit to OEM builders, system integrators, and route operators requiring a factory-specified replacement or installation component.
Specifications
- Manufacturer: ICT
- Series: Leonid-KMH
- Model / SKU: KMH-249HANLO
- Power supply: 24V DC; operating range 21.6–26.4V
- Interface: Hopper mode
- Coin capacity: Approximately 900–1000 coins; nominally approximately 900 coins
- Motor: Non-reversible
- Orientation: Left-facing
- Output: Normally open relay
- Counting system: Single optical sensor
- Dispensing rate: 6–7 coins per second
- Construction: Metal and plastic
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 70°C
- Humidity: 0%–85% RH, non-condensing
- Condition: New
Fitment
This hopper is intended for vending machines, amusement machines, and other coin-operated systems using a 24V DC hopper-mode connection. The left-facing housing is suited to equipment layouts that position the payout direction and service access on the left side.
Integration notes
Confirm the host machine supplies 24V DC within the stated 21.6–26.4V range and is compatible with a normally open relay output. The non-reversible motor requires installation in the intended payout orientation. The single optical sensor counts dispensed coins at approximately 6–7 coins per second; allow suitable clearance for loading, payout, and routine maintenance.
Ordering & support
E & D Trading is an authorized ICT distributor and reseller. The KMH-249HANLO is available for equipment builds, service replacement, and volume requirements. Same-day quotes on volume orders and freight coordination are available.
Technical Specifications
| Brand | ICT |
| Condition | New |
