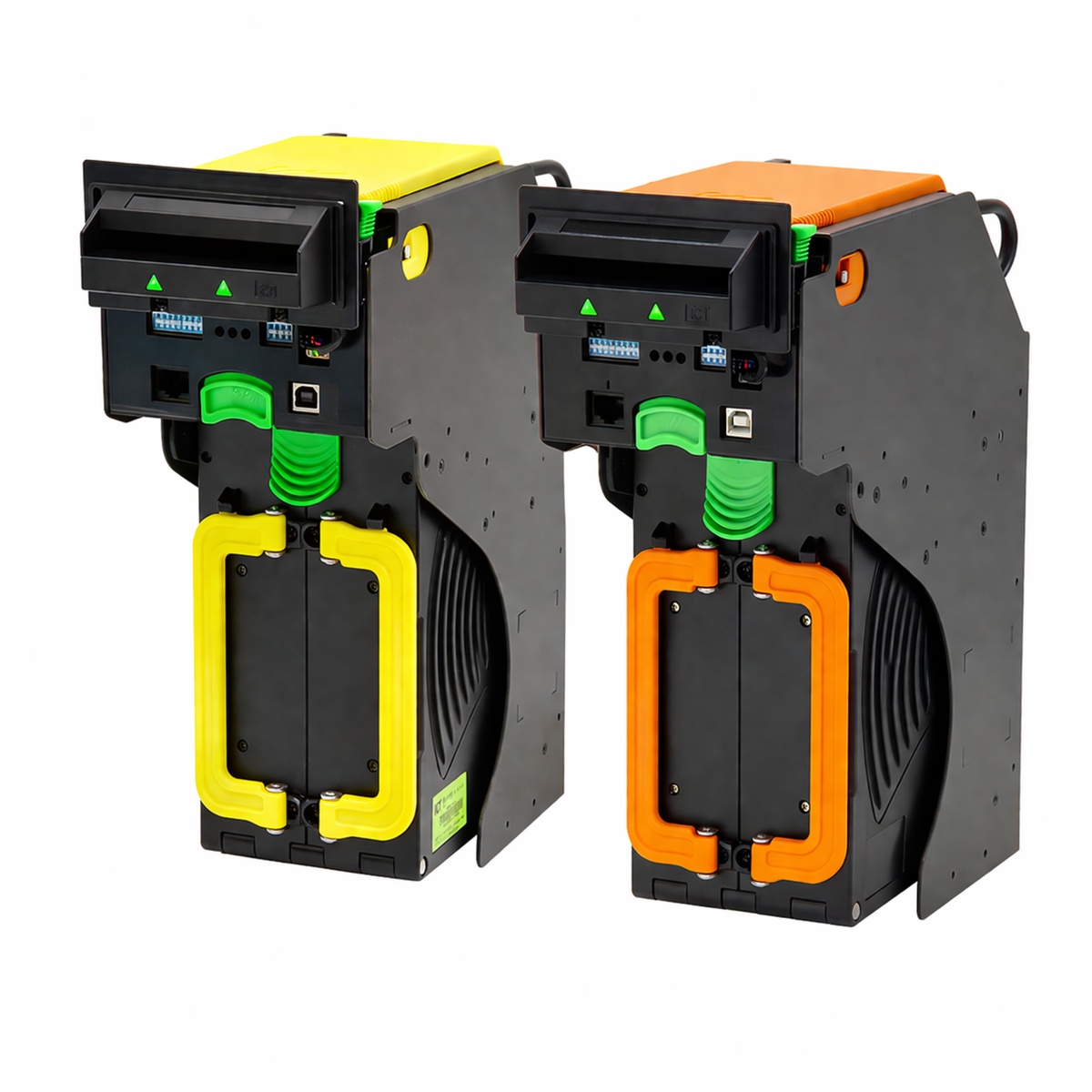

ICT NBA-D104-5FU-MX5 Bill Validator 12–24V Pulse RS232 500 Note Mexico Currency

ICT NBA-D104-5FU-MX5 Bill Validator — 12–24V Mexico Currency Acceptor

The ICT NBA-D104-5FU-MX5 is an NBA Series bill validator configured for Mexican peso handling in vending equipment, gaming machines, and other automated payment systems. Its optical validation platform accepts bills from four insertion directions and supports Pulse, RS232, and ICT protocol communication. E & D Trading supplies this 500-note configuration to OEM builders, route operators, and service technicians requiring a flexible replacement or integration-ready validator.

Specifications

• Manufacturer: ICT
• Model: NBA-D104-5FU-MX5; NBA Series
• Currency: Mexican peso (MXN / MXP)
• Denominations accepted: MXP: 20, 50, 100, 200, 500
• Communication: Pulse, RS232, and ICT protocol
• Power input: 12V–24V DC, with an operating range of 11.4V–25.2V DC
• Stacker capacity: Approximately 500 bills
• Accepted bill width: 62mm–83mm
• Acceptance rate: 96% or higher
• Transaction time: Approximately 5 seconds to stack
• Operating temperature: 0°C to 50°C
• Humidity: 30%–95% RH, non-condensing
• Validation system: High-security optical detection with improved optical sensing
• Additional functions: Barcode reading for coupon or ticket support, automatic bill centering, and fast software upgrade support
• Cashbox options: Double-lock cashbox or slide-button cashbox

Compatible platforms

This validator fits vending machines, gaming equipment, and automated systems that require Mexican currency acceptance. The 62mm–83mm entry range accommodates the listed MXP denominations, while the 500-note cashbox supports extended collection intervals in higher-traffic locations.

Integration notes

System designers should select the host machine’s required communication mode—Pulse, RS232, or ICT protocol—and provide DC power within the stated 12V–24V range. Four-way insertion, auto-centering, barcode reading, and optical validation support streamlined transactions and coupon or ticket handling. Confirm host wiring, protocol settings, cashbox style, and software compatibility before installation.

Ordering & support

E & D Trading is an authorized ICT distributor and reseller for the NBA-D104-5FU-MX5. Same-day volume quotes are available, with freight coordination for equipment projects, replacement programs, and multi-machine deployments.
