ICT NBA-D10R-5BU-MX5 Bill Validator 12–24V Pulse RS232 RFID Barcode 500 Note MXN

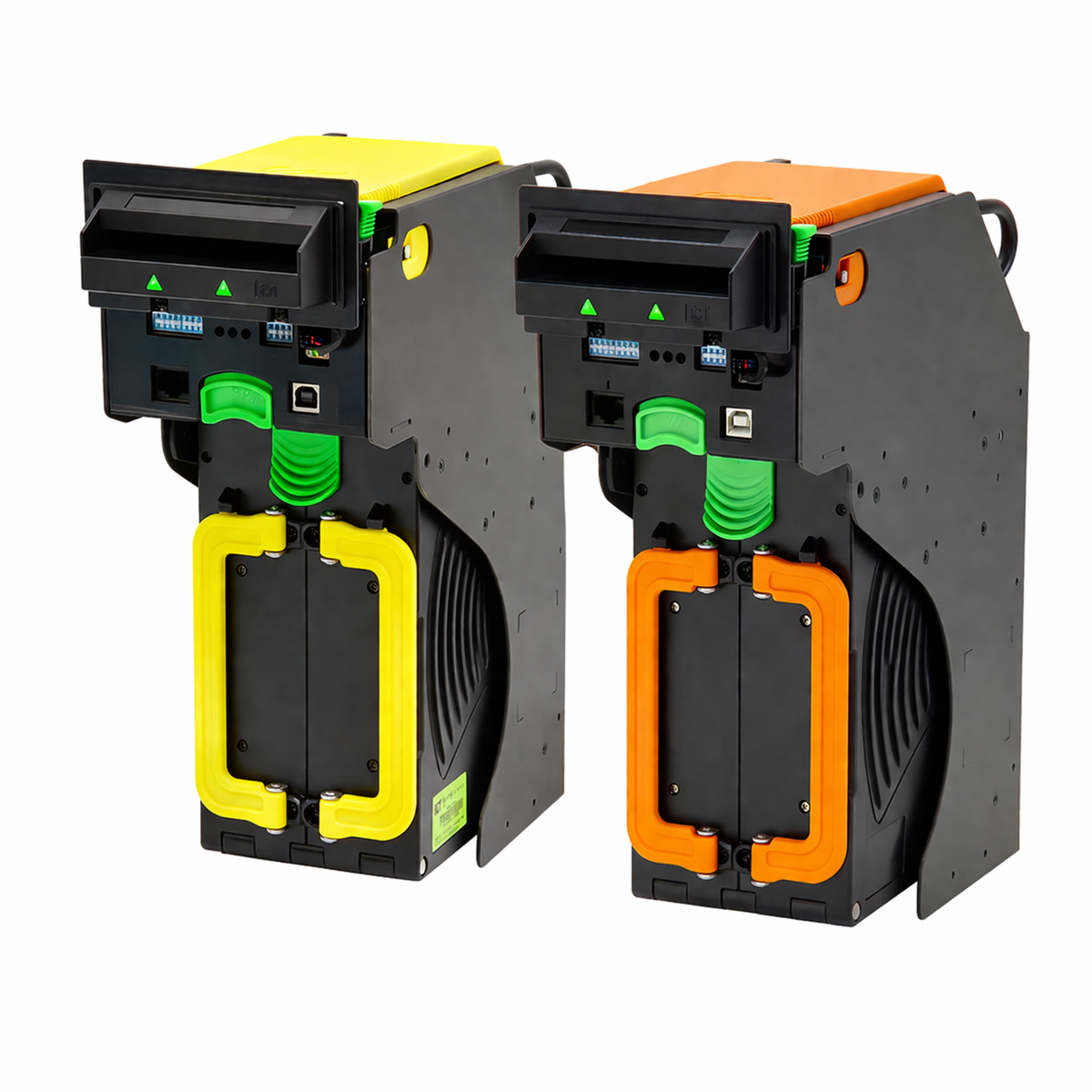

ICT NBA-D10R-5BU-MX5 Bill Validator — 12–24V Pulse/RS232 Validator for MXP

The ICT NBA-D10R-5BU-MX5 is an NBA Series bill validator configured for vending equipment, gaming machines, and other automated payment systems. Its 12V–24V DC supply, Pulse and RS232 interfaces, and Mexican currency configuration support integration across a range of control systems. E & D Trading supplies this ICT validator as an authorized distributor and reseller for OEM builders, route operators, and service technicians.

Specifications

• Model: NBA-D10R-5BU-MX5
• Manufacturer: ICT
• Currency: Mexican peso (MXN/MXP); accepts MXP: 20, 50, 100, 200, 500
• Communication: Pulse and RS232
• Power: 12V–24V DC; operating range 11.4V–25.2V DC
• Stacker: Approx. 500 bills; double-locked cashbox with yellow shell
• Accepted bill width: 62mm–83mm
• Security and recognition: IR anti-fishing technology, barcode reading, and RFID support
• Insertion: Four-way bill entry with automatic bill centering
• Acceptance rate: 96% or higher
• Transaction time: Approximately 5 seconds to stack
• Operating temperature: 0°C to 50°C
• Humidity: 30%–95% RH, non-condensing
• Service function: Fast firmware upgrade support

Fitment

This validator is intended for Mexican-currency installations in vending machines, gaming equipment, and automated systems that provide a compatible mounting arrangement and controller interface. The 62mm–83mm acceptance range accommodates the specified bill widths, while four-way insertion supports flexible cabinet layouts.

Integration notes

System designers should select the Pulse or RS232 communication mode to match the host controller and verify the available 12V–24V DC supply before installation. The IR anti-fishing function helps resist stringing attempts, while barcode and RFID capabilities support compatible transaction and identification applications. The 500-note double-locked cashbox is supplied with a yellow shell.

Ordering & support

E & D Trading provides SKU-specific assistance for the ICT NBA-D10R-5BU-MX5, including same-day volume quotes and freight coordination. Contact the distributor for integration questions, replacement planning, and availability.
