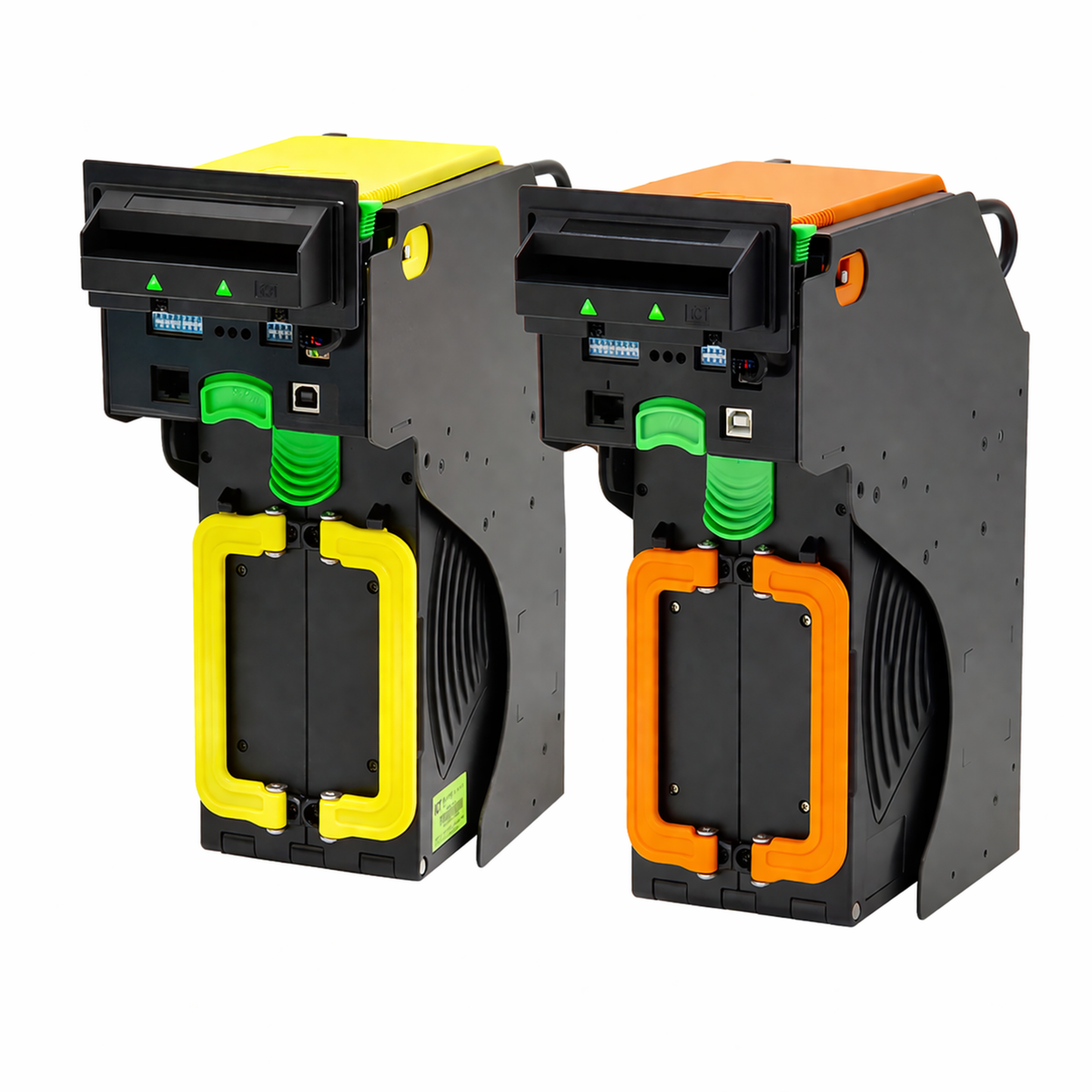

ICT NBA-D10R-5BU-US6 Bill Validator — 12–24V USD Note Acceptor
The ICT NBA-D10R-5BU-US6 is an NBA Series bill validator configured for United States dollar applications, including $1–$100 denominations. It combines Pulse and RS232 interfaces with optical validation, IR anti-fishing protection, barcode reading, and RFID support. E & D Trading supplies this ICT unit to OEM builders, vending operators, gaming equipment integrators, and route technicians requiring a lockable 500-note stacker.
Specifications
- Manufacturer: ICT
- Model / SKU: NBA-D10R-5BU-US6; NBA Series
- Currency: United States dollar (USD)
- Denomination acceptance: $1–$100
- Power input: 12V–24V DC; operating range 11.4V–25.2V DC
- Interfaces: Pulse (discrete) and RS232
- Stacker: Approximately 500 notes; double-locked cashbox with yellow shell
- Accepted note width: 62mm–83mm
- Acceptance rate: 96% or higher
- Stacking time: Approximately 5 seconds per transaction
- Insertion: Four-way bill entry with automatic bill centering
- Security and functions: Optical bill detection, IR anti-fishing/anti-string technology, barcode reading, RFID support, and fast firmware upgrades
- Operating temperature: 0°C to 50°C
- Humidity: 30%–95% RH, non-condensing
Fitment
This validator is suited to vending machines, gaming equipment, and other automated payment systems that provide compatible 12V–24V DC power and Pulse or RS232 controls. Its 62mm–83mm width range supports the stated U.S. currency configuration, while the lockable yellow 500-note cashbox is intended for installations requiring secure note storage.
Integration notes
System designers should confirm the host controller’s communication mode before installation, since Pulse and RS232 wiring and configuration are different. The validator accepts notes from four directions and centers them automatically before stacking. IR anti-fishing protection helps resist stringing attempts; barcode and RFID functions require compatible system hardware and software. Allow approximately five seconds for stacking and operate the unit within the listed voltage, temperature, and humidity limits.
Ordering & support
E & D Trading is an authorized ICT distributor and reseller for the NBA-D10R-5BU-US6. Contact the technical sales team for current availability, same-day volume quotes, configuration assistance, and freight coordination for vending, gaming, and automated-system deployments.
Technical Specifications
| Brand | ICT |
| Model Series | NBA Series |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Condition | New |
