Description

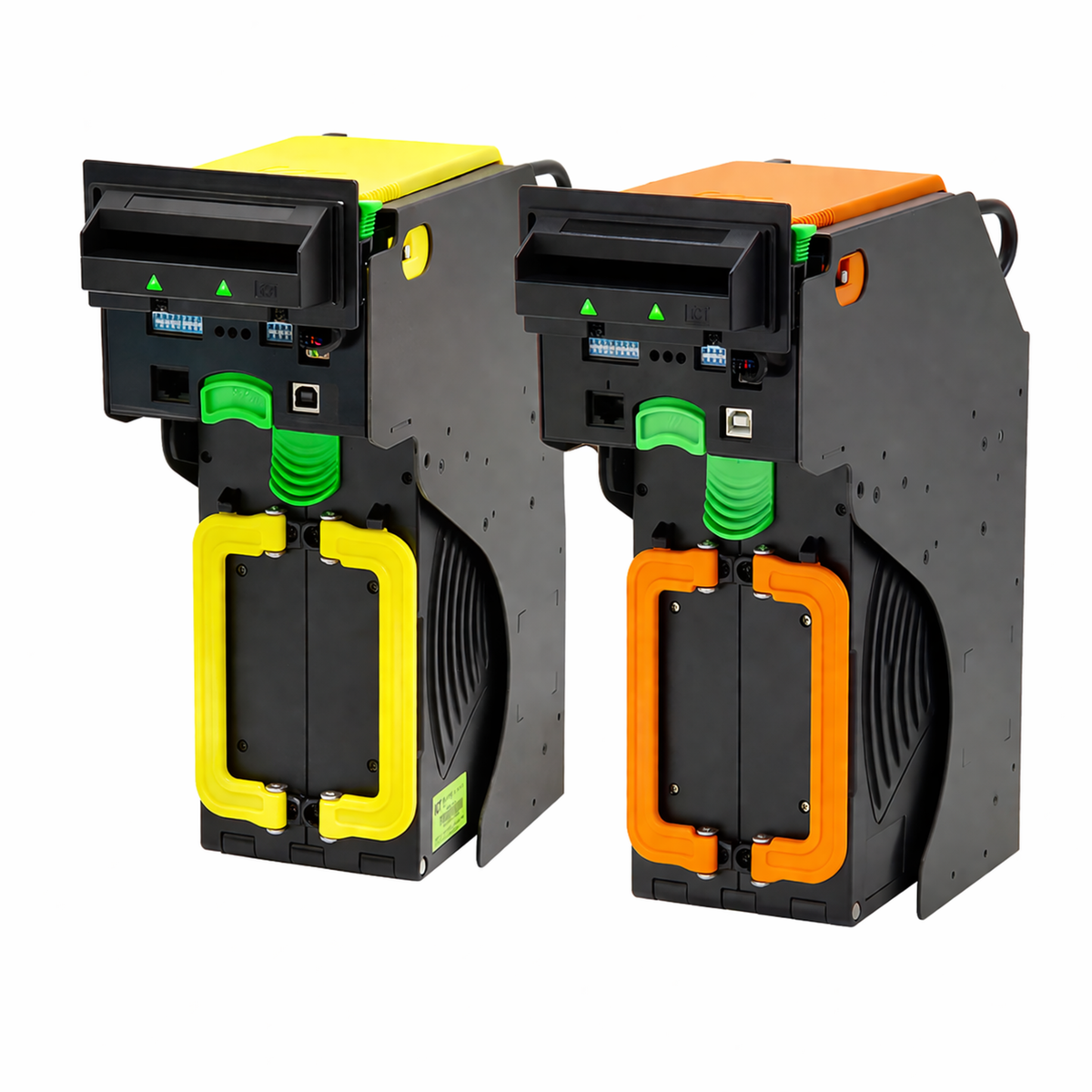

ICT NBA-E104-5EU-MX5A Bill Validator — 12–24V Pulse validator for Mexico currency
The ICT NBA-E104-5EU-MX5A is an ICT NBA Series bill validator configured for vending, gaming, and other automated payment equipment. Its Pulse interface and broad DC input range support integration with compatible control systems. E & D Trading supplies this model as an authorized distributor for OEM builders, route operators, and service technicians requiring a Mexico-currency validator with secure bill storage.
Specifications
- Manufacturer / series: ICT NBA Series
- Model: NBA-E104-5EU-MX5A
- Currency: Mexico currency; MXP: 20, 50, 100, 200, 500
- Interface / protocol: Pulse
- Power supply: 12V–24V DC; operating range 11.4V–25.2V DC
- Bill width accepted: 62mm–83mm
- Acceptance rate: 96% or higher
- Cashbox: Approx. 500 bills; double-lock design with orange shell
- Bill insertion: Four-way insertion with automatic bill centering
- Transaction time: Approximately 5 seconds to stack
- Security: High-security optical detection and IR Anti-fish protection against stringing
- Firmware: Fast firmware upgrade support
- Operating temperature: 0°C to 50°C
- Humidity: 30%–95% RH, non-condensing
- Excluded functions: Barcode and RFID support are not included
Fitment
This validator fits compatible vending machines, gaming equipment, kiosks, and automated systems that provide a Pulse control interface and support 12V–24V DC input. The NBA platform provides auto-centering and stable operation for demanding equipment environments.
Integration notes
The unit ships without harnesses, so the required compatible wiring must be sourced and installed separately. System designers should verify Pulse signaling, supply voltage, connector arrangement, bill-width clearance, and cashbox access before installation. The double-lock 500-note stacker is lockable for secure cash handling.
Ordering & support
E & D Trading provides factory-direct sourcing, technical product guidance, same-day quotes on volume requirements, and freight coordination for the ICT NBA-E104-5EU-MX5A.
Technical Specifications
| Brand | ICT |
| Model Series | NBA Series |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Condition | New |
