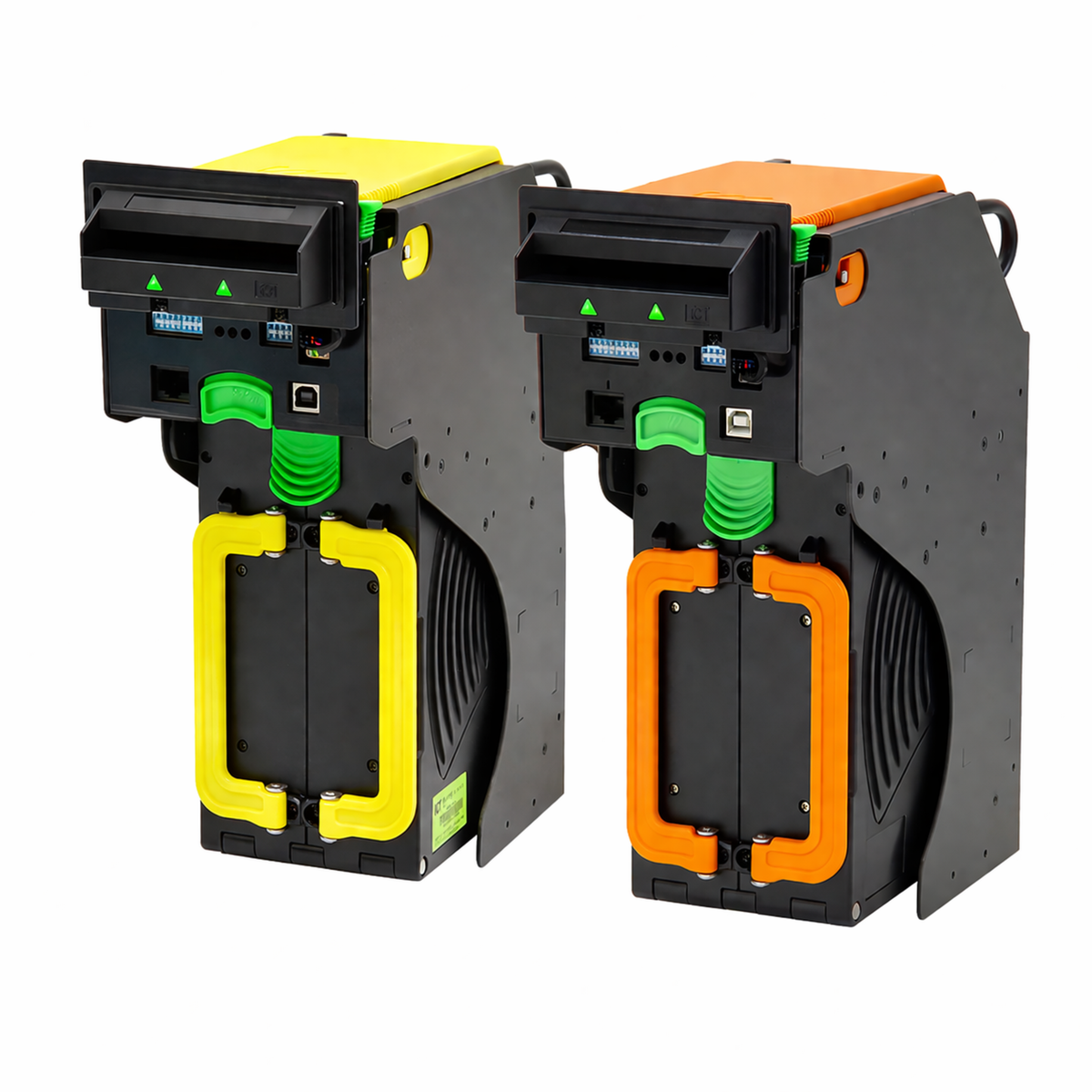

ICT NBA-E1AR-5BU-US6 Bill Validator — 12–24V Pulse USD Validator
The ICT NBA-E1AR-5BU-US6 is an NBA Series bill validator configured for USD currency handling in vending, gaming, and automated payment equipment. This new ICT unit accepts United States dollar denominations and operates from a broad DC input range for integration into compatible machines. E & D Trading supplies this SKU as an authorized distributor for OEM builders, equipment integrators, and route operators requiring a pulse-interface validator with a lockable 500-note cashbox.
Specifications
- Manufacturer: ICT
- Model / SKU: NBA-E1AR-5BU-US6
- Series: NBA
- Condition: New
- Currency: United States dollar (USD)
- Accepted denominations: USD: $1, $5, $10, $20, $50, $100
- Interface / protocol: Pulse
- Input voltage: 12V–24V DC; allowable range 11.4V–25.2V DC
- Stacker / cashbox capacity: Approximately 500 bills; single-lock cashbox
- Accepted bill width: 62mm–83mm
- Acceptance rate: 96% or higher
- Stacking time: Approximately 5 seconds
- Operating temperature: 0°C to 50°C
- Humidity: 30%–95% RH, non-condensing
- Security: IR Anti-fish, also described as anti-string, technology
- Insertion: Four-way bill insertion with automatic bill centering
- Harness: WEL-RNJ11 included
- Barcode / RFID: Not supported
- Recycler: No; this is a validator and stacker configuration
Compatible platforms
The validator is intended for compatible vending machines, gaming equipment, and automated payment systems that provide 12V–24V DC power and use Pulse communication. Its USD configuration is suited to standard U.S. bill-validation applications.
Integration notes
The supplied WEL-RNJ11 harness supports installation, while the four-way entry design and bill-centering function accommodate varied equipment layouts. Confirm the host machine’s Pulse wiring, voltage output, mounting arrangement, and cashbox clearance before installation. The IR Anti-fish system adds protection against stringing and related payout fraud; barcode and RFID functions are not included.
Ordering & support
E & D Trading provides the ICT NBA-E1AR-5BU-US6 for replacement, retrofit, and new equipment builds. Same-day quotes are available for volume orders, with freight coordination available for commercial shipments.
Technical Specifications
| Brand | ICT |
| Model Series | NBA Series |
| Voltage | 12v24v |
| Supported Protocols | Pulse |
| Stacker Capacity | 500 Bills |
| Condition | New |
