Description

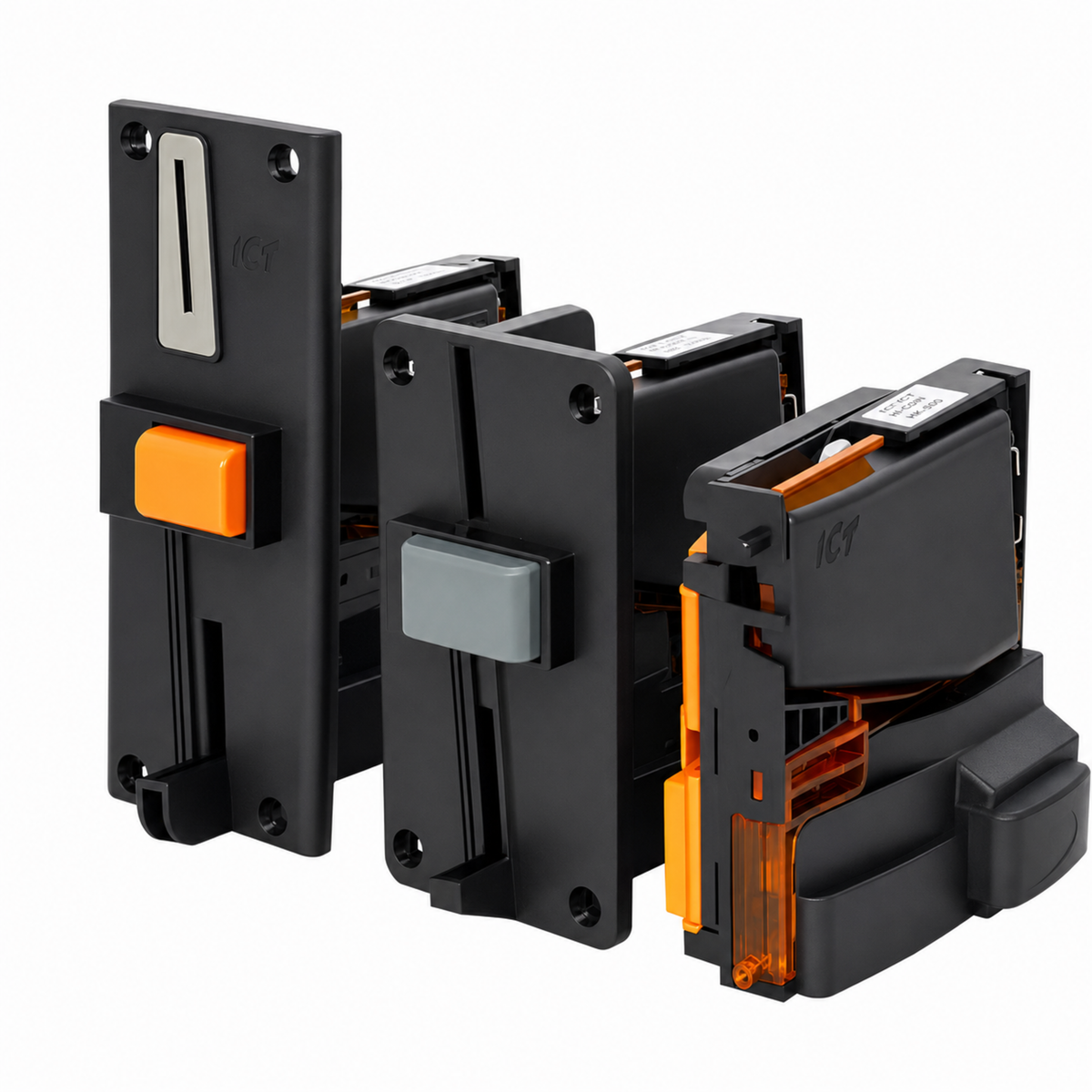

ICT SCA1-FOCMX5 Coin Acceptor — Mexico Peso Top-Entry Validator
The ICT SCA1-FOCMX5 is an SCA1 Series coin acceptor configured for Mexico Peso validation in vending and automated payment equipment. Its top-entry, bottom-exit layout supports installations where coins are loaded from above and routed downward into the machine. E & D Trading supplies this model as an authorized reseller for OEM builders, route operators, and service technicians requiring a replacement or integration-ready validator.
Specifications
- Model/SKU: ICT SCA1-FOCMX5
- Currency configuration: Mexico Peso; MXN 0.50, 1, 2, 5, and 10 denominations
- Interfaces and protocols: ccTalk, Parallel, Pulse, and MDB support
- Power: 12V DC or 34V DC
- Coin size: 29mm diameter; 2.5mm thickness
- Mechanical orientation: Top entry / bottom exit
- Validation: Advanced counterfeit detection with a 96% or higher acceptance rate
- Processing speed: Up to 3 coins/sec through Pulse or Parallel; up to 2 coins/sec through ccTalk or MDB
- Environmental construction: Moisture-resistant
- Operating temperature: -10°C to 55°C
- Storage temperature: -25°C to 70°C
- Humidity: 30%–85% RH, non-condensing
Fitment
This validator is intended for vending machines and other automated payment systems that require Mexico Peso coin recognition. It is suitable for equipment designed around a 12V DC or 34V DC supply and a compatible ccTalk, MDB, Pulse, or Parallel control interface. Confirm the machine’s coin path, mounting arrangement, voltage, and communication configuration before installation.
Integration notes
The SCA1-FOCMX5 accepts coins through the upper entry and directs validated coins through the lower exit. Interface selection affects the available processing rate, with Pulse/Parallel operation reaching up to 3 coins per second and ccTalk/MDB operation reaching up to 2 coins per second. The moisture-resistant housing and specified humidity range support demanding service environments, but the unit is rated for non-condensing conditions.
Ordering & support
E & D Trading provides the ICT SCA1-FOCMX5 for equipment integration, replacement, and field service. Contact E & D Trading for same-day volume quotes and freight coordination.
Technical Specifications
| Brand | ICT |
| Voltage | 12v34v |
| Supported Protocols | Pulse, ccTalk, MDB, Parallel |
| Condition | New |
