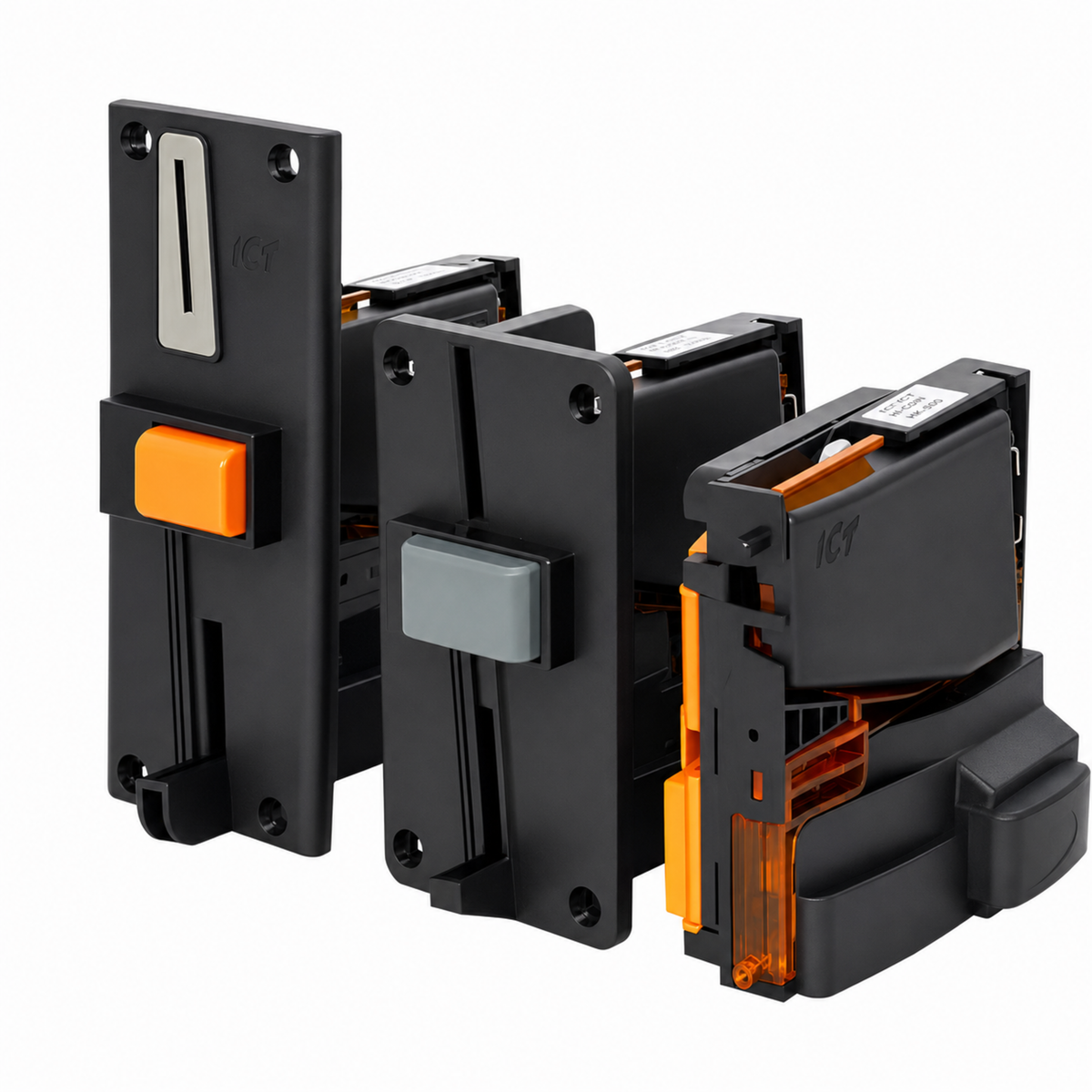

ICT SCA1-HUPCA3a Coin Acceptor — Canadian-Coin Validator with Short Bezel
The ICT SCA1-HUPCA3a is an SCA1 Series coin acceptor configured for automated payment equipment, vending machines, and compact kiosks. It operates from either 12V DC or 34V DC and provides Pulse, Parallel, and RS232 communication options. E & D Trading supplies this new ICT validator to OEM builders, integrators, and route operators requiring a compact Canadian-currency coin mechanism.
Specifications
- Manufacturer: ICT
- Model / SKU: SCA1-HUPCA3a
- Series: ICT SCA1 Series
- Currency: Canadian dollar (CAD)
- Denomination acceptance: CAD: $0.05, $0.10, $0.25, $0.25, $1.00, $2.00; the unit is also described as configured for Canadian $0.25, $1.00, and $2.00 coins
- Interfaces: Pulse, Parallel, RS232
- Input power: 12V DC / 34V DC
- Coin size: 29mm diameter; 2.5mm thickness
- Coin path: Top entry / bottom exit
- Panel design: Short panel bezel
- Acceptance rate: 96% or higher
- Processing speed: Up to 3 coins/sec with Pulse or Parallel; up to 2 coins/sec with ccTalk/MDB
- Operating temperature: -10°C to 55°C
- Storage temperature: -25°C to 70°C
- Humidity: 30%–85% RH, non-condensing
Compatible platforms
The SCA1-HUPCA3a fits vending machines, self-service kiosks, and other automated payment platforms that provide a compatible 12V or 34V DC supply and Pulse, Parallel, or RS232 control connection. Its short bezel supports installations where panel depth or available mounting space is limited.
Integration notes
Plan the cabinet layout around the top-in/bottom-out coin path. Confirm the host controller’s interface, voltage requirement, coin acceptance configuration, and wiring before installation. The validator uses counterfeit-detection technology and is rated for rapid operation at the stated processing speeds.
Ordering & support
E & D Trading is an authorized ICT distributor and reseller. Contact E & D Trading for same-day volume quotes, application assistance, and freight coordination for OEM, replacement, or route-equipment requirements.
Technical Specifications
| Brand | ICT |
| Voltage | 12v34v |
| Supported Protocols | Pulse, Parallel |
| Condition | New |
