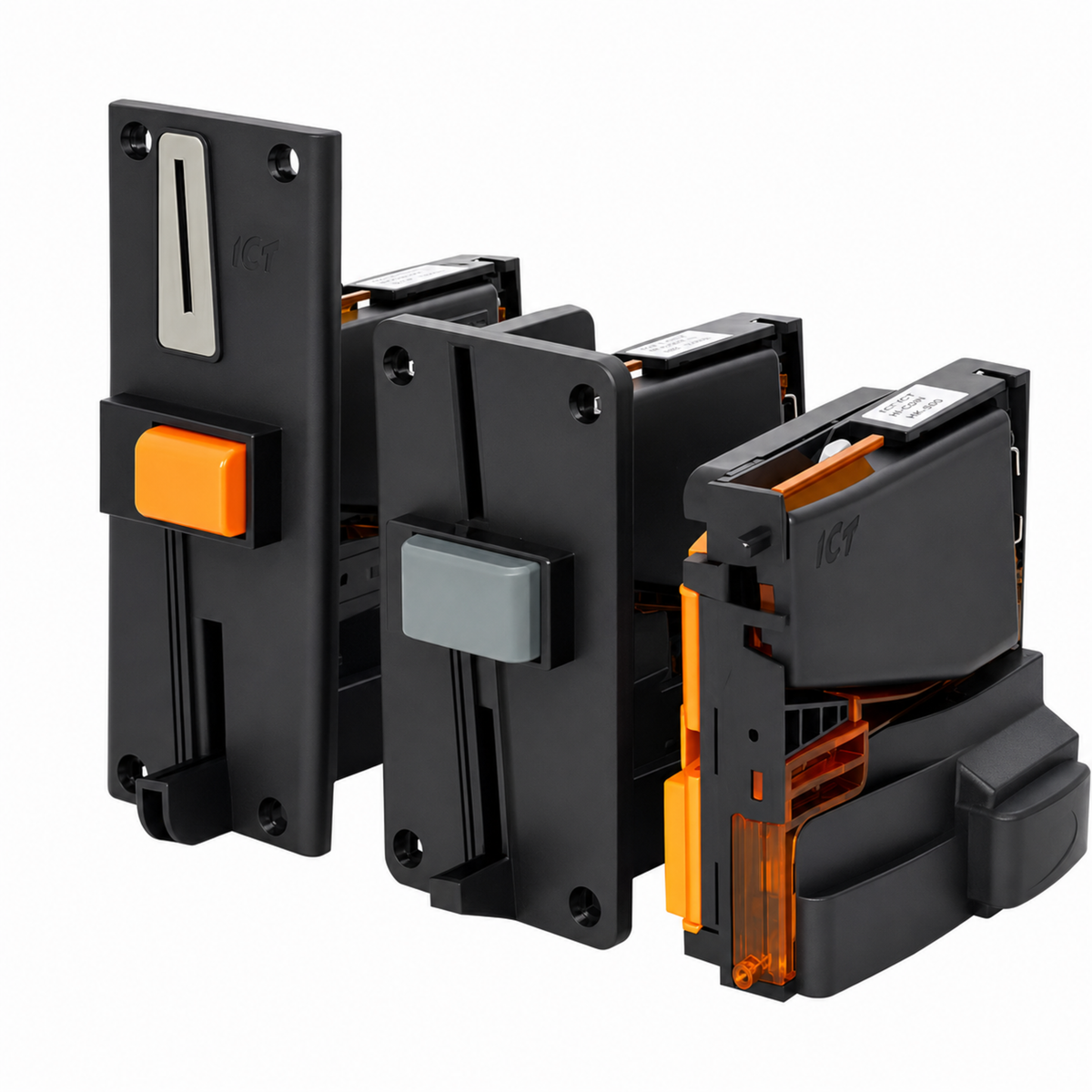

ICT SCA1-SMRSA4 Coin Acceptor — MDB Saudi-Coin Validator
The ICT SCA1-SMRSA4 is an SCA1 Series coin acceptor configured for Saudi Arabian currency in vending and automated payment equipment. It supports the MDB interface and operates from 12V or 34V DC, giving OEM builders, integrators, and route operators a compact validation component for compatible machines. E & D Trading supplies this model as an authorized distributor for equipment integration, replacement, and service requirements.
Specifications
- Manufacturer: ICT
- Model: SCA1
- SKU: SCA1-SMRSA4
- Series: ICT SCA1 Series
- Interface: MDB
- Power supply: 12V DC / 34V DC
- Currency: Saudi Arabia
- Accepted denominations: SAR: 0.01, 0.05, 0.10, 0.25, 0.50, 1, 2
- Coin diameter: 29mm
- Coin thickness: 2.5mm
- Acceptance rate: 96% or higher
- Acceptance speed: Up to 2 coins/sec (MDB)
- Entry and panel format: Side entry with short panel bezel
- Validation: Advanced counterfeit detection
- Operating temperature: -10°C to 55°C
- Storage temperature: -25°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
Compatible platforms
This validator is intended for MDB-equipped vending machines and automated payment systems that require Saudi coin acceptance. The side-entry arrangement and short panel bezel support installations where front-panel space or machine layout is limited.
Integration notes
The SCA1-SMRSA4 uses the MDB protocol and must be matched to equipment providing the specified 12V DC or 34V DC supply. Its coin path supports 29mm diameter and 2.5mm thick coins, while the validator provides rapid routing at up to 2 coins per second. Installation should account for the stated operating and storage temperature ranges and maintain a non-condensing environment within the specified humidity range.
Ordering & support
E & D Trading provides the ICT SCA1-SMRSA4 for new builds, field replacement, and vending-system service work. Same-day quotes are available for volume requirements, with freight coordination available for equipment and integration orders.
Technical Specifications
| Brand | ICT |
| Voltage | 12v34v |
| Supported Protocols | MDB |
| Condition | New |
