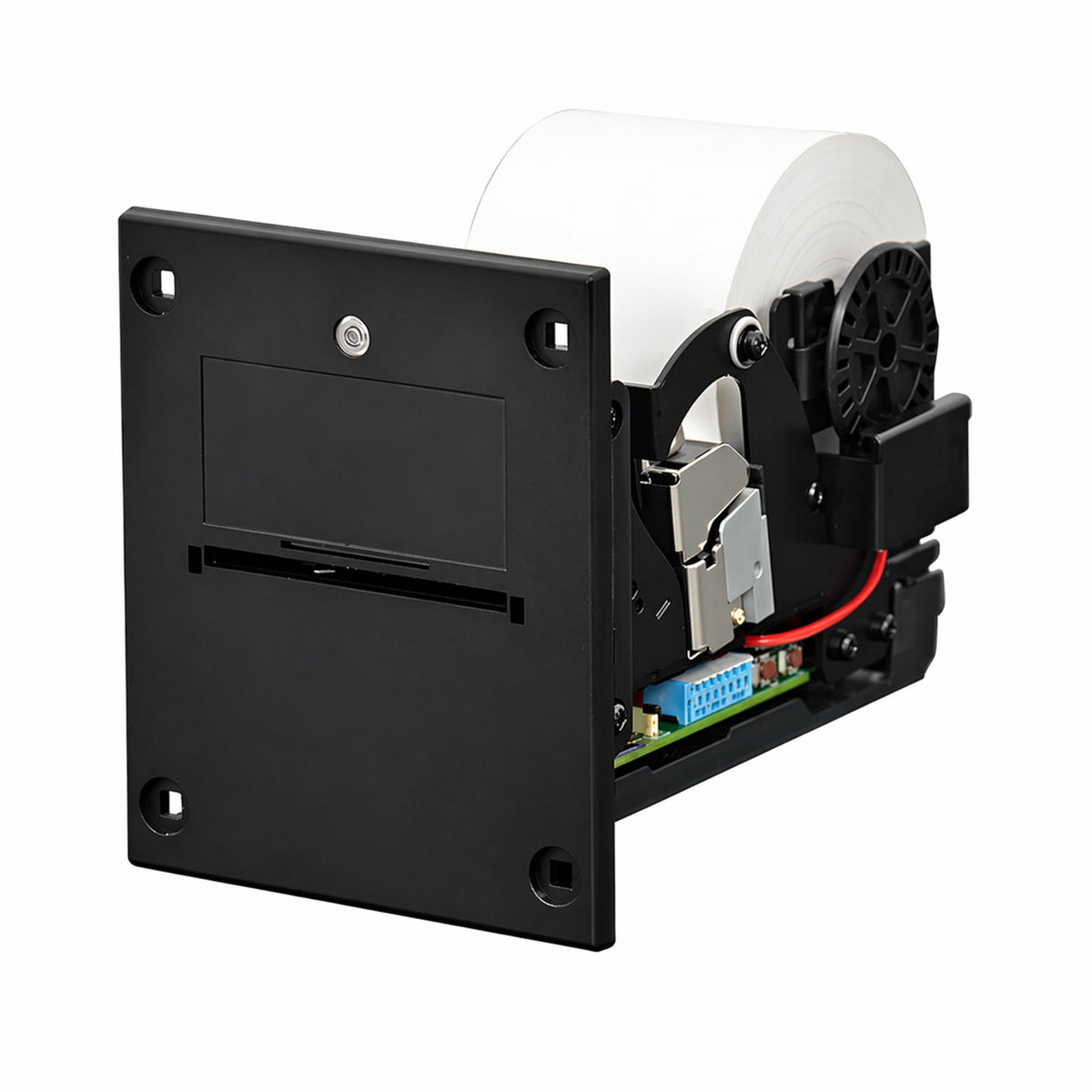

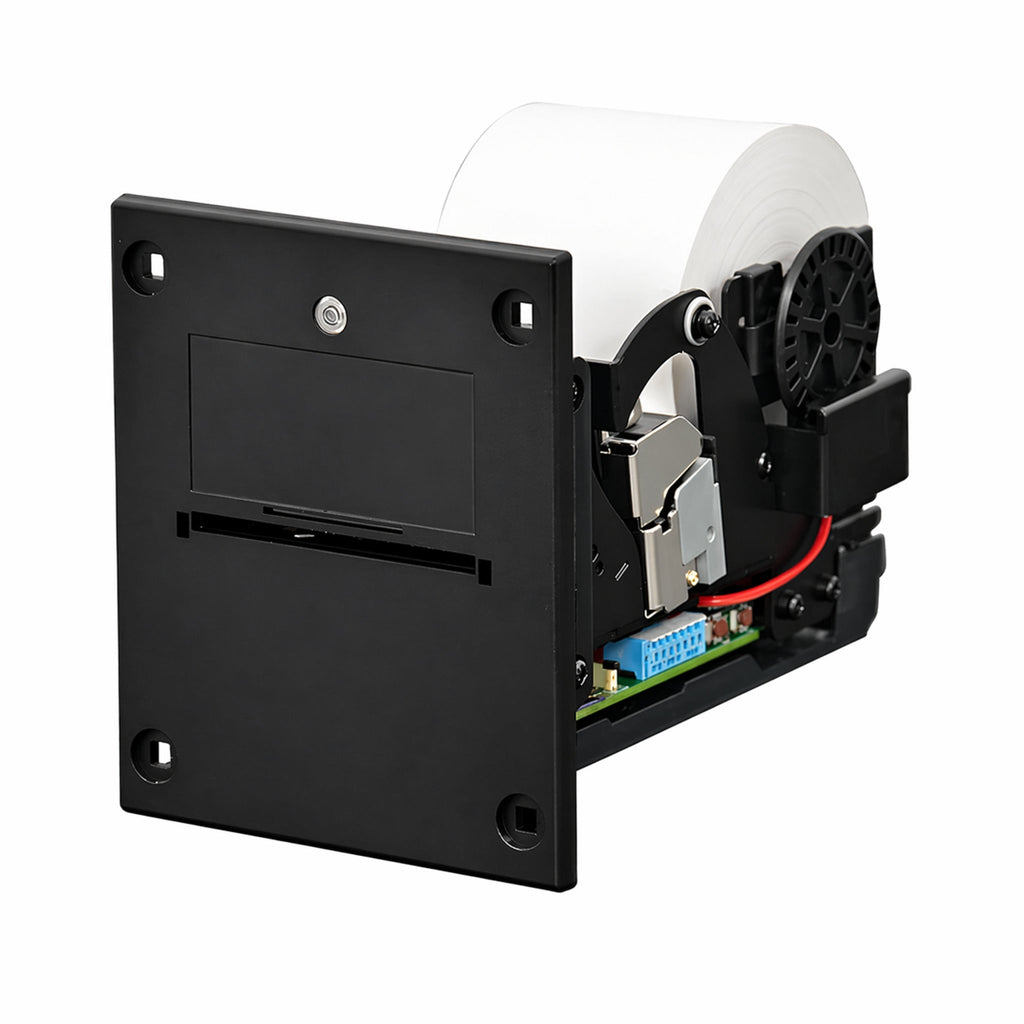

ICT SP1-BNS Smart Printer 12V 24V 58mm Bezel No Anti-Drag ESC POS Support

ICT SP1-BNS Smart Thermal Printer

The ICT SP1-BNS is a thermal dot-line printer configured with a 58mm bezel and no anti-drag mechanism. It is built for ticketing, vending, gaming, kiosk, and other unattended equipment that requires reliable receipt or ticket output. E & D Trading supplies this SP1 Series unit to OEM builders, system integrators, and route operators requiring ESC/POS-compatible printing hardware.

Specifications

• Model: SP1-BNS
• Product type: Thermal printer
• Printing method: Thermal dot-line
• Printing speed: Up to 90 mm/sec
• Resolution: 8 dots/mm
• Paper width: 56 ± 0.5 mm
• Paper roll capacity: Small roll up to 78 mm diameter; large roll up to 130 mm diameter
• Bezel: Included; no anti-drag mechanism
• Interfaces: RS232, USB, Pulse, Hopper, and ESC/POS
• Power: 12V and 24V listed configurations; the supplied electrical specification is 12V DC (10.8–13.2V)
• Power consumption: Up to 72W at 12V
• Service life: Print head rated for 50 km; cutter rated for 500,000 cuts
• Operating environment: 0°C to 50°C; 30%–85% RH, non-condensing
• Control and storage: ESC/POS command system, Micro SD card support, and memory storage for custom print formats and logos
• Functions: Built-in real-time clock, issue-time printing, daily and summary transaction reports, and full or partial automatic cutting

Compatible platforms

The SP1-BNS fits ticketing machines, vending equipment, gaming systems, kiosks, and other custom cabinets using compatible RS232, USB, Pulse, Hopper, or ESC/POS control connections. It accepts both small and large paper roll formats within the listed diameter limits.

Integration notes

Confirm the cabinet wiring and available supply before installation, particularly where a 12V or 24V configuration is specified. The BNS designation identifies the bezel-equipped, no-anti-drag version. Integrators can use the real-time clock, stored logos, custom layouts, and Micro SD support when configuring ticket formats and transaction reporting.

Ordering & support

E & D Trading is an authorized distributor for the ICT SP1-BNS. Same-day volume quotes and freight coordination are available for OEM, replacement, and deployment orders.
