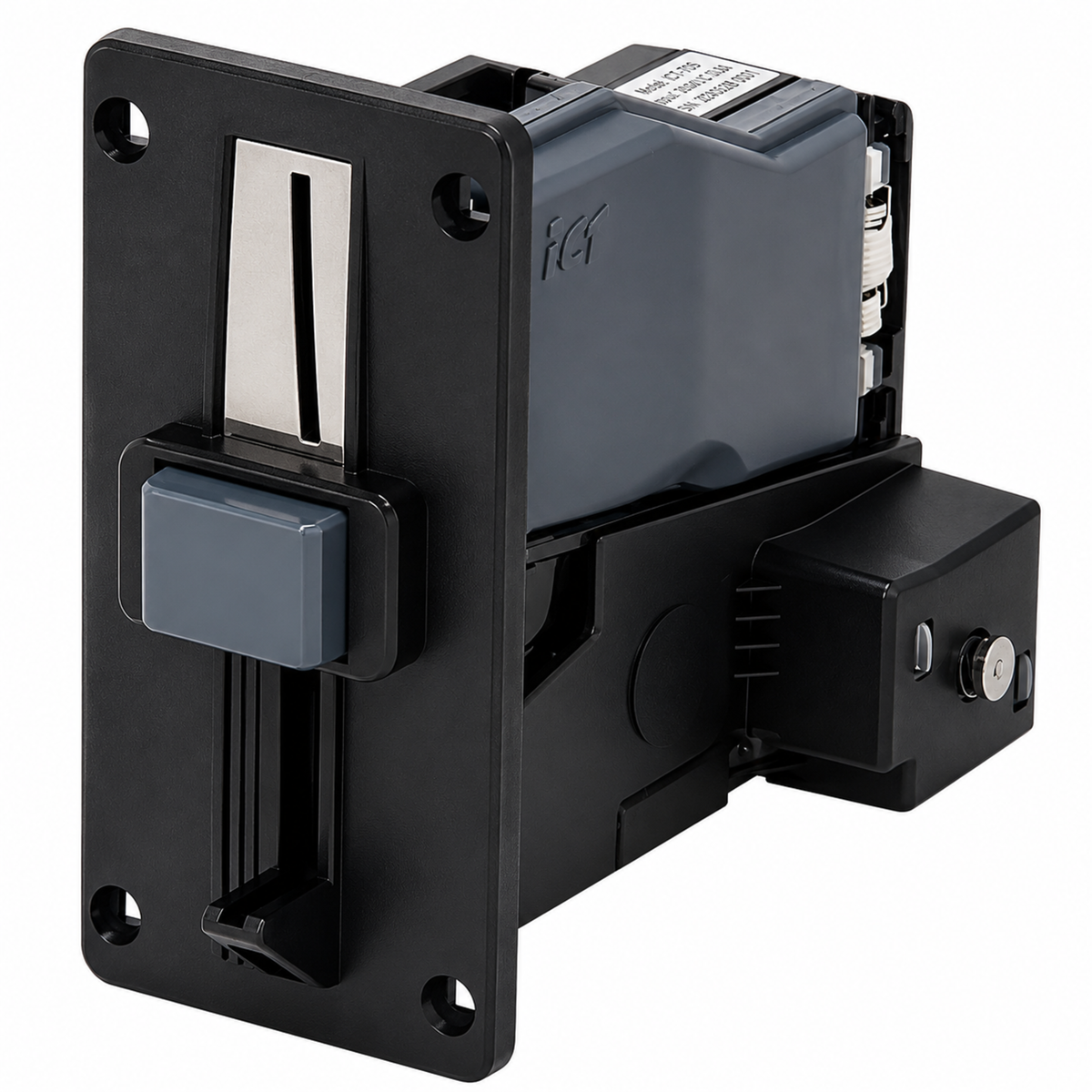

ICT UCAES21DFSRCA3 Coin Acceptor — 12V RS232 Canadian-Coin Validator

The ICT UCAES21DFSRCA3 is a UCAES Series electronic coin acceptor configured for Canadian currency handling in vending equipment, payment terminals, and outdoor or semi-outdoor machines. Its 12V DC supply and RS232 interface support integration with compatible control systems, while the waterproof construction and short-panel format address installations with limited mounting space. E & D Trading supplies this ICT unit as an authorized reseller for OEM builders, route operators, and service technicians.

Specifications

• Manufacturer: ICT
• Model: UCAES21DFSRCA3
• Series: ICT UCAES Series
• Currency configuration: Canadian coins
• Accepted denominations: CAD: $0.25, $1.00, $2.00
• Power requirement: 12V DC, 10.8–13.2V
• Communication interface: RS232
• Panel format: Short panel
• Coin opening: 2.4mm
• Coin channels: Up to 8
• Acceptance rate: 96% or higher
• Processing speed: Approximately 3 coins per second
• Coin diameter range: 20mm–32mm
• Coin thickness range: 1.2mm–3.2mm
• Protection: Waterproof design with mechanical and electrical anti-string protection
• Operating temperature: -5°C to 60°C
• Storage temperature: -20°C to 75°C
• Humidity: 30%–85% RH, non-condensing

Fitment

This validator fits vending machines, payment assemblies, and other equipment requiring Canadian $0.25, $1.00, and $2.00 coin recognition. The short-panel configuration is intended for compact cabinet layouts, and the waterproof UCAES construction suits demanding indoor or semi-outdoor placements.

Integration notes

Provide regulated 12V DC within the specified 10.8–13.2V range and connect the host controller through the RS232 interface. Confirm cabinet cutout, coin path clearance, connector wiring, and software configuration before installation. The 2.4mm opening, supported coin dimensions, anti-string safeguards, and up-to-8-channel configuration should be matched to the machine’s mechanical and control requirements.

Ordering & support

E & D Trading provides the ICT UCAES21DFSRCA3 for replacement, retrofit, and new equipment builds. Contact E & D Trading for current availability, same-day volume quotes, and freight coordination.
