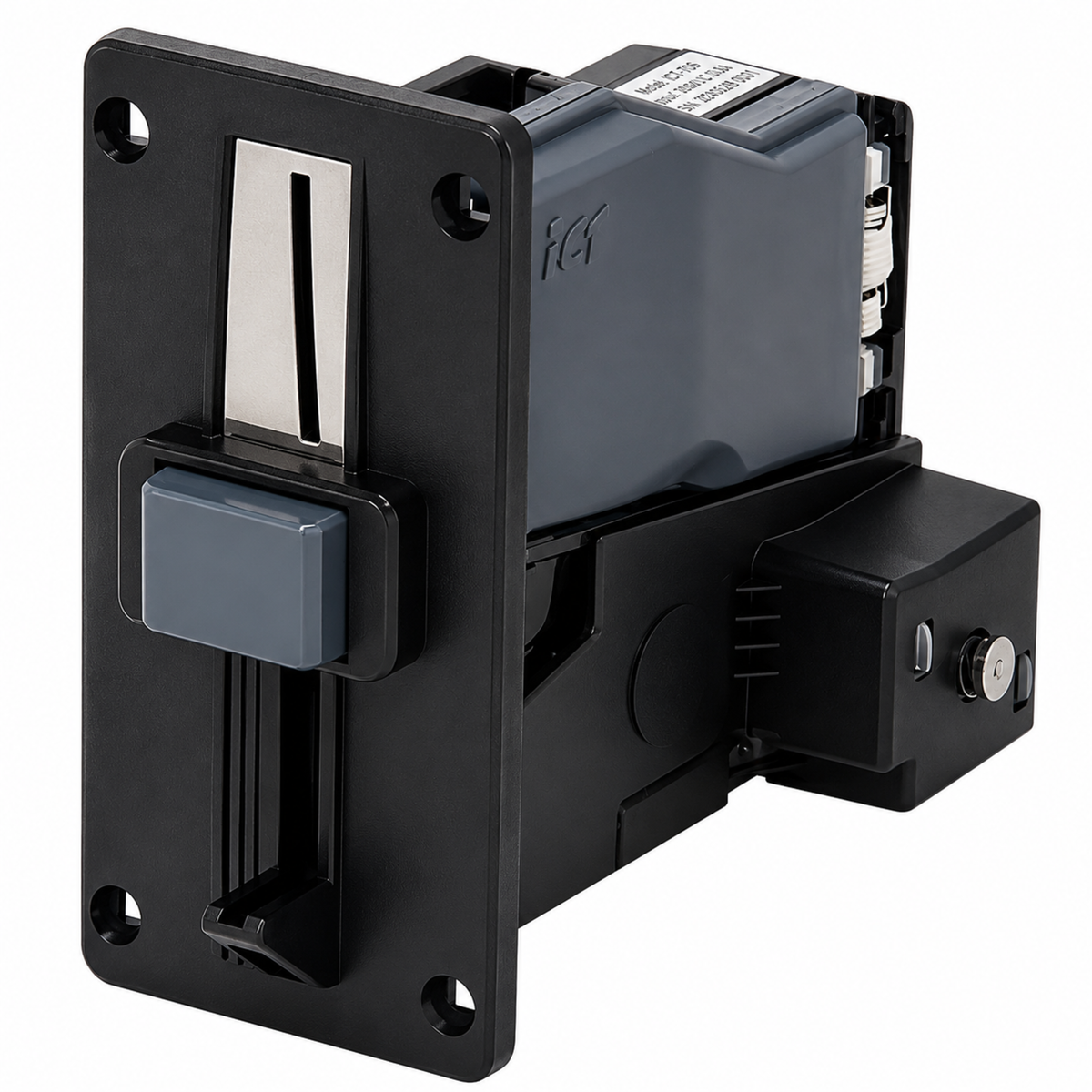

ICT UCAES22DFSPMX5 Coin Acceptor — 12V Pulse Validator for Mexico Coins
The ICT UCAES22DFSPMX5 is a UCAES Series electronic coin acceptor configured for 12V DC operation, Pulse signaling, and Mexico coin denominations. Its waterproof construction, side-entry format, and short panel bezel suit vending equipment and payment systems installed in outdoor or high-humidity locations. E & D Trading supplies this model as an authorized distributor for OEM builders, integrators, and route operators requiring a replacement or production-ready coin validator.
Specifications
- Manufacturer: ICT
- Model / SKU: UCAES22DFSPMX5
- Series: ICT UCAES Series
- Interface: Pulse
- Power: 12V DC, 10.8–13.2V
- Currency configuration: Mexico coins, MXN 0.50, 1, 2, 5, and 10
- Coin entry: Side entry with short panel bezel
- Coin opening: 2.8mm
- Coin diameter range: 20mm–32mm
- Coin thickness range: 1.2mm–3.2mm
- Capacity: Up to 8 coin channels
- Acceptance rate: 96% or higher
- Processing speed: Approximately 3 coins/sec
- Security: Mechanical and electrical anti-string protection
- Environmental protection: Waterproof design
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 75°C
- Humidity: 30%–85% RH, non-condensing
Compatible platforms
This validator fits coin-operated vending machines and other payment equipment using a 12V Pulse interface and the listed Mexico coin configuration. The side-entry layout and compact short-panel arrangement are intended for installations where front-to-back space or panel clearance is limited.
Integration notes
Provide regulated 12V DC power within the specified 10.8–13.2V range and connect the machine controller through its Pulse input. Confirm the controller’s pulse-count programming before installation. The 2.8mm opening and supported 20mm–32mm diameter and 1.2mm–3.2mm thickness ranges should be matched to the machine panel and accepted coin set. Waterproof protection supports outdoor or humid service, while the stated humidity range is non-condensing.
Ordering & support
E & D Trading provides the ICT UCAES22DFSPMX5 for replacement service, OEM integration, and vending equipment builds. Contact E & D Trading for same-day volume quotes and freight coordination.
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Condition | New |
