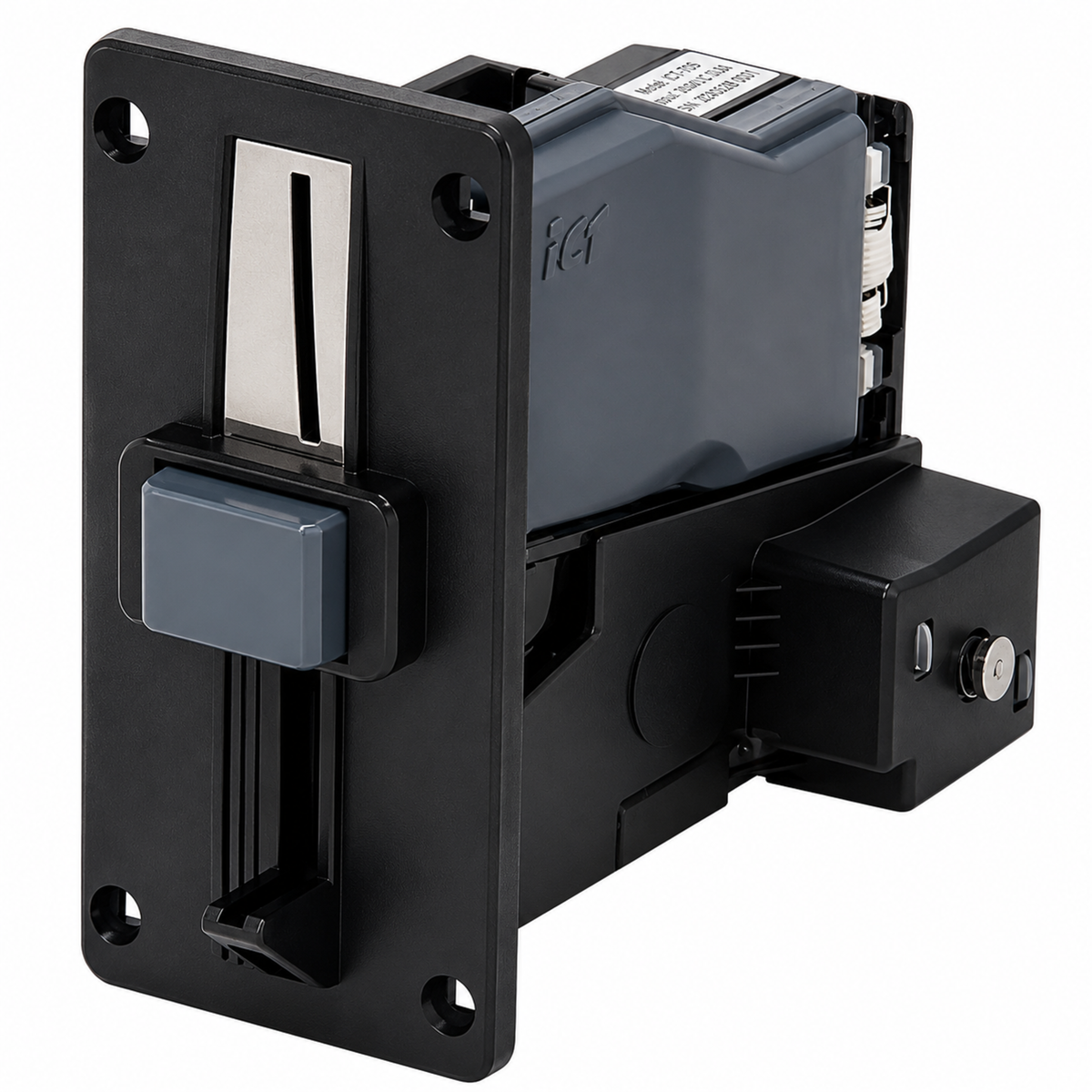

ICT UCAES22DFSRUS5 Coin Acceptor — 12V RS232 USD and Token Validator

The ICT UCAES22DFSRUS5 is a UCAES Series coin acceptor configured for indoor vending and automated payment equipment. Its short-panel housing accepts programmed USD coins and tokens, while the RS232 interface provides a practical connection for compatible machine controllers. E & D Trading supplies this ICT unit to OEM builders, integrators, and route operators requiring a compact 12V validation platform.

Specifications

• Manufacturer: ICT
• Model / SKU: UCAES22DFSRUS5
• Series: ICT UCAES Series
• Power: 12V DC, 10.8–13.2V
• Interface: RS232
• Panel configuration: Short panel with 2.8mm coin opening
• Currency setting: United States dollar (USD) coins and tokens
• Accepted USD denominations: $0.05, $0.10, $0.25, $1.00
• Coin channels: Up to 8
• Acceptance rate: 96% or higher
• Processing speed: Approximately 3 coins/sec
• Coin diameter: 20mm–32mm
• Coin thickness: 1.2mm–3.2mm
• Security: Mechanical and electrical anti-string protection
• Waterproofing: Not included; configured for indoor applications
• Operating temperature: -5°C to 60°C
• Storage temperature: -20°C to 75°C
• Humidity: 30%–85% RH, non-condensing

Compatible platforms

This validator fits vending machines and other automated payment systems built to communicate through RS232 and provide 12V DC power. The short-panel format supports compact cabinet and control-panel installations where the specified 2.8mm opening and coin-size ranges match the machine design.

Integration notes

Confirm the host controller’s RS232 configuration, 12V DC supply range, coin-channel programming, and physical mounting dimensions before installation. This version is not waterproof; protect it from moisture and use it in environments within the listed temperature and non-condensing humidity limits. The programmed acceptance set includes USD denominations of $0.05, $0.10, $0.25, and $1.00, along with tokens.

Ordering & support

E & D Trading is an authorized ICT distributor and reseller. Contact E & D Trading for current availability, same-day volume quotes, and freight coordination for OEM or route-equipment requirements.
