Description

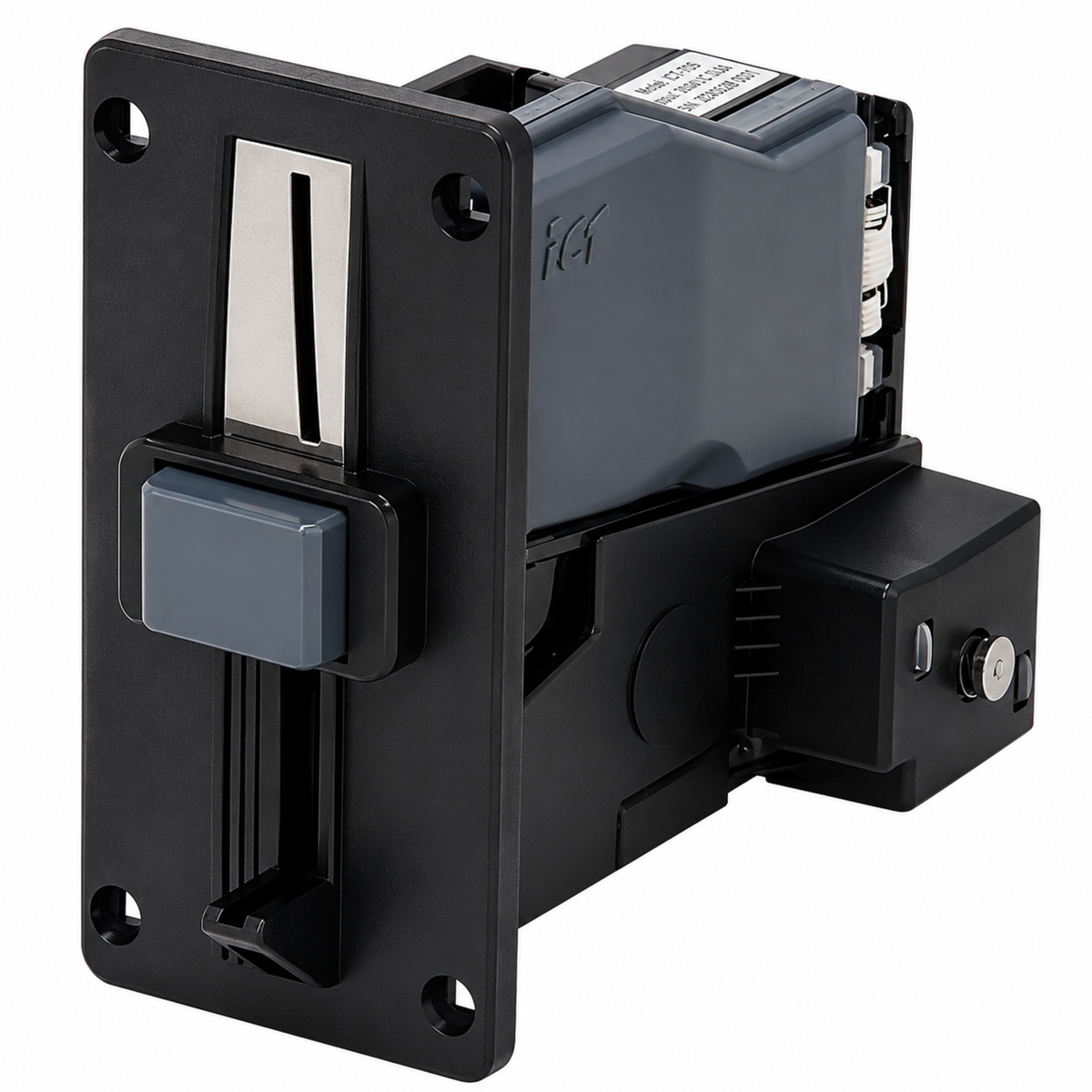

ICT UCAES23DFSRGB5 Coin Acceptor — 12V RS232 UK Coin Validator
The ICT UCAES23DFSRGB5 is a UCAES Series electronic coin acceptor configured for UK Pound coin validation in vending, payment, and outdoor equipment. Its side-entry, short-panel format supports installations where cabinet space is limited, while the waterproof construction suits outdoor and high-humidity service locations. E & D Trading supplies this ICT unit as an authorized distributor and reseller for OEM builders, integrators, and route operators.
Specifications
- Manufacturer: ICT
- Model / SKU: UCAES23DFSRGB5
- Series: ICT UCAES Series
- Power: 12V DC, 10.8–13.2V
- Interface: RS232
- Currency: UK Pound Sterling (GBP)
- Accepted denominations: £0.10, £0.20, £0.50, £1.00, £2.00
- Acceptance rate: 96% or higher
- Processing speed: Approximately 3 coins per second
- Coin channels: Up to 8
- Coin diameter range: 20mm–32mm
- Coin thickness range: 1.2mm–3.2mm
- Entry configuration: Side entry with short panel bezel and 3.3mm coin opening
- Security: Mechanical and electrical anti-string protection
- Environmental protection: Waterproof design
- Operating temperature: -5°C to 60°C
- Storage temperature: -20°C to 75°C
- Humidity: 30%–85% RH, non-condensing
Compatible platforms
This validator is intended for vending machines, outdoor payment equipment, and other machine platforms requiring UK coin acceptance through an RS232 connection. The compact side-entry arrangement is suitable for cabinet designs with restricted front-panel depth or limited installation clearance.
Integration notes
Provide regulated 12V DC within the specified 10.8–13.2V range and confirm that the host controller is configured for RS232 communication. The 3.3mm coin opening and supported 20mm–32mm diameter and 1.2mm–3.2mm thickness ranges should be checked against the cabinet bezel and intended coin set before installation. Waterproof protection does not remove the need for correct sealing and mounting in exposed equipment.
Ordering & support
E & D Trading can provide product guidance, same-day volume quotations, and freight coordination for the ICT UCAES23DFSRGB5. Contact the distributor for availability and integration support.
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Condition | New |
