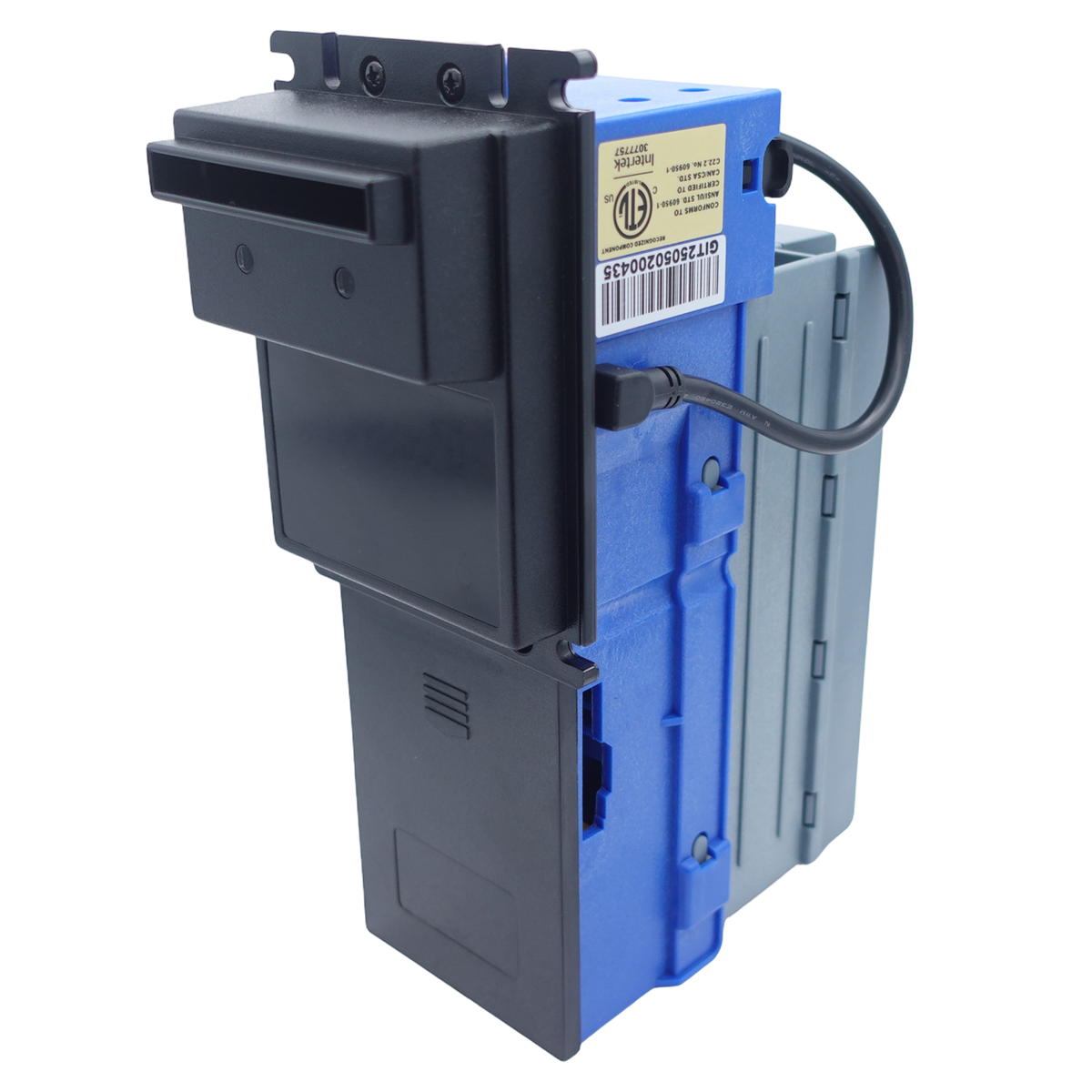

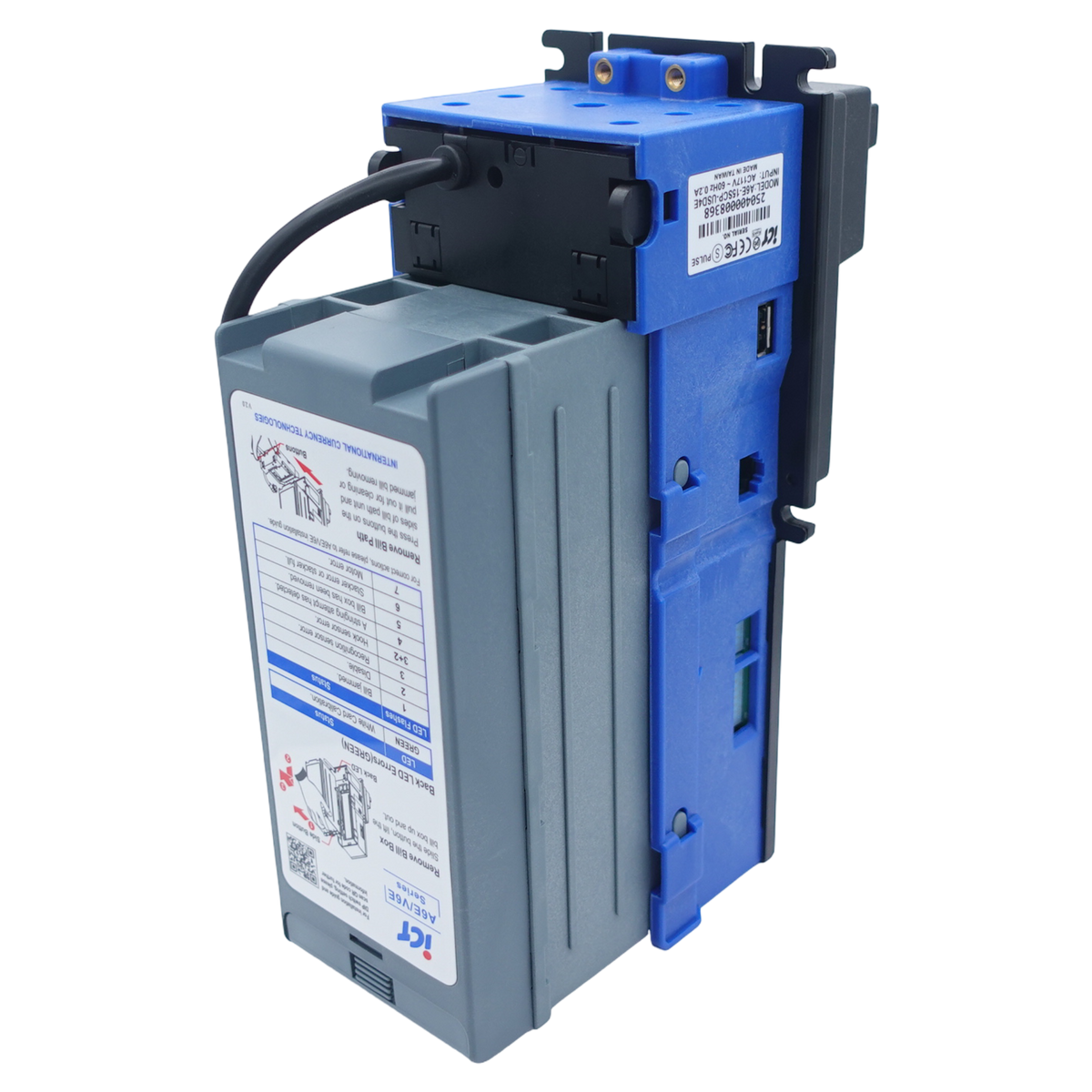

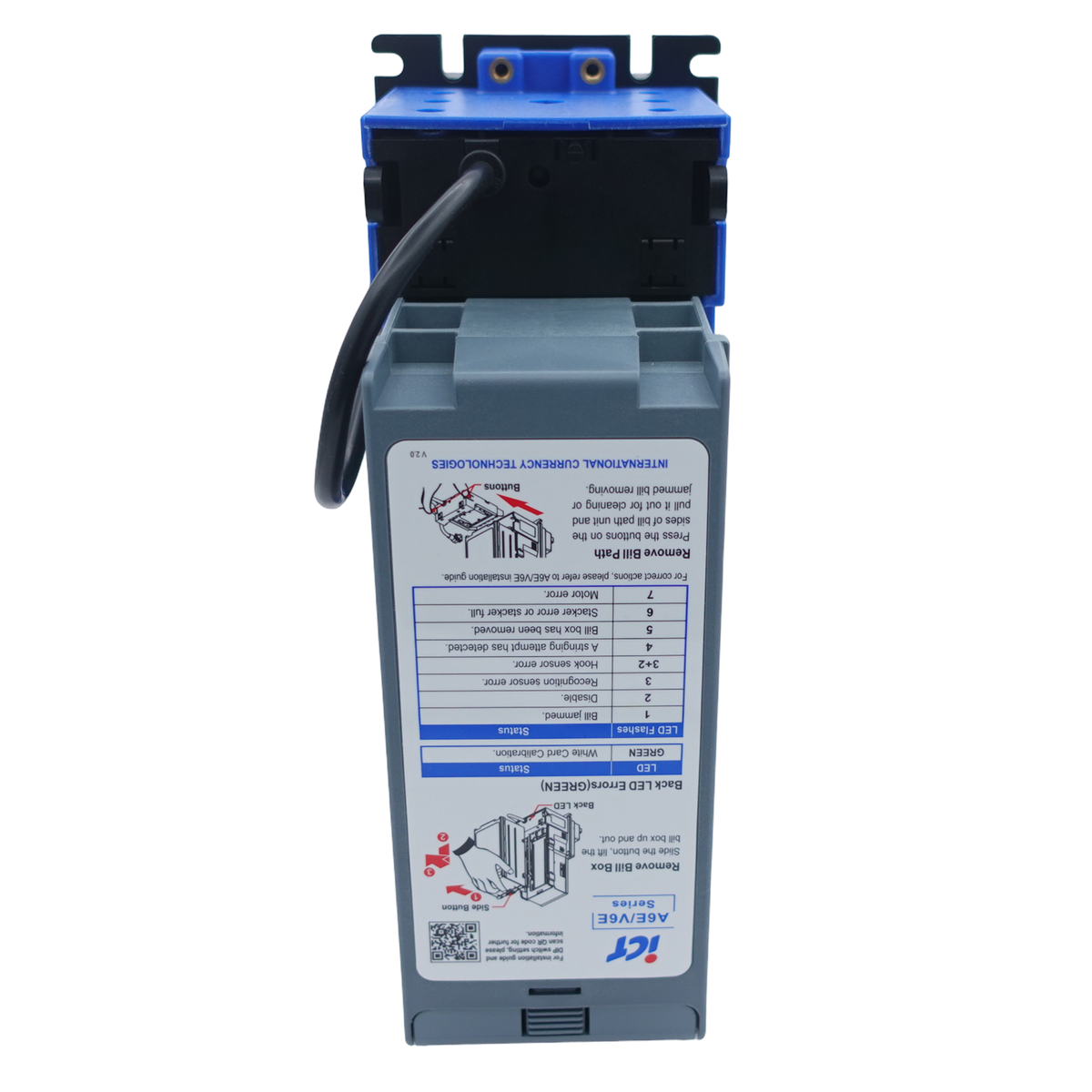

ICT V6E-36S0M-USD4-II Bill Validator 24V 600 Stacker MDB USD Standard Bezel

ICT V6E-36S0M-USD4-II Bill Validator — 24V MDB Acceptor with 600-Note Stacker

The ICT V6E-36S0M-USD4-II is a new V6E Series bill validator configured for United States currency in vending machines and automated payment equipment. It operates from a 24V DC supply and communicates through the MDB protocol, making it suitable for compatible cash-handling controllers. E & D Trading supplies this ICT validator as an authorized distributor for OEM builders, system integrators, and route operators requiring a standard-bezel configuration without a mounting kit.

Specifications

• Manufacturer: ICT
• Model: V6E
• SKU: V6E-36S0M-USD4-II
• Product type: Bill validator
• Condition: New
• Currency: United States
• Denomination acceptance: $1-$20
• Voltage: 24V DC
• Interface: MDB
• Bezel: Standard
• Stacker capacity: 600 notes
• Bill insertion: Four-way
• Acceptance rate: 96% or higher
• Transaction time: Approximately 3 seconds
• Accepted bill width: 60–67 mm
• Calibration: Automatic calibration system
• Operating temperature: 0°C to 55°C
• Storage temperature: -30°C to 70°C
• Humidity: 30%–85% RH, non-condensing
• Mounting kit: Not included

Compatible platforms

This validator is intended for vending machines and other automated payment systems equipped for MDB communication and 24V DC operation. The standard bezel accepts banknotes from four directions, supporting installations where the bill-entry orientation varies by cabinet design.

Integration notes

Confirm that the host machine provides the required 24V DC supply and MDB connection before installation. The unit supports straightforward installation and maintenance, while its automatic calibration system helps maintain validation performance during service. A mounting kit is not supplied, so the installer must provide the appropriate hardware for the target cabinet.

Ordering & support

E & D Trading supplies the ICT V6E-36S0M-USD4-II for replacement, new equipment builds, and vending fleet service. Same-day volume quotes and freight coordination are available for qualified orders; provide the required quantity and destination when requesting support.
