Description

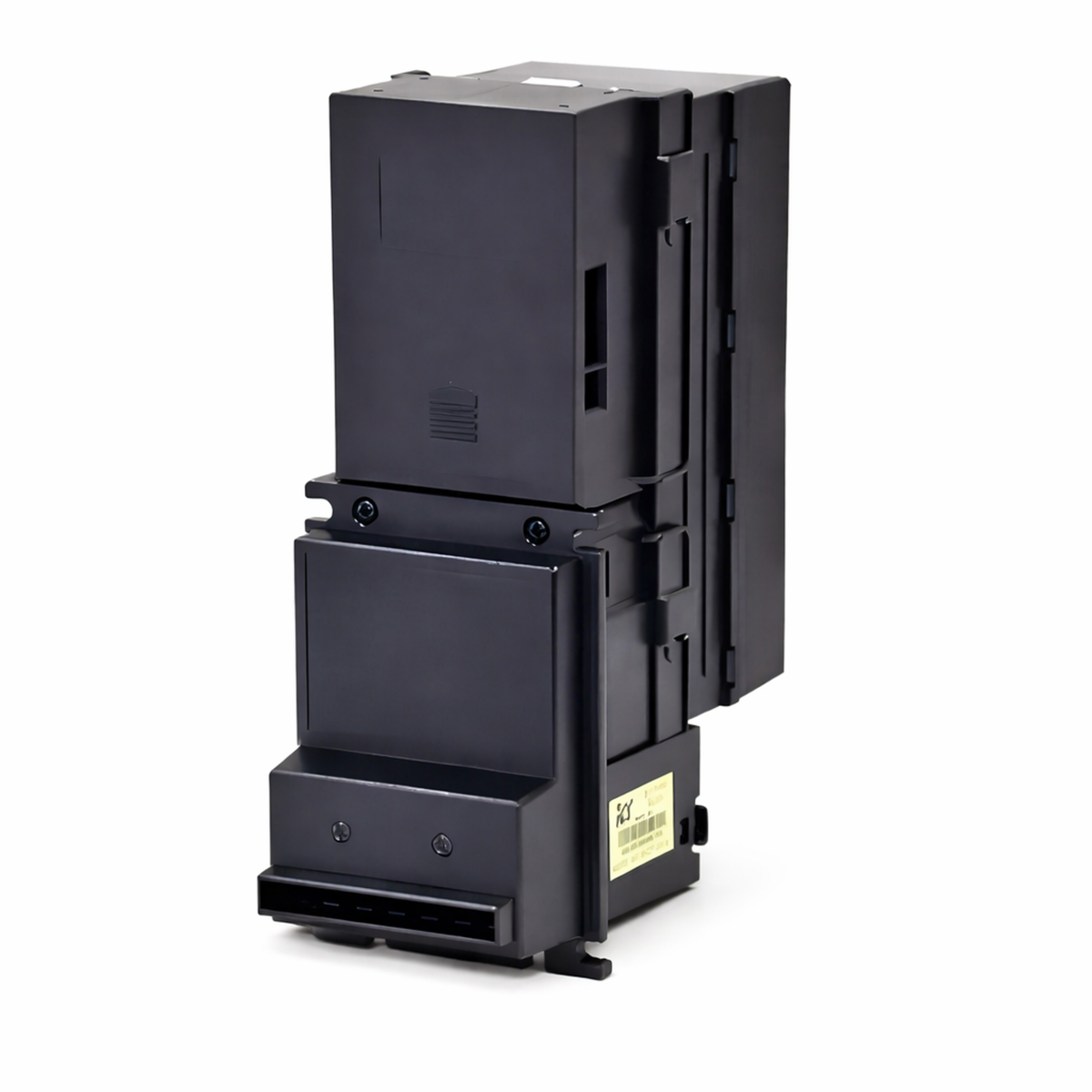

ICT V7-36S0M-CAD3-T# Bill Validator — 24V MDB Canadian Currency Acceptor
The ICT V7-36S0M-CAD3-T# is a V7 Series bill validator configured for Canadian Dollar (CAD) acceptance in vending and amusement equipment. Its 24V DC supply, MDB protocol, standard bezel, and 600-bill stacker support straightforward integration into machines requiring validated cash handling and higher note capacity. E & D Trading supplies this new unit as an authorized distributor for OEM builders, route operators, and service technicians.
Specifications
- Manufacturer: ICT
- Model: V7
- SKU / part number: V7-36S0M-CAD3-T#
- Currency: Canadian Dollar (CAD)
- Accepted denominations: $5, $10, and $20
- Operating voltage: 24V DC
- Interface: MDB
- Stacker capacity: 600 bills
- Bezel: Standard
- Acceptance rate: 96% or greater
- Transaction speed: Approximately 3 seconds per bill
- Bill insertion: Four-way
- Accepted bill width: 62–72 mm
- Calibration: Automatic
- Operating temperature: 0°C to 55°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–85% RH, non-condensing
- Installation: Indoor
- Cashbox: Non-lockable
- Recycler: Not included; this is a bill validator and stacker configuration
Compatible platforms
The standard-bezel cabinet format is suited to indoor vending and amusement machines using an MDB payment system. It is also part of the broader ICT V7 platform, which supports multiple interface configurations across the series; this SKU is specifically supplied with MDB communication and CAD currency programming.
Integration notes
Provide a compatible 24V DC supply and connect the validator through the machine’s MDB system. The four-way transport accepts bills in any orientation within the stated 62–72 mm width range. Automatic calibration supports consistent validation, while the 600-bill stacker is intended for locations that require more accumulated cash than a smaller stacker provides. Confirm cabinet clearance, bezel opening, connector configuration, and machine-side MDB compatibility before installation.
Ordering & support
E & D Trading offers the ICT V7-36S0M-CAD3-T# for replacement, retrofit, and new equipment builds. Same-day quotes are available for volume requirements, and freight coordination can be arranged for qualified orders.
Technical Specifications
| Brand | ICT |
| Model Series | V7 Series |
| Voltage | 24v |
| Supported Protocols | MDB |
| Stacker Capacity | 600 Bills |
| Bezel Type | Standard |
| Condition | New |
