Description

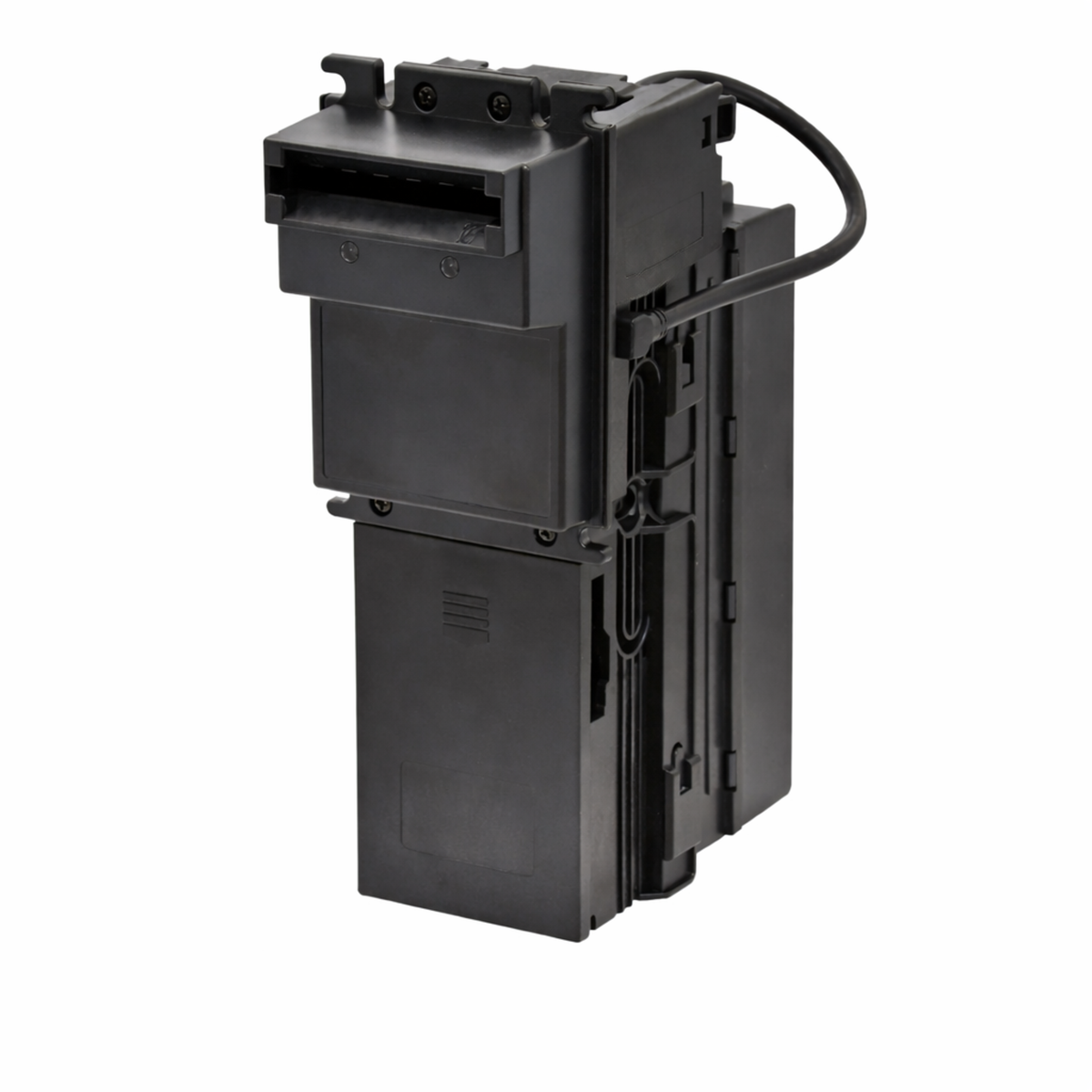

ICT V7P-2UA31UC7 Bill Validator — 12V Dual-Currency ICT104U Acceptor
The ICT V7P-2UA31UC7 is a 12V DC bill validator configured for ICT104U (RS232) communication, dual-currency operation, and a 300-bill stacker. Its double 73mm bezel supports straightforward installation in vending and amusement equipment that accepts U.S. and Canadian currency. E & D Trading supplies this ICT V7P Series unit as an authorized reseller for OEM builders, equipment integrators, and route operators requiring a production-ready validator.
Specifications
- Manufacturer: ICT
- Model / SKU: V7P-2UA31UC7
- Series: ICT V7P
- Voltage: 12V DC
- Interface / protocol: ICT104U (RS232), serial
- Currency configuration: Dual currency; U.S. Dollar (USD) and Canadian Dollar (CAD)
- USD denominations: $1, $5, $10, $20, $50, $100
- CAD denominations: C$5, C$10, C$20
- Acceptance rate: 96% or greater
- Processing speed: Approximately 3 seconds per bill
- Stacker capacity: 300 bills
- Bezel: Double bezel, 73mm
- Accepted bill width: 62–72mm
- Operating temperature: -10°C to 55°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–95% RH, non-condensing
- Installation: Indoor
- Additional operation: Auto-calibration
Compatible platforms
This validator is suited to indoor vending machines, amusement machines, and other equipment built around the ICT104U serial communication protocol. Its 300-bill cashbox capacity fits medium-traffic installations where regular bill collection is required but a larger stacker is unnecessary.
Integration notes
The unit requires 12V DC power and an ICT104U (RS232) host interface. Operators can select the USD or CAD firmware configuration through DIP switch settings. Confirm that the host controller supports the ICT104U protocol, that the cabinet provides clearance for the 73mm double bezel, and that accepted notes fall within the 62–72mm width range. Environmental ratings apply to indoor installation, with humidity maintained below condensing conditions.
Ordering & support
E & D Trading provides the V7P-2UA31UC7 for replacement installations, new equipment builds, and currency-conversion projects. Same-day quotes are available for volume requirements, with freight coordination available for qualified orders.
Technical Specifications
| Brand | ICT |
| Model Series | V7 Series |
| Voltage | 12v |
| Supported Protocols | Serial |
| Stacker Capacity | 300 Bills |
| Bezel Type | Double Bezel |
| Condition | New |
