Description

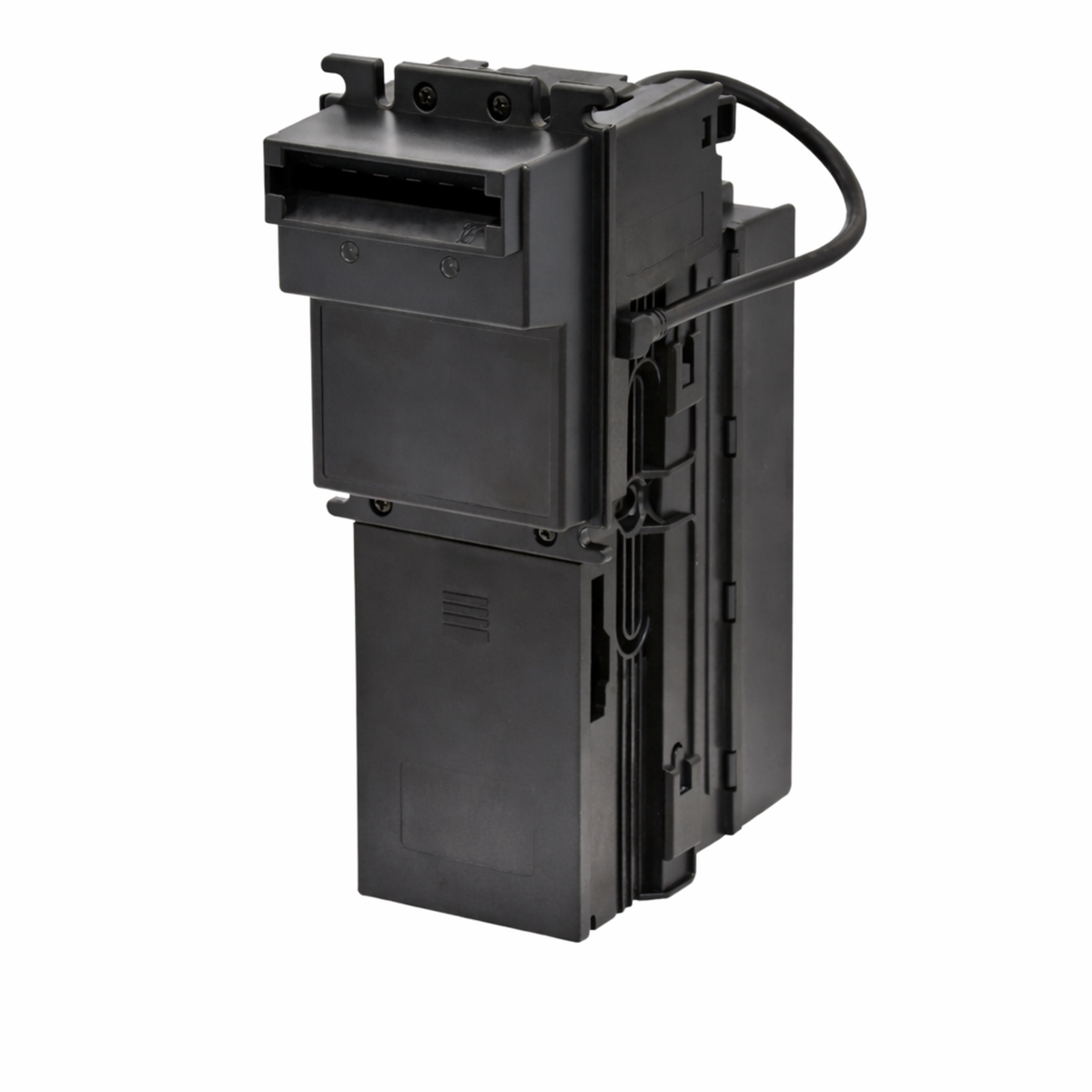

ICT V7P-2UA31US6 Bill Validator — 12V USD Validator with 300-Bill Stacker
The ICT V7P-2UA31US6 is a V7 Series bill validator configured for U.S. Dollar processing in vending and amusement equipment. This 12V unit uses the ICT104U (RS232) serial protocol and accepts bills through a four-way insertion path. E & D Trading supplies this new ICT validator as an authorized distributor for OEM builders, equipment integrators, and route operators requiring a ready-to-install validation and stacking assembly.
Specifications
- Manufacturer: ICT
- Model: V7P
- SKU: V7P-2UA31US6
- Currency: United States Dollar (USD)
- Accepted denominations: $1, $5, $10, $20, $50, and $100
- Operating voltage: 12V DC
- Protocol: ICT104U (RS232); serial interface
- Acceptance rate: 96% or higher
- Transaction speed: Approximately 3 seconds per bill
- Stacker: 300-bill capacity
- Bezel: Double bezel, 70 mm
- Bill width: 62–70 mm
- Insertion: Four-way bill acceptance
- Calibration: Automatic calibration for validation accuracy
- Operating temperature: 0°C to 55°C
- Storage temperature: -30°C to 70°C
- Humidity: 30%–85% RH, non-condensing
- Installation: Indoor
- Cashbox: Non-lockable
- Recycler: Not included; validator is configured for bill acceptance and stacking
- Condition: New
Compatible platforms
The V7P-2UA31US6 fits indoor vending machines, amusement equipment, and other payment systems wired for 12V DC operation and the ICT104U (RS232) communication protocol. Its 70 mm double bezel supports guided insertion at the equipment face, while the 300-bill stacker suits installations with moderate cash volume.
Integration notes
Confirm the host controller’s ICT104U (RS232) compatibility, 12V supply, bezel opening, and bill path clearance before installation. The validator accepts bills from 62–70 mm wide and requires a non-condensing operating environment within the stated temperature and humidity ranges. Automatic calibration supports consistent operation during service and deployment.
Ordering & support
E & D Trading provides the ICT V7P-2UA31US6 for equipment replacement, new builds, and fleet maintenance. Same-day volume quotes and freight coordination are available for OEM, integrator, and route-operator orders.
Technical Specifications
| Brand | ICT |
| Model Series | V7 Series |
| Voltage | 12v |
| Supported Protocols | Serial |
| Stacker Capacity | 300 Bills |
| Bezel Type | Double Bezel |
| Condition | New |
