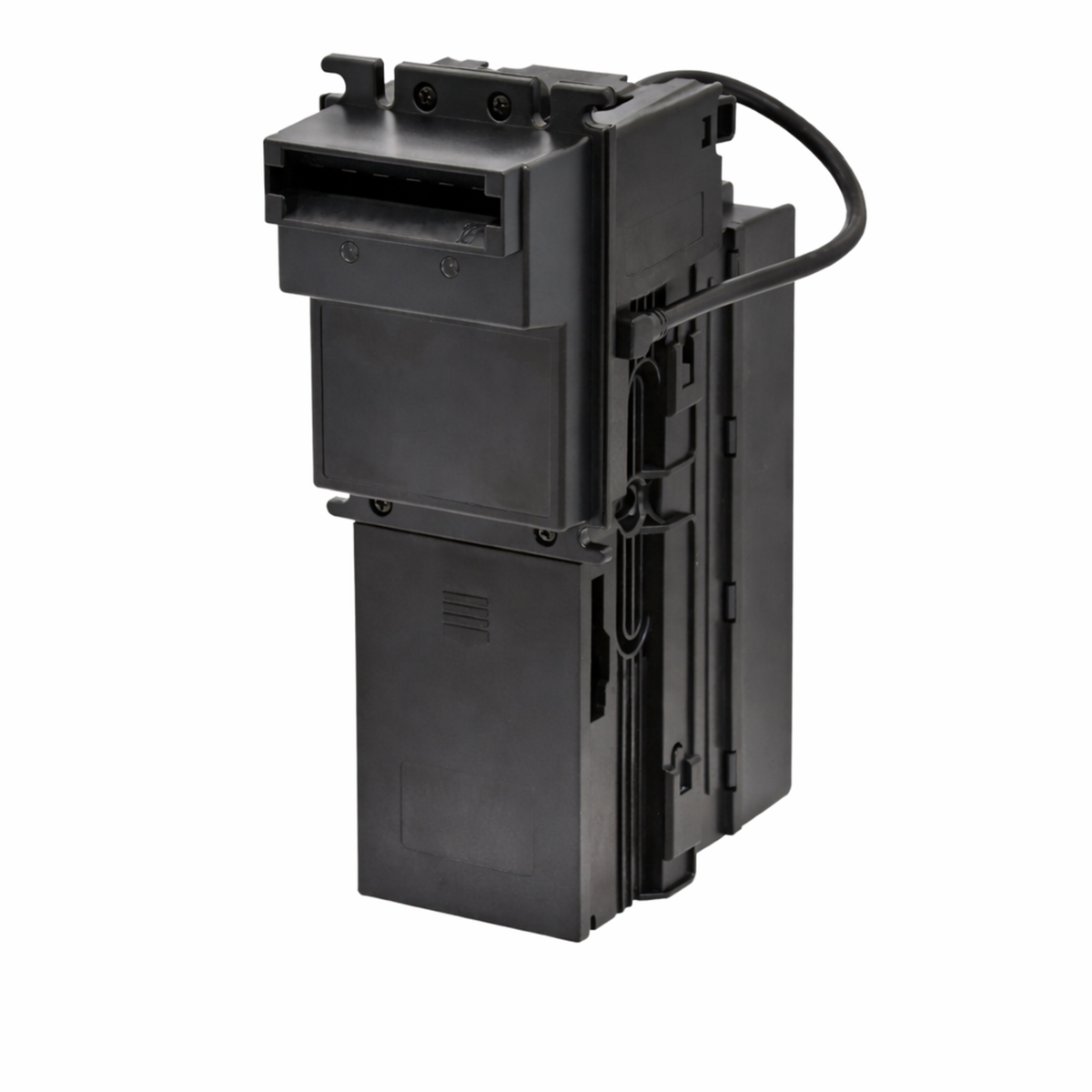

ICT V7P-3MA32EU3 Bill Validator 24V MDB 300 Bill Stacker Double Bezel Euro

ICT V7P-3MA32EU3 Bill Validator — 24V MDB Euro Acceptor

The ICT V7P-3MA32EU3 is a V7 Series bill validator configured for 24V DC vending and amusement equipment. It accepts Euro currency through an MDB interface and uses a 300-bill stacker with a 73mm double bezel. E & D Trading supplies this new ICT unit to OEM builders, integrators, and route operators requiring a factory-specified validator for indoor installations.

Specifications

• Manufacturer: ICT
• Model: V7P
• SKU: V7P-3MA32EU3
• Condition: New
• Operating voltage: 24V DC
• Interface: MDB
• Currency: Euro (EUR)
• Accepted denominations: €5, €10, €20
• Denomination acceptance: EUR: €5-€20
• Acceptance rate: 96% or greater
• Processing time: Approximately 3 seconds per bill
• Stacker capacity: 300 bills
• Bezel: Double bezel, 73mm
• Bill insertion: Four-way insertion
• Accepted bill width: 62–72 mm
• Calibration: Automatic calibration
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 70°C
• Humidity: 30%–95% RH, non-condensing
• Installation: Indoor
• Cashbox: Not lockable
• Recycler: No

Fitment

This validator is intended for modern vending machines and amusement machines equipped for MDB communication and 24V DC operation. The Euro configuration is appropriate for European-region applications using €5, €10, and €20 notes. Its double-bezel format supports bill guidance at the machine face, while the 300-bill stacker suits medium-traffic equipment.

Integration notes

Confirm that the host controller supplies 24V DC and supports the MDB protocol before installation. The 62–72 mm bill-width range, four-way insertion capability, and automatic calibration should be considered during cabinet, bezel, and service-access planning. Install indoors and keep operation within the stated temperature and non-condensing humidity limits. The unit is a validator and stacker only; it does not recycle bills and does not include a lockable cashbox.

Ordering & support

E & D Trading is an authorized distributor and reseller for ICT payment equipment. Request a same-day quote for volume requirements, and contact E & D Trading for freight coordination, application review, and availability of the ICT V7P-3MA32EU3.
