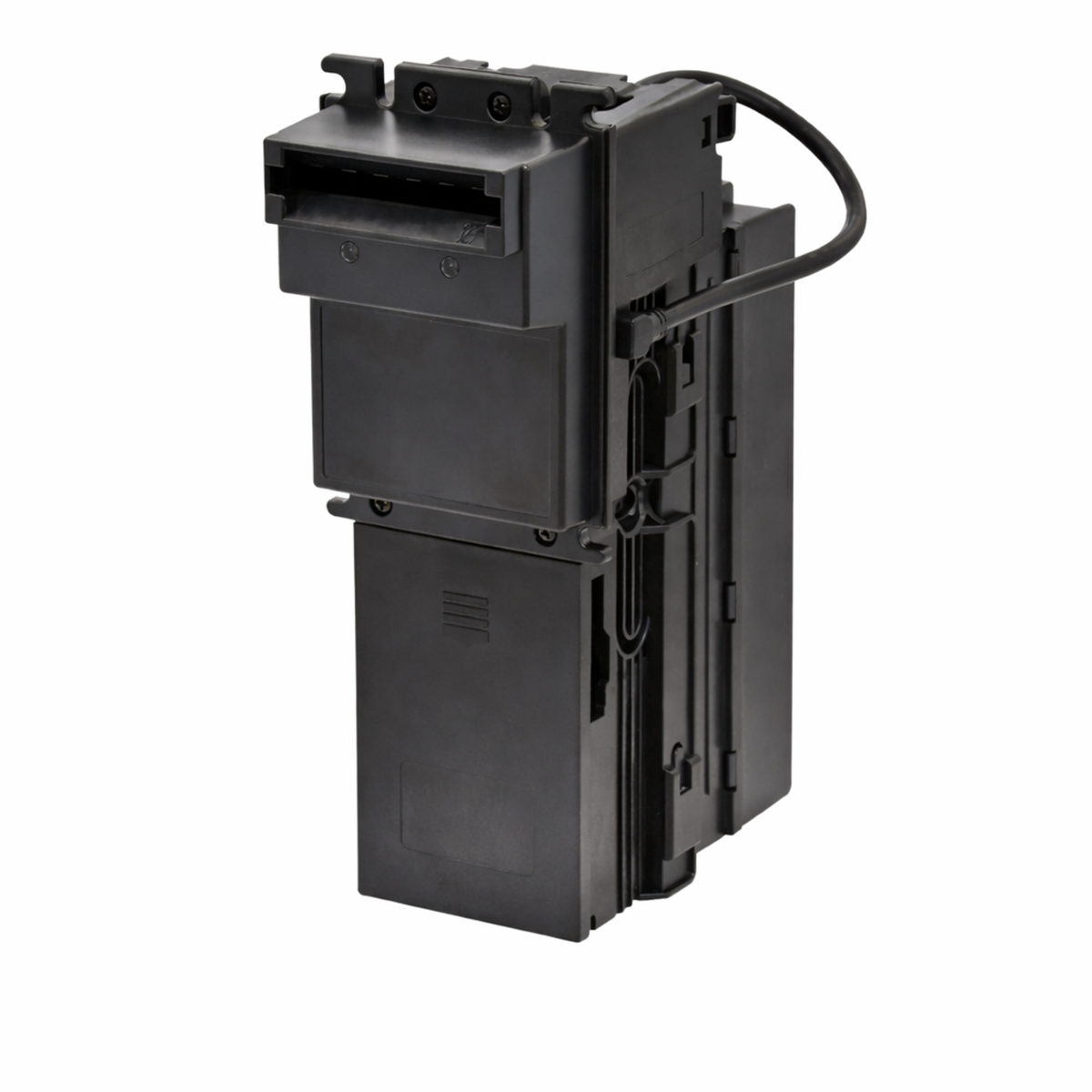

ICT V7P-3MA62CA31 Bill Validator 34V MDB 600 Bill Stacker Standard Bezel CAD

ICT V7P-3MA62CA31 Bill Validator — 34V MDB Validator with 600-Bill Stacker

The ICT V7P-3MA62CA31 is a V7P Series bill validator configured for Canadian Dollar (CAD) currency handling. Its 34V DC power requirement, MDB interface, standard 73mm bezel, and high-capacity cashbox configuration support integration into vending and amusement equipment. E & D Trading supplies this new ICT validator as an authorized distributor for OEM builders, equipment integrators, and route operators requiring a Canadian-market bill acceptance solution.

Specifications

• Manufacturer: ICT
• Model: V7P
• Part number: V7P-3MA62CA31
• Currency: Canadian Dollar (CAD)
• Accepted denominations: C$5, C$10, C$20
• Acceptance rate: 96% or higher
• Processing speed: Approximately 3 seconds per bill
• Interface: MDB
• Operating voltage: 34V DC
• Stacker capacity: 600 bills
• Bezel: Standard, 73mm
• Bill insertion: Four-way
• Calibration: Automatic calibration for consistent validation accuracy
• Operating temperature: 0°C to 55°C
• Storage temperature: -30°C to 70°C
• Humidity: 30%–95% RH, non-condensing
• Installation: Indoor use
• Recycler: No
• Lockable cashbox: No

Compatible platforms

This validator is intended for indoor vending machines and amusement equipment using an MDB control system and 34V DC supply. The CAD configuration is suited to Canadian-market installations that accept C$5, C$10, and C$20 notes. The standard 73mm bezel supports equipment designed for that bezel format.

Integration notes

Confirm that the host machine provides the required 34V DC input and MDB communication before installation. Bills can enter from any of four directions, while the 600-bill stacker provides additional collection capacity for higher-traffic locations. Keep the unit within its stated temperature and non-condensing humidity limits; this model is specified for indoor installation only.

Ordering & support

E & D Trading provides the ICT V7P-3MA62CA31 for replacement, retrofit, and new equipment integration. Volume quotations are available, with same-day quote support and freight coordination for qualified orders.
