ICT WEL-R0003 Replacement Cable
SKU: WEL-R0003
$14.95
In stock
Buy on BillAcceptors.usSecure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
The ICT WEL-R0003 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-R0003 |
|---|---|
| Connectors | TMT 2×4, Molex 51004-10P, AMP 172340-1 |
| Function | Power & data communication |
| Interface | RS232 (UART) |
| Voltage | 12V DC |

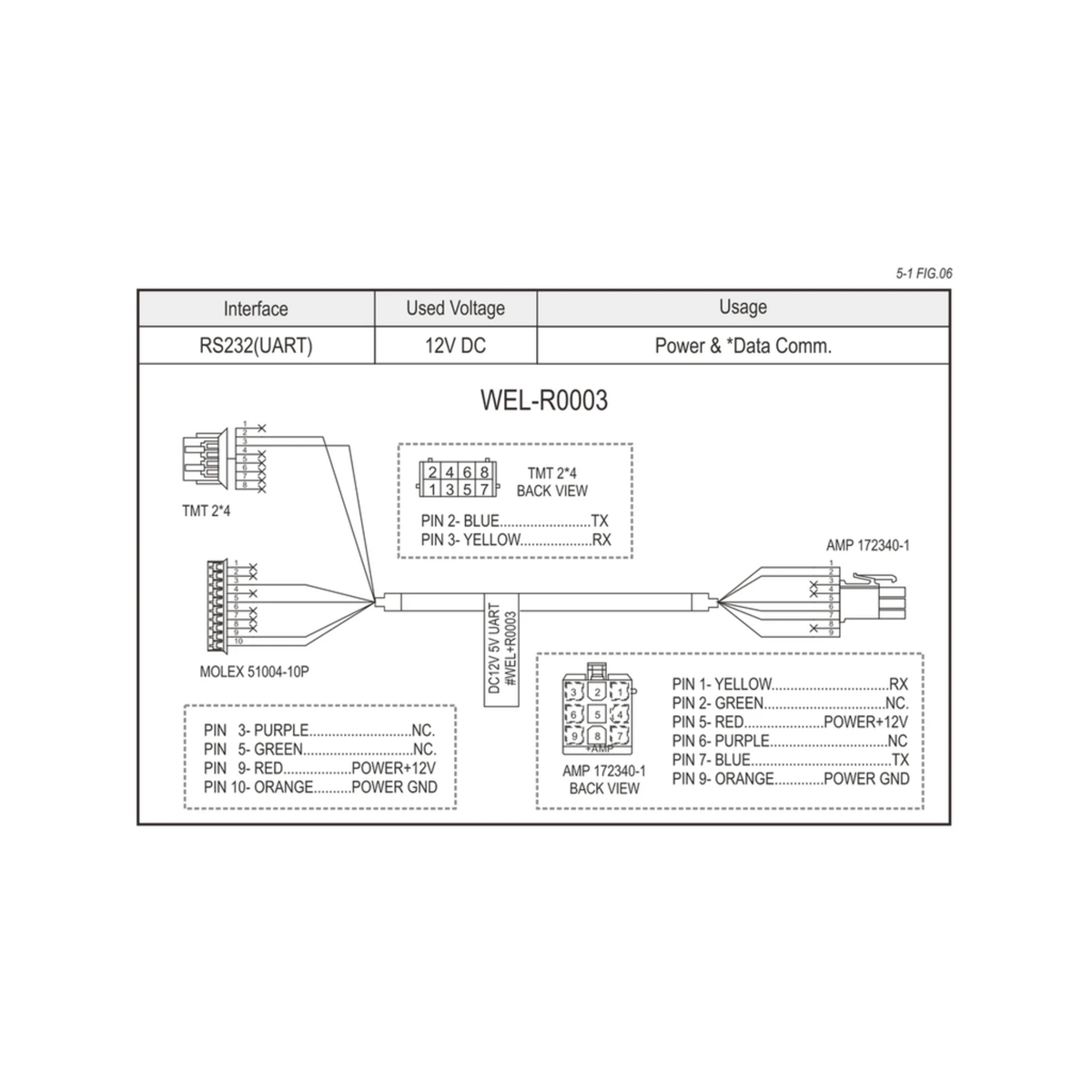

Wire-by-wire: Molex 51004-10P
| Signal | Pin | Wire colour |
|---|---|---|
| N.C | 3 | purple |
| N.C | 5 | green |
| Power +12V | 9 | red |
| Power GND | 10 | orange |

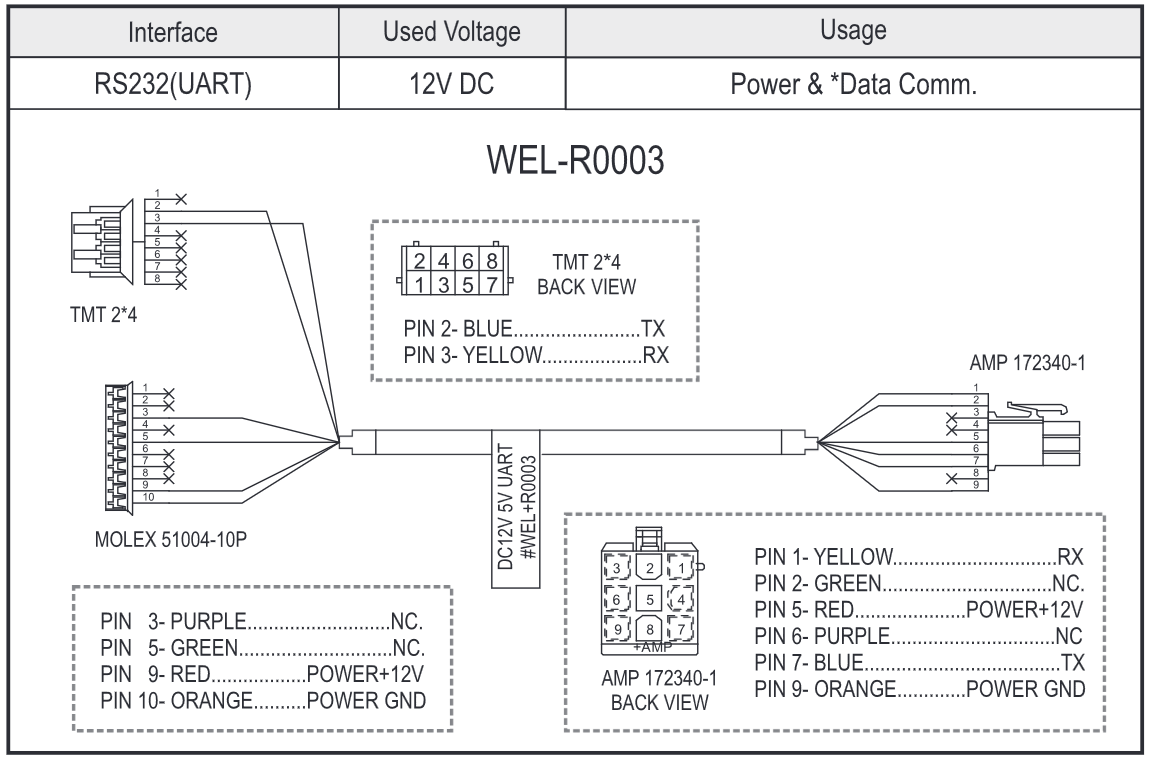

Wire-by-wire: AMP 172340-1, back view
| Signal | Pin | Wire colour |
|---|---|---|
| RX | 1 | yellow |
| N.C | 2 | green |
| Power +12V | 5 | red |
| N.C | 6 | purple |
| TX | 7 | blue |
| Power GND | 9 | orange |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
