Description
ICT WEL-RM008 Cable — 117V AC Interface Harness

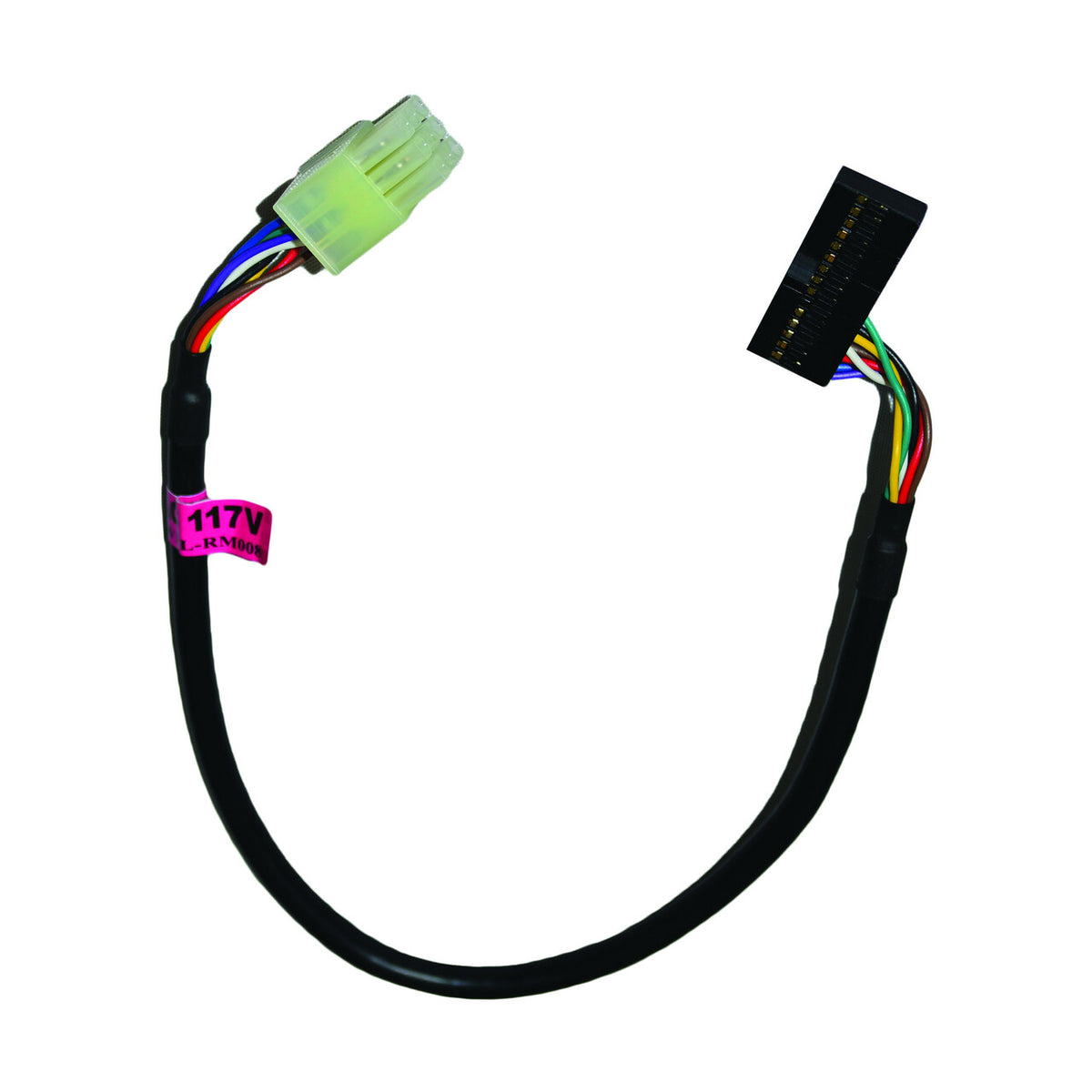

The ICT WEL-RM008 is a replacement cable for the AHP 172340-1 interface, supporting STD Pulse and ICT RS232 protocols. It provides 117V AC power and control wiring for compatible ICT payment and control equipment. E & D Trading supplies this factory-configured harness to OEM builders, integrators, and route operators.
Specifications
- SKU: WEL-RM008
- Interface: Pulse, RS232 for ICT protocol, and USB for ICT protocol
- Voltage: 117V AC; source marking also states AC 1.17V
- Cable: 2464 Z2 AWG 5C CABLE
- Assembly reference: AAP 173xH
Compatible platforms
Compatible ICT platforms include A6, A6E, A7, PA7, PA7E, TAO-A, TAO-V, V7, and V7P.
Integration notes

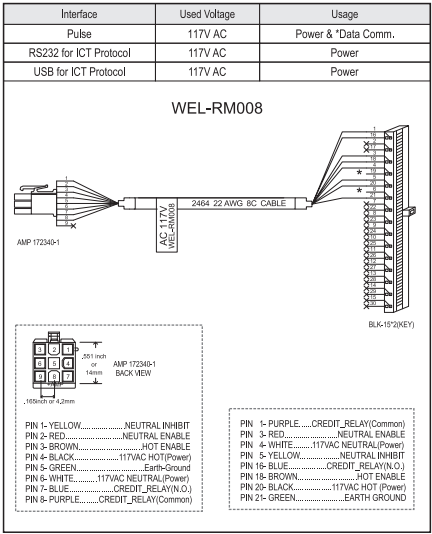

The harness carries power, enable, inhibit, earth, and relay connections. Primary pin configuration: Pin 1 yellow—neutral inhibit; 2 red—neutral enable; 3 brown—hot enable; 4 black—117VAC hot; 5 green—earth; 6 white—117VAC neutral; 7 blue—GREDT_RELAV NO.; 8 purple—GREDT_RELAV common. Additional configuration: Pin 1 purple—GREDT_RELAV common; 3 red—neutral enable; 4 white—117VAC neutral; 5 yellow—neutral inhibit; 16 blue—GREDT_RELAV NO.; 18 brown—hot enable; 29 black—117VAC hot; 21 green—earth ground.
Ordering & support
E & D Trading is an authorized ICT reseller. Request same-day volume pricing and freight coordination for replacement or production requirements.
Technical Specifications
| Brand | ICT |
| Model Series | A6 / A6E Series, PA7 Series, TAO-A Series |
