ICT WEL-RNK10-1 Replacement Cable
SKU: WEL-RNK10-1
$18.95
In stock
Buy on BillAcceptors.usSecure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
The ICT WEL-RNK10-1 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RNK10-1 |
|---|---|
| Cable | 2464 22AWG 4C cable |
| Connectors | Black D-SUB female; black ICT Protocol connector, part WEL-RNK10-1-B |
| Interface | RS232 or ICT Protocol |
| Voltage | 12V DC |

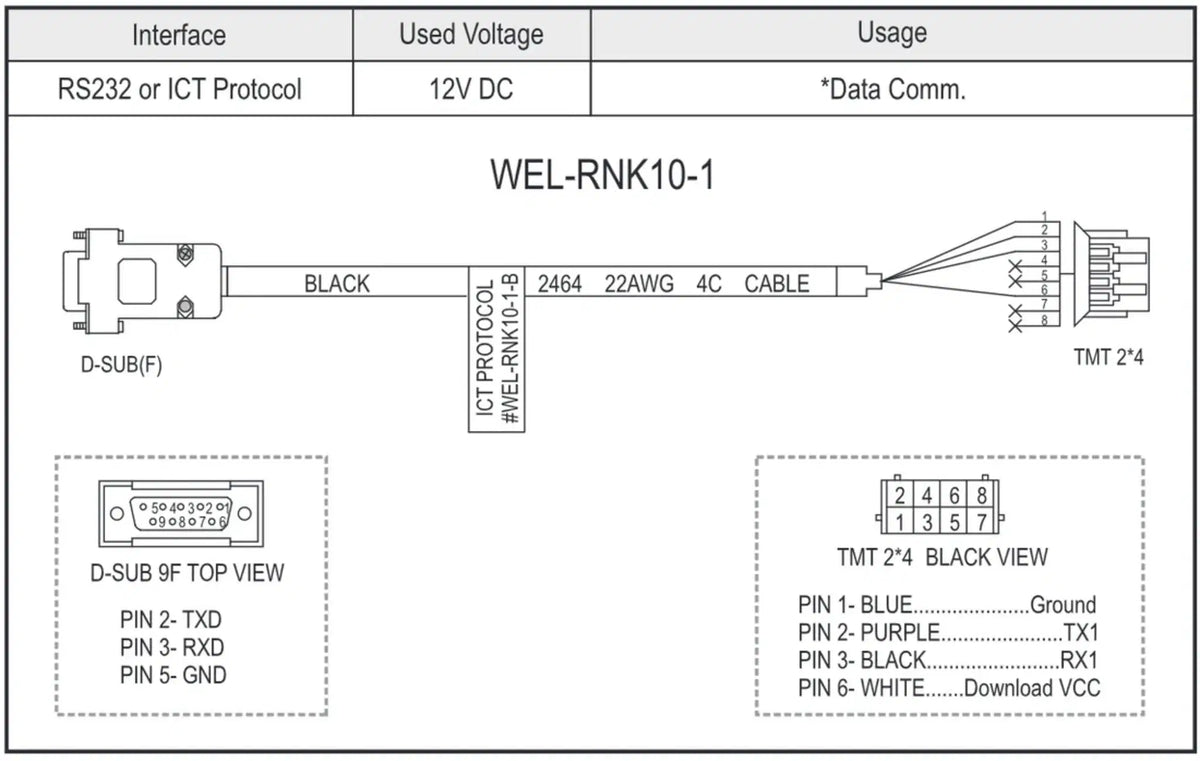

Wire-by-wire: On the D-SUB 9F top view,
| Signal | Pin | Wire colour |
|---|---|---|
| TXD | 2 | carries |
| RXD | 3 | carries |
| GND | 5 | is |
Wire-by-wire: At the TMT 2*4 back view,
| Signal | Pin | Wire colour |
|---|---|---|
| blue ground | 1 | is |
| purple TX1 | 2 | is |
| black RX1 | 3 | is |
| white Download VCC | 6 | is |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
