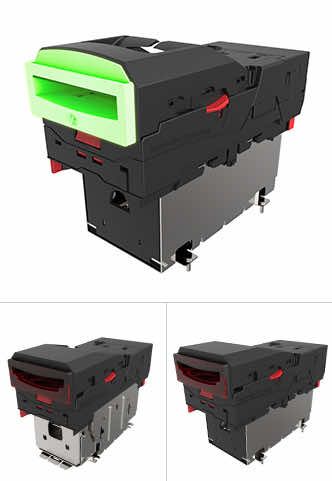

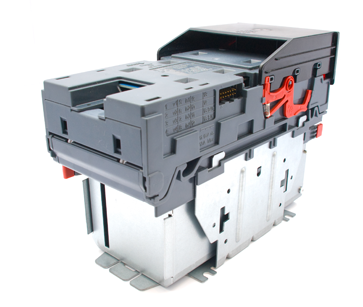

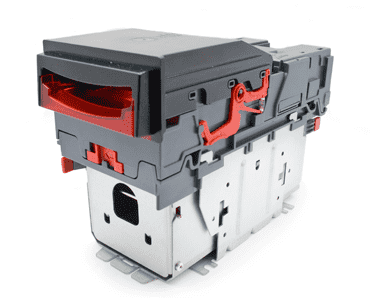

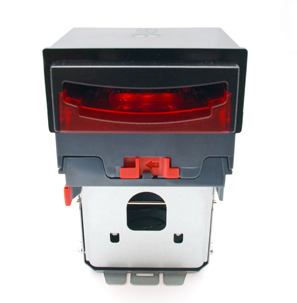

Innovative Technology NV9 USB Bill Acceptor

The NV9 Spectral is a highly secure and technologically advanced banknote validator that delivers casino-level security at a mid-range price. Its state-of-the-art spectral sensors provide high-resolution imaging by scanning 1.28 million data points to authenticate banknotes. This versatile validator can be mounted both horizontally and vertically, with multiple cashbox and bezel options to suit various applications. A micro SD card allows for seamless data logging.

An optional note float module can be added for note recycling capabilities. For more details, see the NV22S model.

Key Features

• High-Resolution Imaging: 1.28 million data points for superior authentication
• Faster Processing: Improved note-to-note speed
• Stained Note Detection: Ensures secure and reliable operation
• Anti-Strimming Technology: Optical and mechanical safeguards against fraud
• Modular Design: Compatible with add-ons like recyclers or ticket printers

Technical Specifications

• Power Requirements:
  • Standby: 0.2 A
  • Running: 1 A
  • Peak: 2.5 A
• Bezel Options: Rainbow illumination; available in 66, 69, or 82mm widths
• Mounting: Horizontal or vertical (up/down)
• Cashbox Options: 300/600 slide, 300/600 clip, 300 lockable
• Protocols: SSP, ccTalk
• Interfaces: USB, Open Collector
• MCBF: 200,000 cycles
• Weight: 1.4 kg
