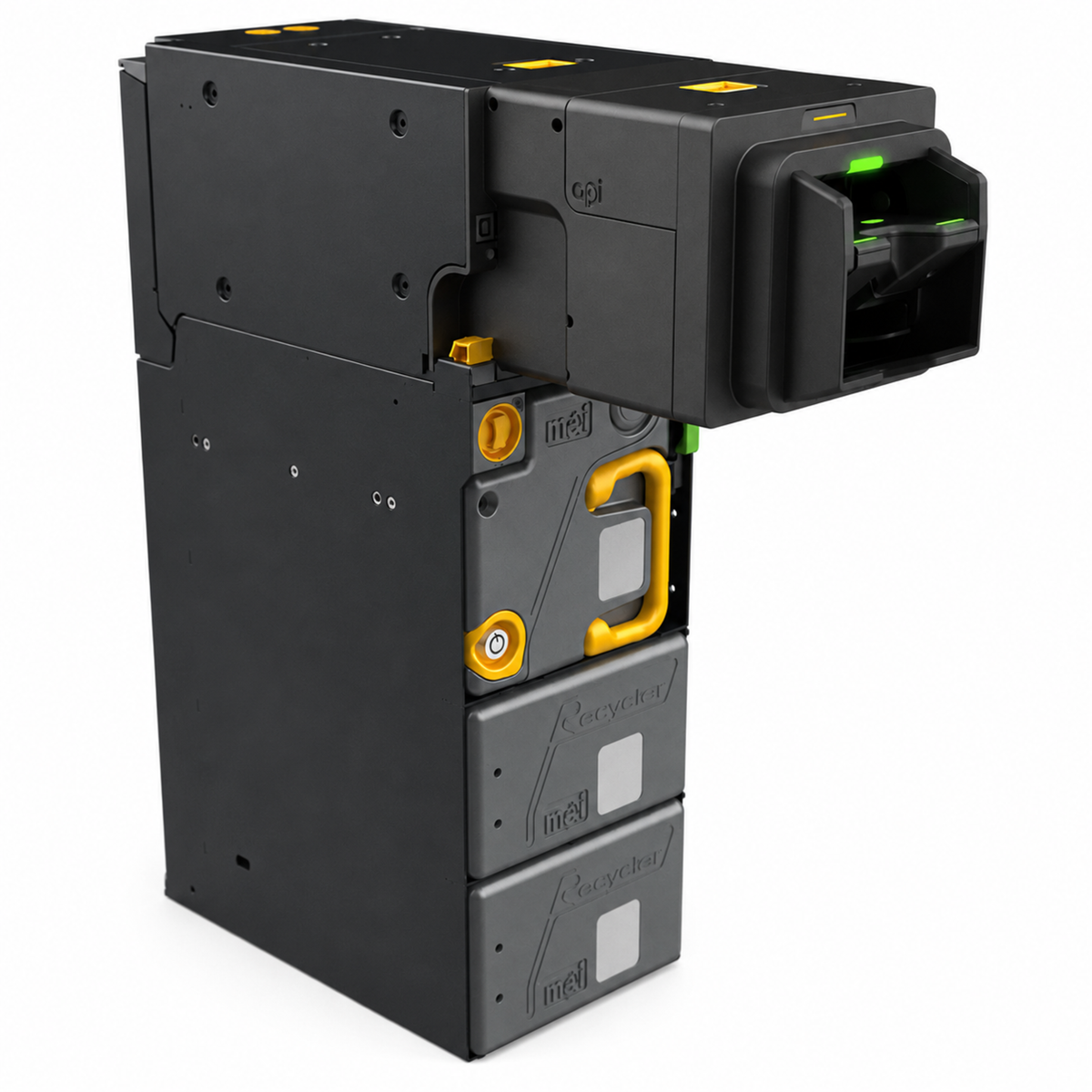

MEI BNR BNF420 S Banknote Recycler Full Unit Main Module B2 with Chassis

MEI BNR BNF420 S Banknote Recycler Full Unit Main Module B2 with Chassis

The BNRBNF420SB2 is a complete MEI BNR/BNF Advance banknote recycler assembled with the B2 main module and recycler chassis. It validates, stores, recycles, and dispenses banknotes for self-service equipment and other professional cash-management systems. E & D Trading supplies this full-unit configuration as an authorized Crane MEI reseller for OEM builders, integrators, and route operators.

Specifications

• Product type: Banknote recycler full unit
• Series: BNR/BNF Advance
• Configuration: BNR BNF420 S
• Main module: B2
• Unit type: Full unit with integrated recycler chassis
• Manufacturer: MEI; brand: Crane MEI
• Recycler: TRUE
• Interface: USB
• Validation method: Optical validation sensors
• Note validation width: 60–83 mm
• Note validation length: 120–190 mm
• Recycled denominations: Up to 6
• Note memory capacity: Up to 150 notes (four ways)
• Acceptance rate: 98% or higher
• Power requirement: 24 VDC (-10% / +20%)
• Current consumption, standby: 0.5A
• Current consumption, accepting: 8A
• Operating temperature: 0°C to 60°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 15% to 95%
• Firmware updates: Remote software updates
• Weight: Up to 25.7 kg (with cashbox)
• Compliance: UL / cUL recognized component to UL 756 and CSA 128
• Certification: CB certification to IEC 60950

Compatible platforms

This unit is configured for the MEI BNR/BNF Advance platform and is intended for self-service applications requiring secure banknote processing, recycling, and dispensing. Its multi-denomination storage supports integrated cash management in compatible equipment.

Integration notes

Provide a 24 VDC supply within the specified tolerance and connect through the USB communication interface. Confirm cabinet clearance, chassis mounting, cashbox handling, note dimensions, and application-specific denomination programming before installation. Remote firmware and software updates support service administration after deployment.

Ordering & support

E & D Trading provides the BNRBNF420SB2 as a complete main-module-and-chassis assembly. Contact E & D Trading for same-day volume quotations, application review, and freight coordination.
