Description

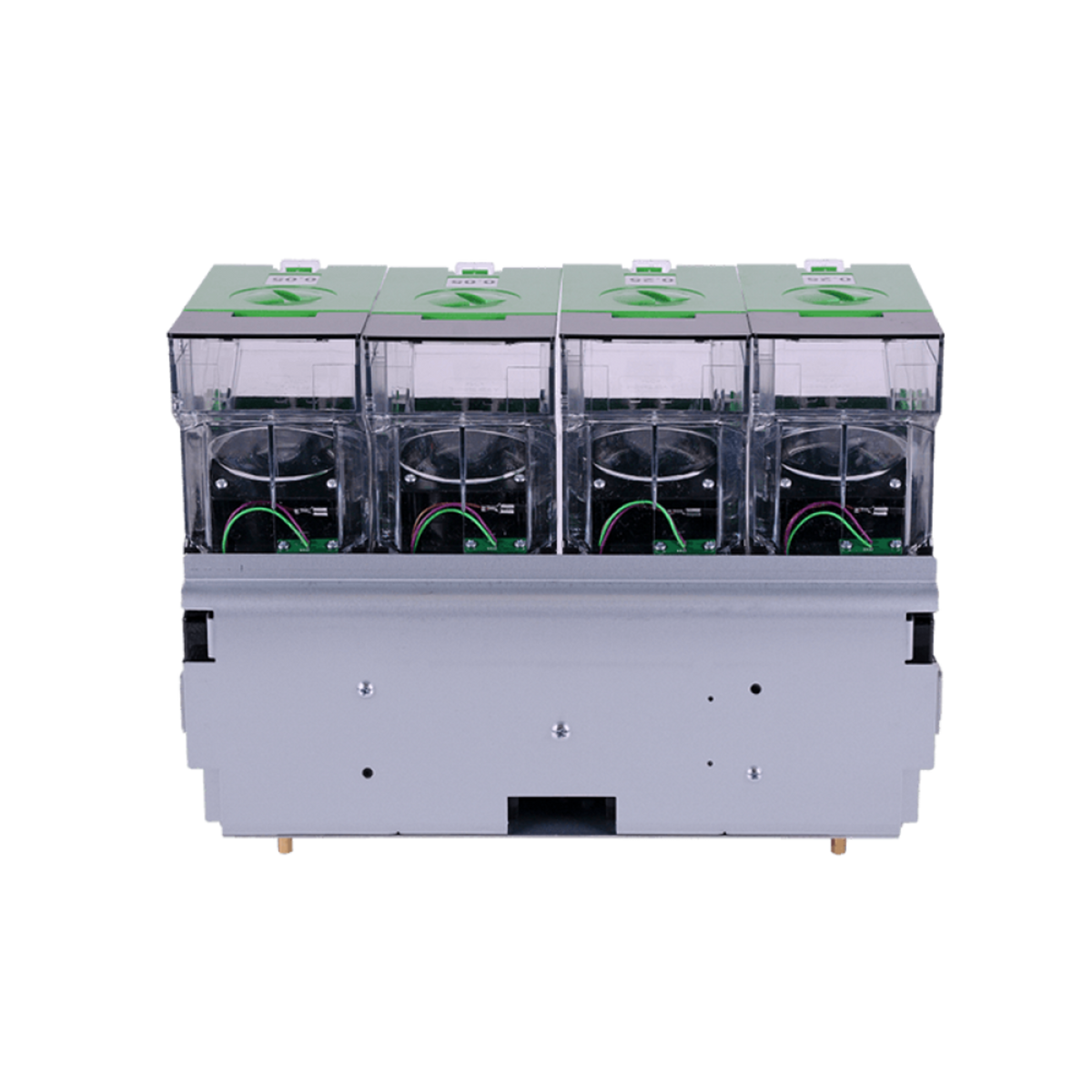

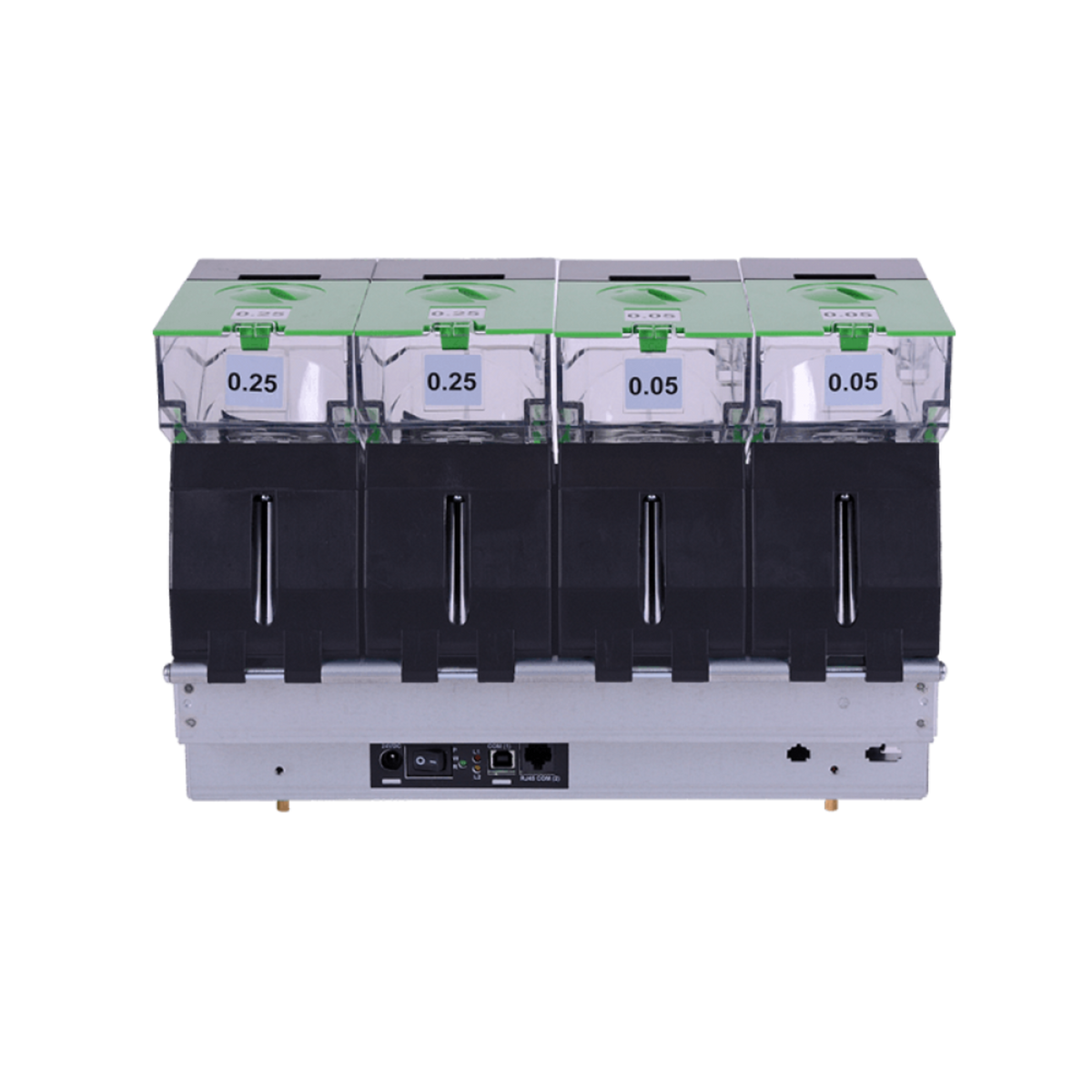

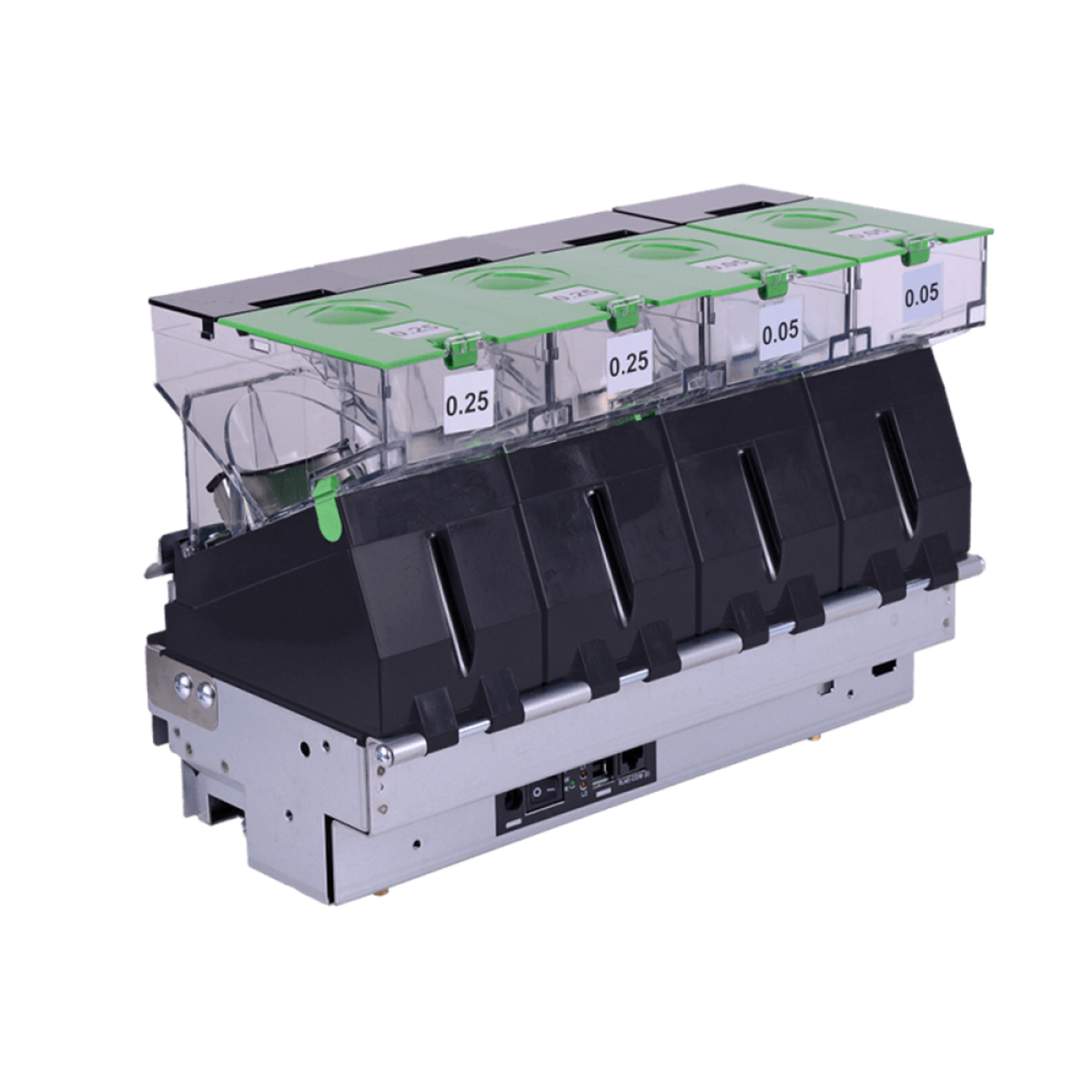

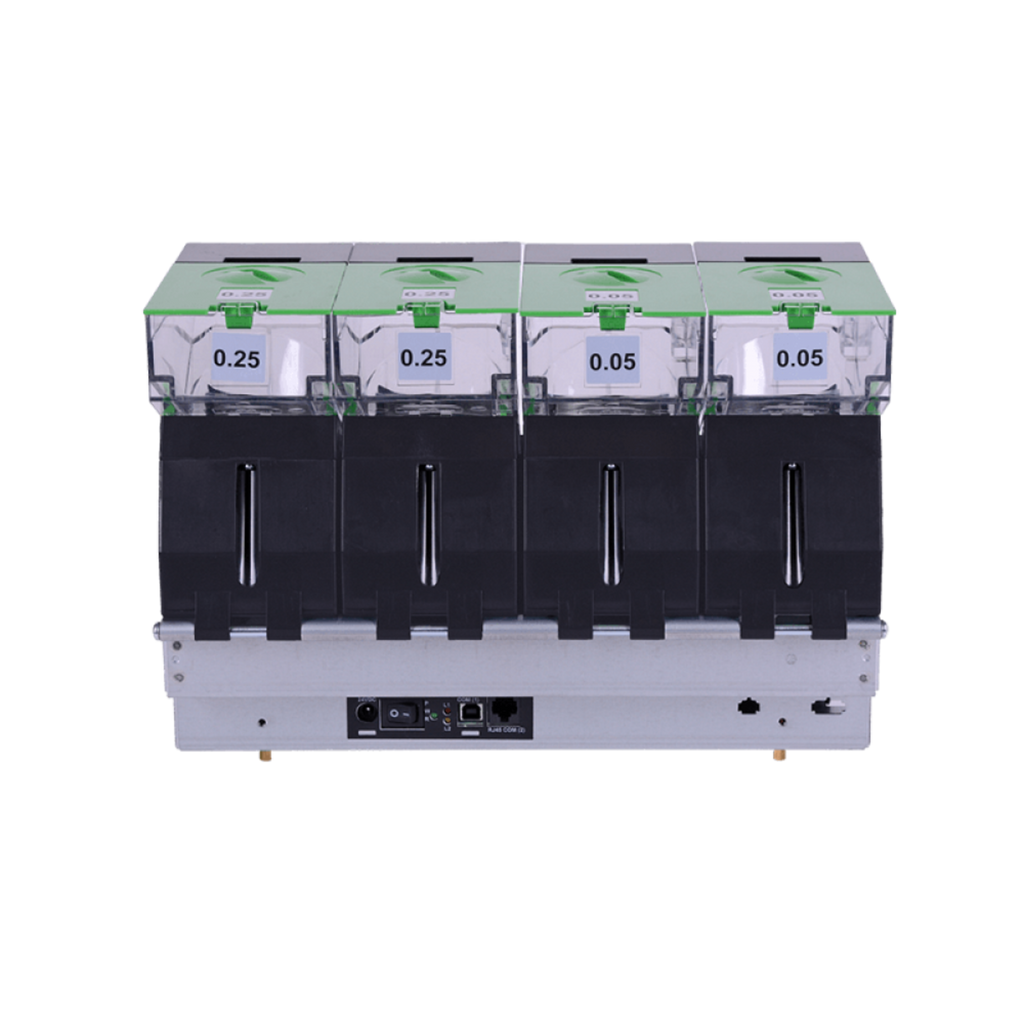

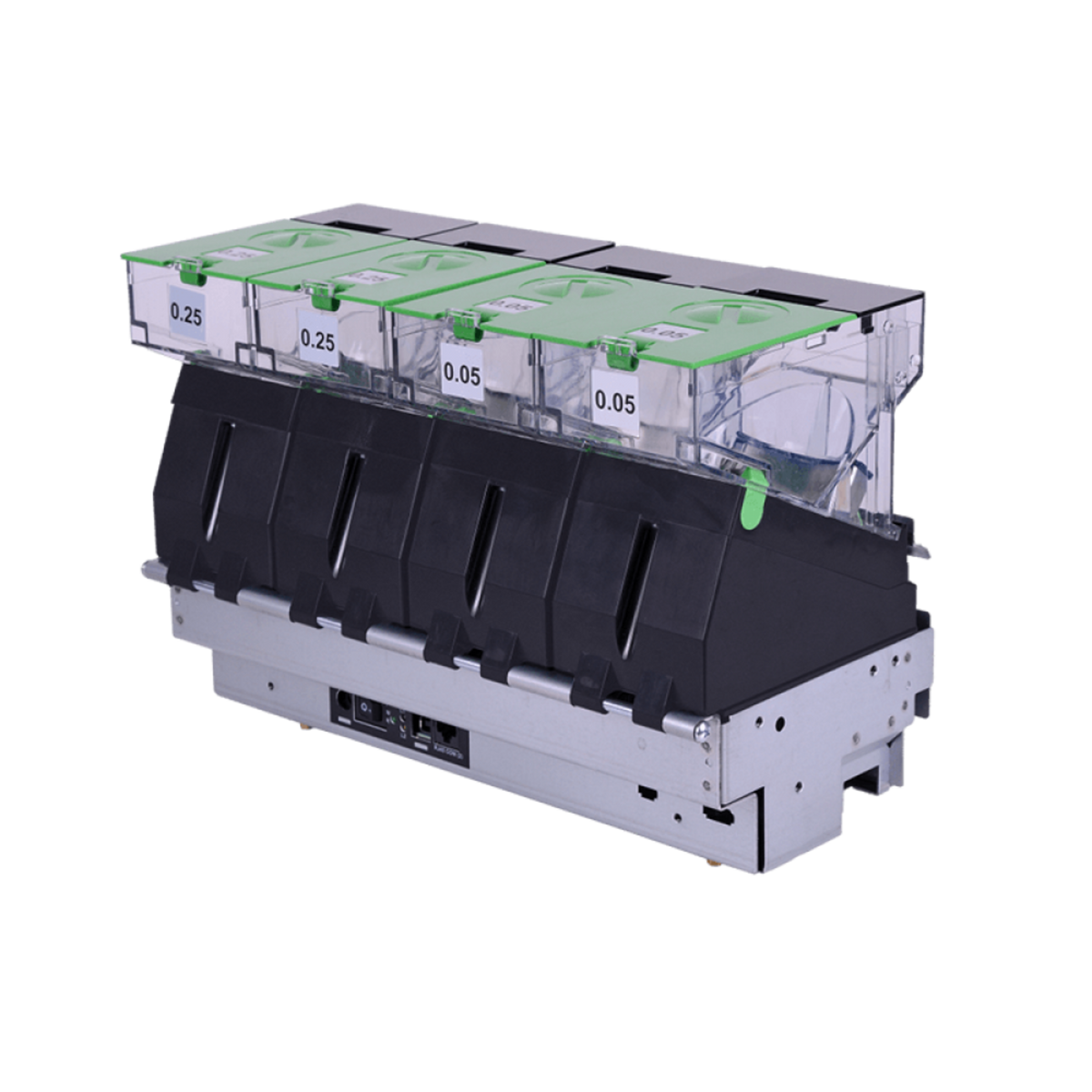

MEI CX-25 4-Hopper Coin Dispenser on 6-Hopper Chassis
The MEI CX-25 is a complete coin dispenser unit configured with four hoppers installed on a six-hopper chassis. This high-capacity platform is built for self-service kiosks, self-checkout equipment, ATMs, and financial service systems that require dependable coin payout. E & D Trading supplies this MEI unit to OEM builders, system integrators, and route operators seeking a serviceable dispenser platform with USB and RS232 connectivity.
Specifications
- Manufacturer: Crane MEI
- Series: MEI CX-25
- Product type: Coin dispenser full unit
- Configuration: 4 hoppers on 6-hopper chassis
- Hopper design: High-capacity configuration
- Coin speed: Depends on hopper configuration
- Coin capacity: Varies by configuration
- Transaction records: Firmware-based transaction logging
- Chassis: Flexible configuration with support for future hopper expansion
- Bin design: Tilting bins for loading and emptying
- Interfaces: RS232 serial port and USB connectivity
- Power requirement: 24V DC
- Maximum current: 1.7 Amps
- Power supply: Single 24V DC external switching power supply
- Compliance: CE, UL, CUL Listed, RoHS
- Condition: New
- Currency type: Coins
Compatible platforms
The CX-25 fits self-service kiosks, self-checkout systems, ATMs, and other financial service equipment requiring automated coin dispensing. The six-hopper chassis accommodates the supplied four-hopper arrangement and provides a platform for configuration expansion where the host equipment and application support it.
Integration notes
This unit requires installation in a compatible host machine. Integrators should verify the required hopper arrangement, coin capacity, payout speed, available RS232 or USB connection, and 24V DC power provision before installation. Firmware transaction logging supports transaction control and security, while tilting bins simplify coin loading, emptying, and cash management. Actual coin speed and capacity depend on the selected hopper configuration.
Ordering & support
E & D Trading is an authorized reseller for MEI equipment and can provide the CX-25 as a complete four-hopper dispenser assembly. Contact E & D Trading for same-day volume quotes, application review, and freight coordination for kiosk, ATM, and self-service equipment projects.
Technical Specifications
| Brand | Crane MEI |
| Condition | New |
