Description

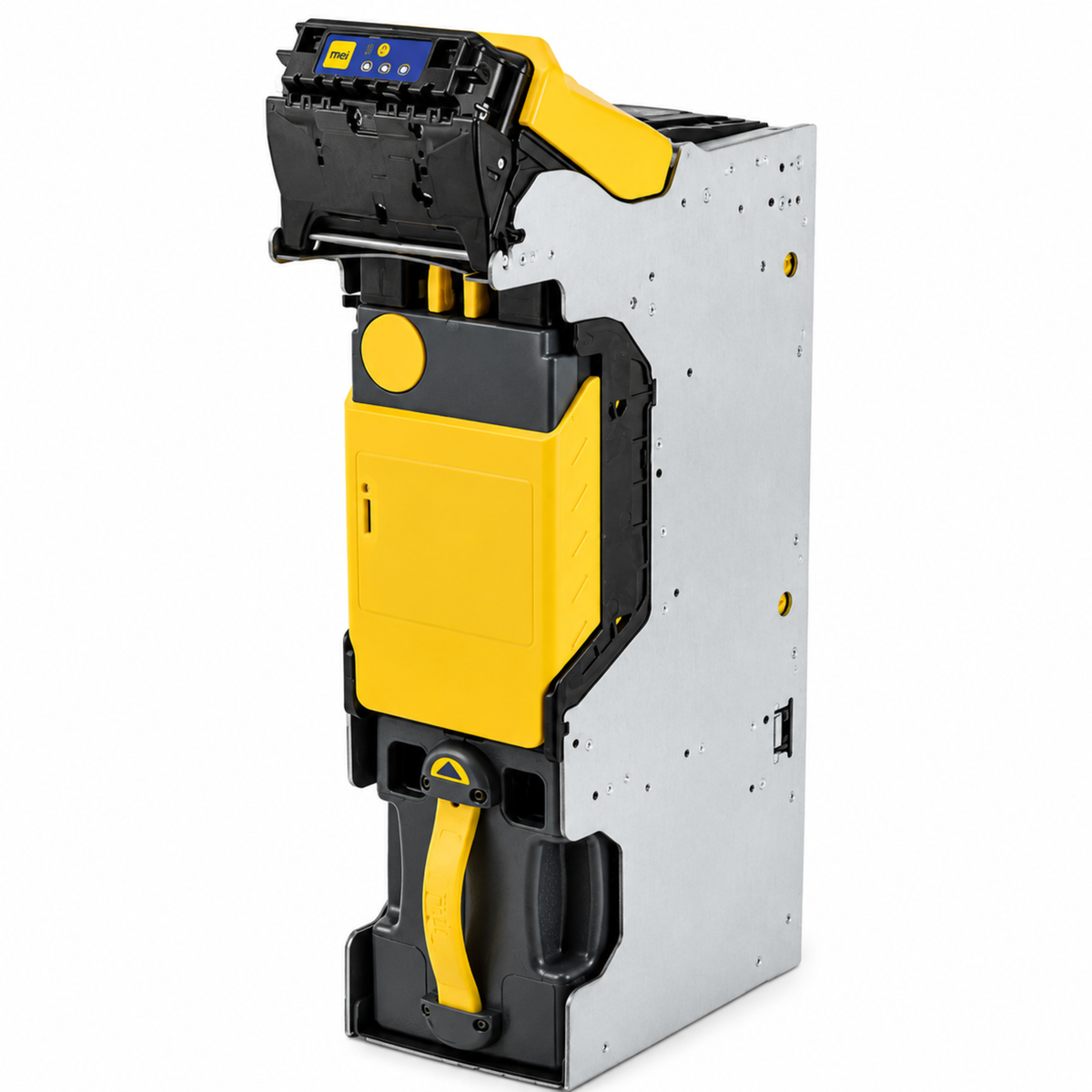

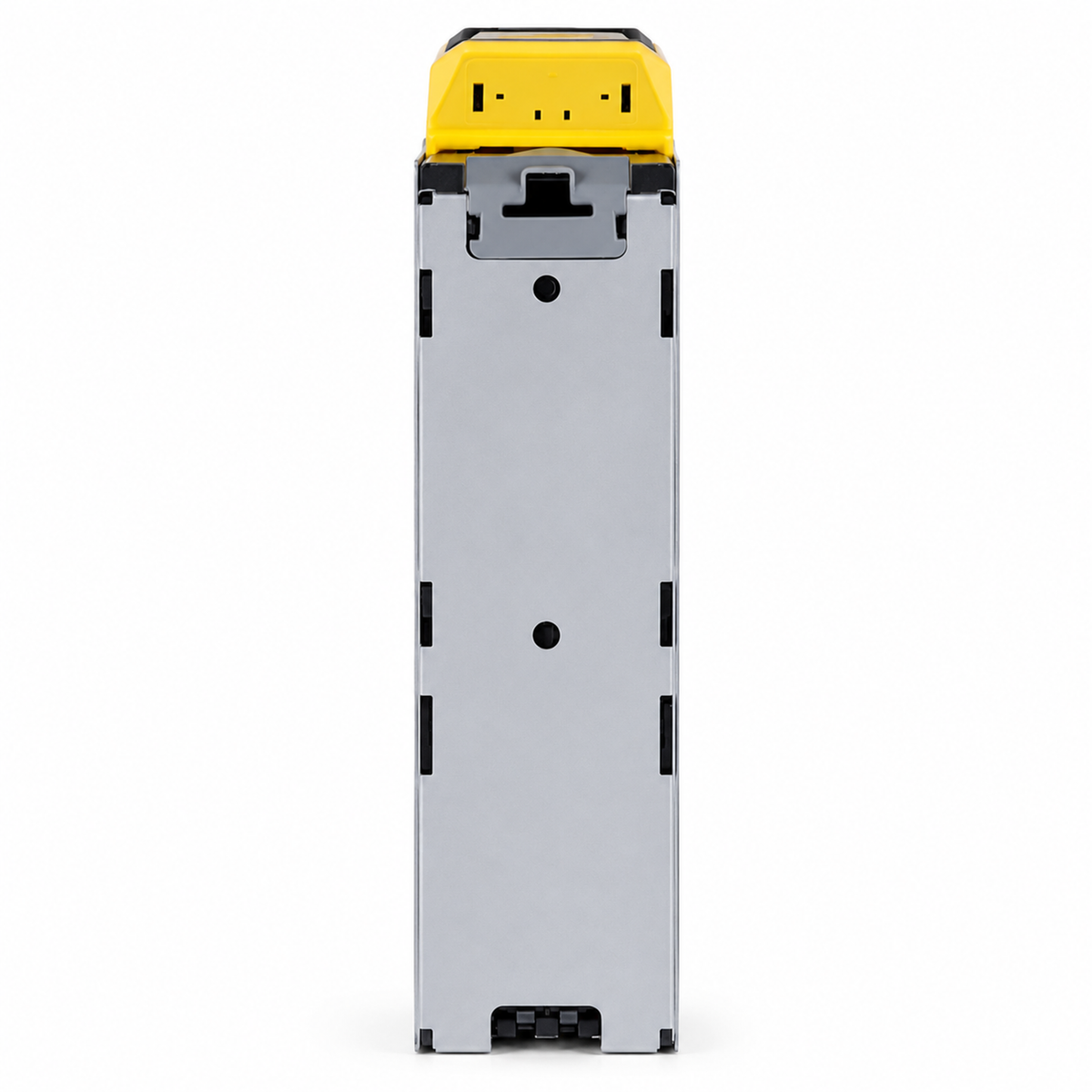

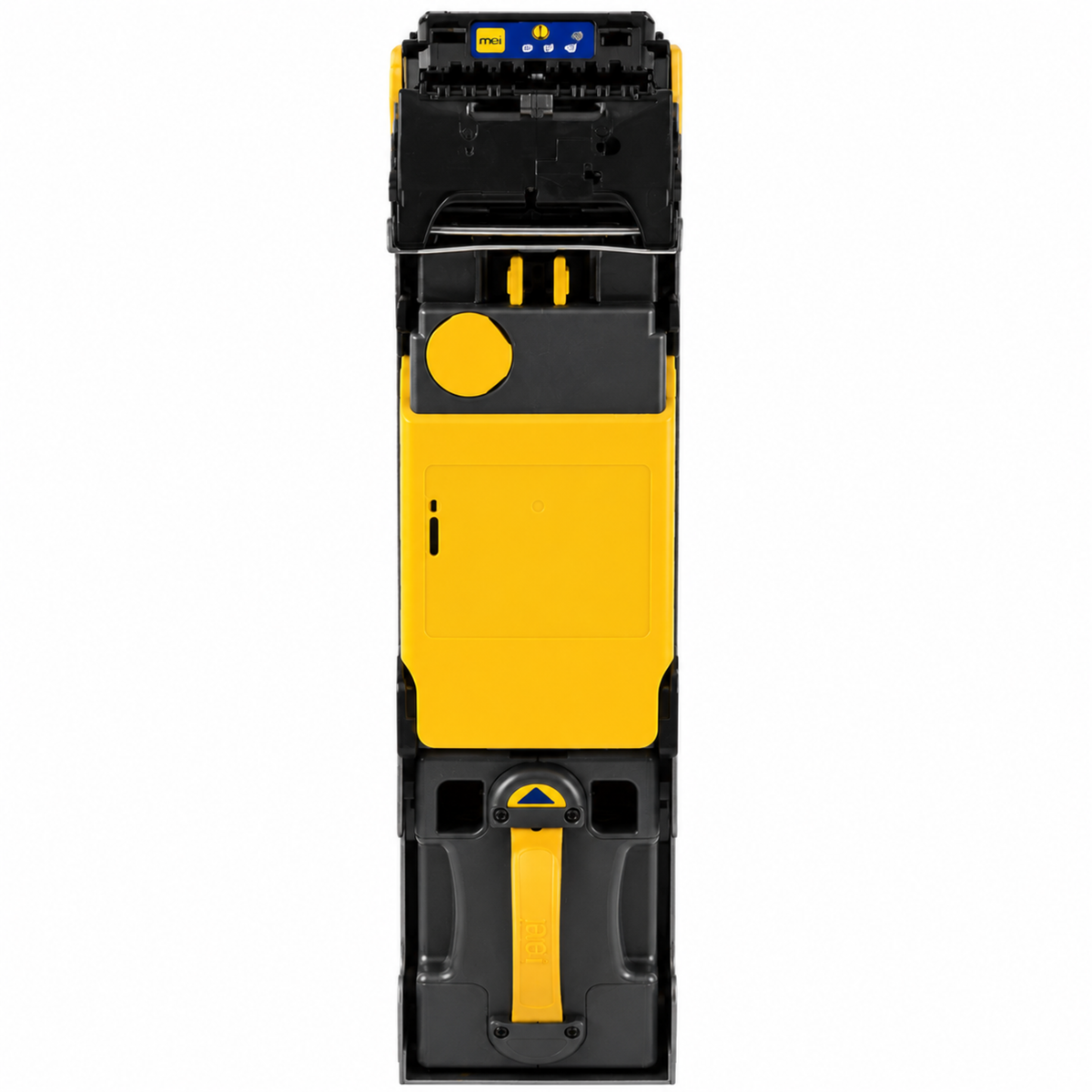

MEI SCR8327M Banknote Recycler Module — SCR Advance™ MNE Configuration
The MEI SCR8327M is a Crane MEI SCR Advance™ banknote recycler module identified by MPN 252803010P1. Its SCNR8327M recycler assembly combines Multi-Note Escrow (MNE), RS232 communication, REBDS protocol support, and a Latch security configuration for controlled note acceptance, holding, recycling, and payout. E & D Trading supplies this new 24 VDC module to OEM builders, system integrators, gaming operators, route owners, and self-service equipment technicians.
Specifications
- Product type: Banknote recycler module
- Manufacturer: Crane MEI
- Series: SCR Advance™
- Model and SKU: SCR8327M
- MPN: 252803010P1
- Recycler assembly: SCNR8327M
- Configuration: MNE (Multi-Note Escrow)
- Interface: RS232
- Protocol: REBDS
- Security type: Latch
- Recycling method: Spiral drum recycling
- Inlet width: Up to 83 mm
- Operating temperature: 0°C to +60°C
- Power supply: 24 VDC (-10% / +20%)
- Maximum current consumption: 6 amps
- Dimensions: 489 mm high × 114 mm wide × 236 mm deep
- Weight: 7.57 kg
- Currency support: Universal
- Consumer zone compliance: ADA / DDA compliant
- Condition: New
- Remote firmware and note set updates supported
Fitment
This module is configured for cash-handling equipment used in gaming, retail, kiosk, and other self-service installations. The compact footprint, anti-skew banknote processing, high first-pass acceptance rate, robust accounting functions, and spiral drum recycler support applications requiring escrow and automated note payout. Its maintenance-oriented construction, remote software updating, and reduced downtime characteristics suit high-use deployments.
Integration notes
System designers should provide 24 VDC within the specified tolerance and allow for up to 6 amps of current consumption. Integration uses the RS232 interface with the REBDS protocol. MNE permits multiple banknotes to be held in escrow, while the Latch configuration provides the specified security arrangement. The unit supports remote firmware and note set updates; confirm host-system compatibility and installation clearances before deployment.
Ordering & support
E & D Trading is an authorized reseller for the MEI SCR8327M. Contact the distributor for same-day volume quotes, application review, replacement planning, and freight coordination. The SCR8327M is supplied as a new SCNR8327M recycler assembly for qualified OEM and service requirements.
Technical Specifications
| Brand | Crane MEI |
| MPN | 252803010P1 |
| Voltage | 24v |
| Condition | New |
