Overview

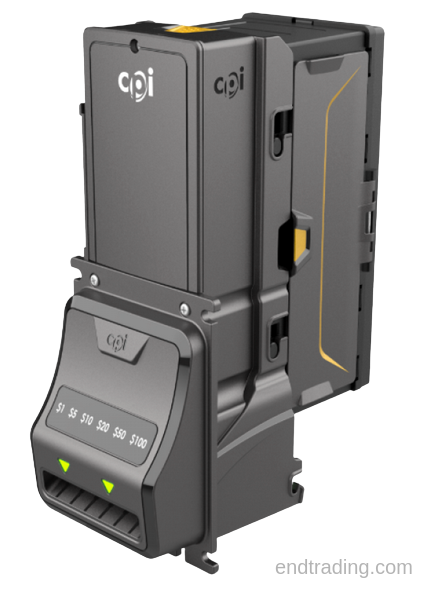

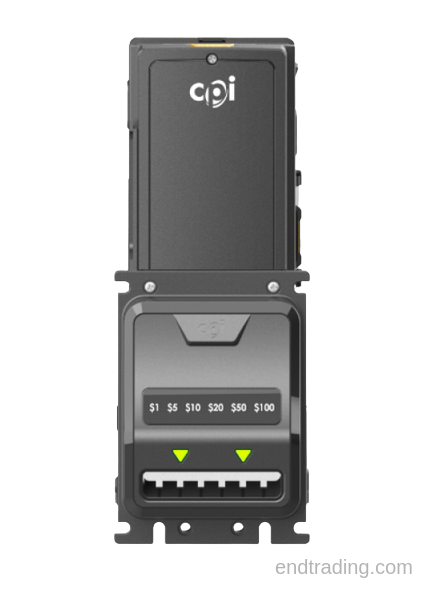

The MEI Talos T7T2-U5MUS is a U.S.-currency MDB bill validator designed for vending, kiosk, and amusement systems. As part of the Crane MEI Talos T7 Series, it replaces the discontinued VN27T2-U5MUS and offers faster bill acceptance, improved optical validation, and simplified field maintenance.
Featuring the T-Bezel (Extended Talos Entry Bezel), this model is ideal for installations where the validator must mount behind thicker cabinet doors or custom bezels. The T7T2-U5MUS delivers the perfect balance of accuracy, speed, and reliability using Crane MEI’s advanced Talos platform.
Key Features
- Accepts U.S. $1–$20 bills with high-speed optical validation
- MDB protocol for vending, kiosk, and amusement systems
- Replaces legacy VN27T2-U5MUS
- T-Bezel design for extended front-mount cabinet applications
- Advanced counterfeit and anti-stringing detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 500-note up-stacker cassette for easy servicing
- Durable gear-driven transport for long-term operation
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | T-Bezel (Extended Talos Entry Bezel) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s next-generation validator platform with modular design and enhanced optics. |
| 7 | Model Family | T7 Series — direct replacement for VN27xx validators. |
| T | Bezel Type | Extended T-Bezel — long-reach Talos bezel for thicker cabinet doors or custom front panels. |
| 2 | Interface Type | MDB communication protocol for vending and kiosk systems. |
| U5 | Stacker Configuration | Up-stacker design with 500-note capacity stacker box. |
| MUS | Build Code | Standard U.S. build with MDB firmware and Talos mainboard configuration. |
Summary:
The MEI Talos T7T2-U5MUS replaces the VN27T2-U5MUS, featuring a Talos extended T-Bezel, 500-note up-stacker, and fast MDB communication for vending and amusement systems.
