Description

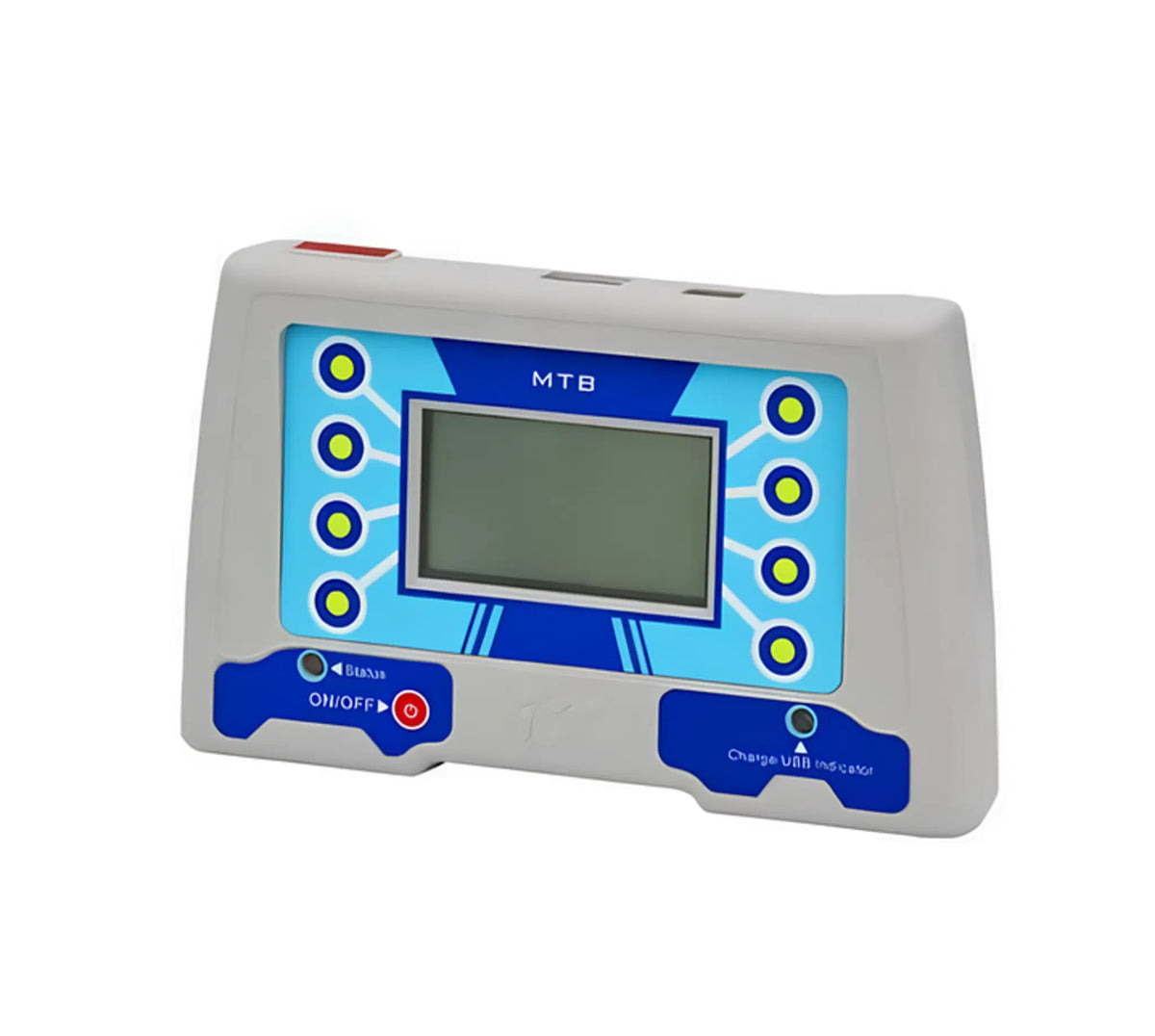

The MTB Bill Validator Communication Board is a field tool for updating firmware and settings on bill validators.
What it does
Currency updates and setting changes are part of keeping validators accepting the latest notes. A field tool lets you do that on site without shipping units back for service. A small status screen shows errors and settings, which saves time on a service call. Settings and firmware can be loaded over USB. Machine numbers are set with an SD card instead of dip switches. Firmware can be updated as currency changes.
Specifications
| Battery | 4 AA batteries, not included |
|---|---|
| Humidity | 85% non-condensing |
| Interfaces | USB & UART |
| Power consumption (maximum) | 6V, 350mA, 2.1W |
| Power consumption (operating) | 6V, 250mA, 1.5W |
| Power consumption (standby) | 6V, 100mA, 0.6W |
| Storage | Built-in memory & Micro-SD card slot |
| Storage temperature | -20°C–70°C |
| Weight | Approx. 288.5g |
| Working temperature | -5°C–50°C |
Works with
- LX7
- PA7
- S7ER
- S7A2
- V6E
- V7E
- V7P
- CC6100
- GP58
Good to know
- Bill acceptors: A/V Series, BR2300, BS7, E77, Envy
- Series, K77, L Series, LV77, LX7, NK Series, NBA, NE77, P Series, PA7, PL77, S Series, S7ER, S7A2, TAO Light, TAO-A/V, V6E, V7E, V7P, XBA, and X7P.
Help from E&D Trading
Not sure this is the right update tool? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
