Description

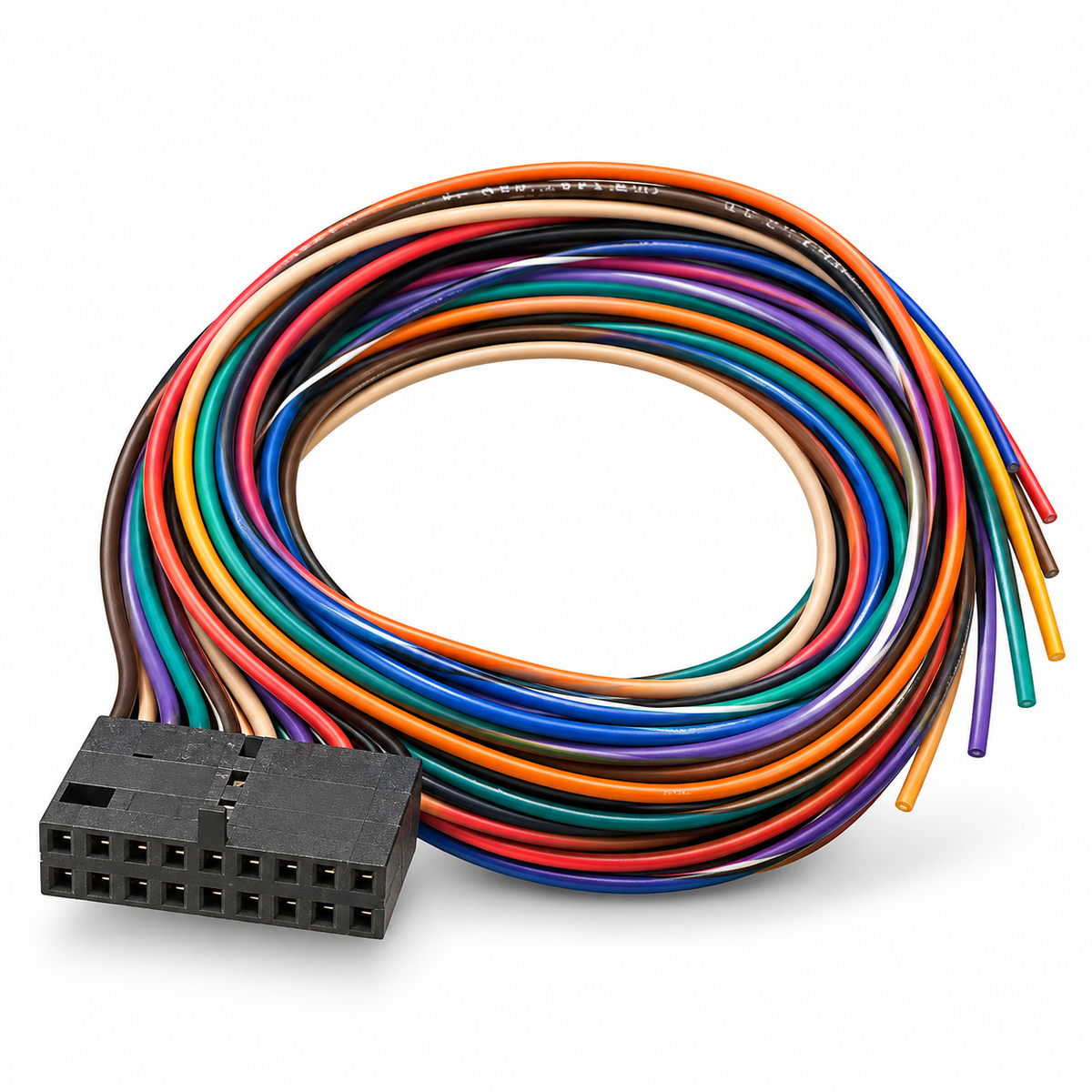

The Pyramid Apex 12V Fan-Out Harness, Part No. 05AA0029, connects a 12V DC Pyramid Apex bill acceptor to almost any game, kiosk or vending machine using open-ended, color-coded wire leads.
What it's for
One end has an 18-position (2×9) connector that plugs into the Apex bill acceptor. At the other end, each wire is a loose lead, so you can splice or terminate it to match the machine's wiring. It's a good fit for custom installs, conversions and replacing a damaged harness when there's no plug-and-play cable for your machine.
Specifications
- Bill acceptors: 12V DC Pyramid Apex models, such as the 7400-UB1 and 7600-UB1
- Connector: 18-position (2×9) connector on the bill acceptor end
- Machine end: Open, color-coded fan-out leads
- Power: 12V DC
- Part number: 05AA0029 (Pyramid Technologies)
Have a Pot-O-Gold game? The 12V POG Harness (05AA0027) plugs straight in with no splicing. Contact us if you're not sure which harness your machine needs.
Important: This listing is for the harness only. The bill acceptor is sold separately. Browse all Pyramid bill acceptors or more bill acceptor cables.
