Pyramid Phoenix SEN-02 Thermal Printer

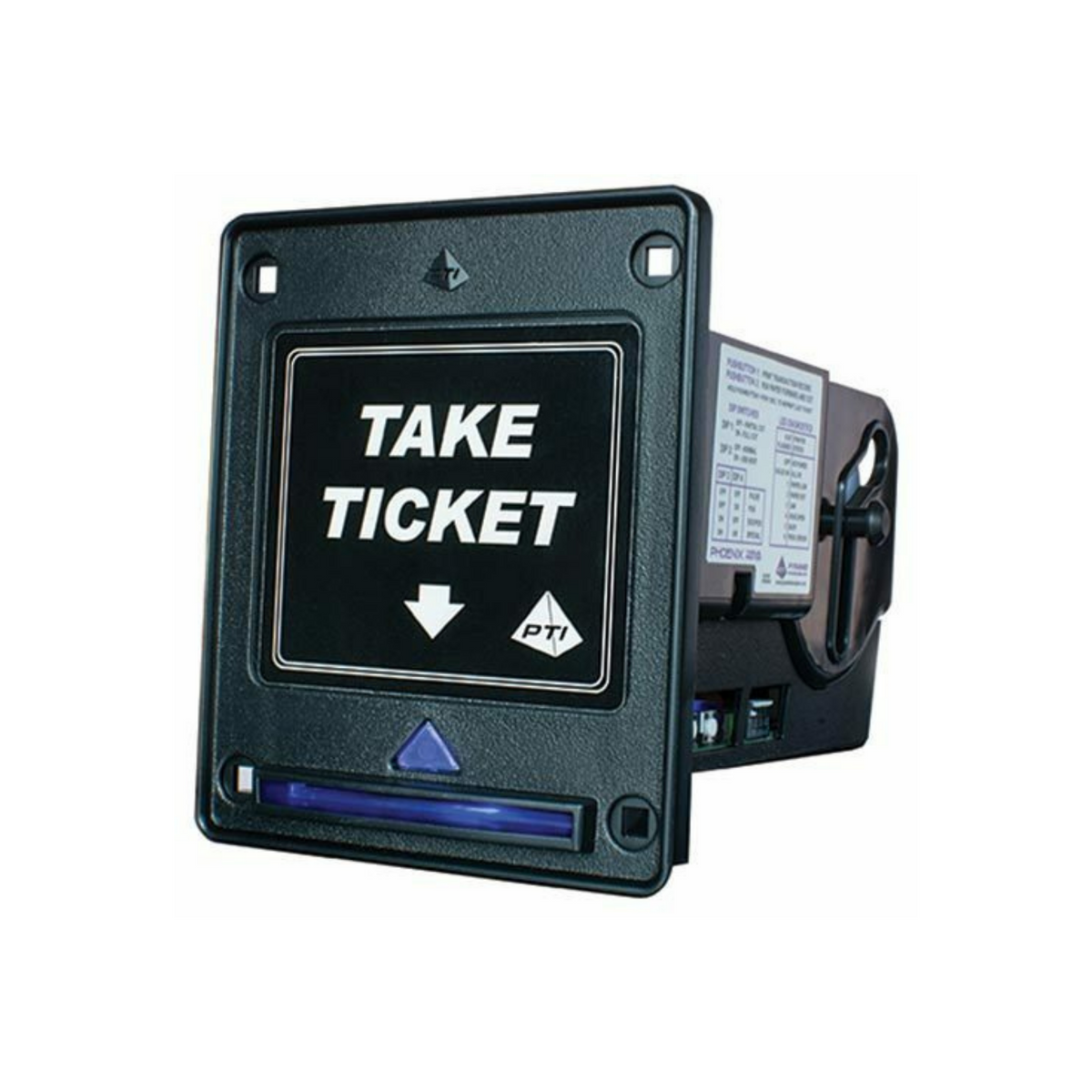

Pyramid Phoenix SEN-02 Thermal Printer — integrated 58mm ticket and receipt printer

The Pyramid Phoenix SEN-02, model PHX-SEN02, is a compact thermal printer platform for amusement, vending, kiosk, lottery, and gaming equipment. Pyramid Technologies builds this indoor-use unit for quiet, repeatable ticket and receipt output, with USB, Pulse, RS232, and POG communication support. E & D Trading supplies the SEN-02 as an authorized Pyramid distributor for OEM builders, route operators, and service technicians requiring a serviceable replacement or new installation.

Specifications

• Operating voltage: 12 VDC ±10%
• Current draw: 15mA idle; up to 5A operating
• Print rate: approximately one ticket every 3 seconds
• Paper: standard 58mm thermal paper with automatic loading
• Interfaces: USB, Pulse, RS232, and POG
• Operating temperature: 0°C to 60°C
• Humidity: up to 85% non-condensing
• Print-head life: 100 million pulses, approximately 31 miles (50km) of paper travel
• Cutter life: rated for 500,000 cuts
• Weight: approximately 1.25 lbs
• Integral auto cutter, lighted bezel, and illuminated ticket/coupon exit
• Built-in real-time clock for date and time printing
• DIP-switch setup, PC-upgradeable flash memory, and customizable ticket and coupon layouts

Compatible platforms

The Phoenix SEN-02 fits amusement and redemption machines, vending equipment, self-service kiosks, gaming devices, lottery machines, and other ticketing or coupon-printing systems requiring a 58mm thermal mechanism.

Integration notes

The printer supports panel mounting and can be configured through DIP switches for Pulse, POG, or ESC/POS operation. Automatic paper loading simplifies roll changes, while LED diagnostics identify conditions including low paper, jams, and other errors. Service requirements are limited to periodic print-head and paper-path cleaning. The unit is intended for indoor installation and should be protected from moisture, liquids, and debris. The package includes the PHX-SEN02 printer, power harness, and a starter roll of thermal paper.
