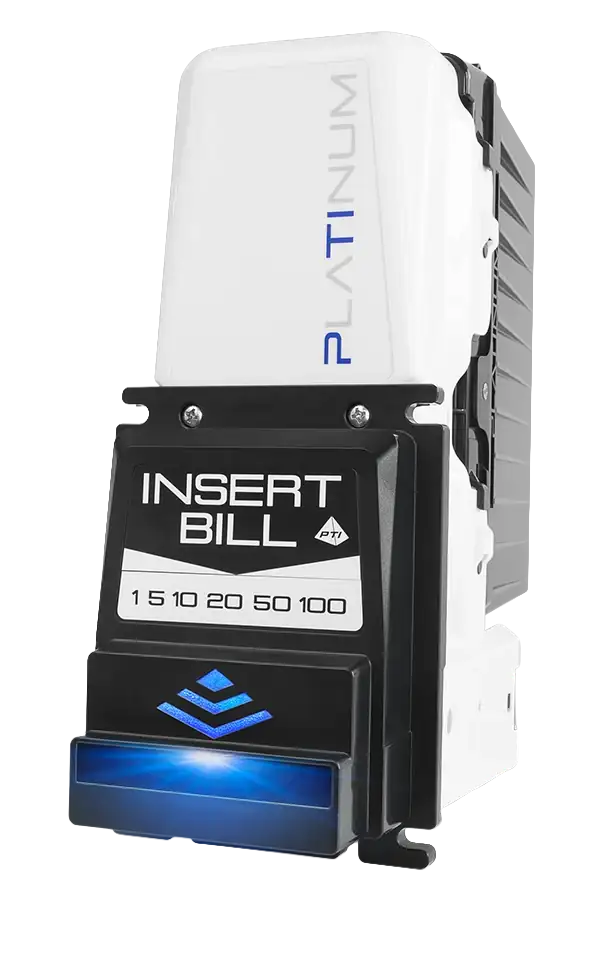

Pyramid Platinum PT1-LA4-USA MDB Bill Validator, 24V DC – 150-Note Locking Cash Box
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
- 30+ years serving operators
- Real technical support by phone
- Fast U.S. shipping
Description
The Pyramid Platinum PT1-LA4-USA brings Pyramid's Platinum validator to Multi-Drop Bus equipment such as vending machines, micro markets and kiosks. It takes its power straight from the MDB bus and stacks accepted notes into a compact, lockable 150-note cash box. It reads US currency ($1 through $100) on a 67mm bill width path.
What it does
- Accepts $1, $5, $10, $20, $50 and $100 US bills at better than 95% acceptance, around 27 bills a minute.
- Talks to the controller over the standard bi-directional MDB serial interface, using a standard MDB connector and pinout. Pyramid installs harness P/N 05AA0038, and a longer harness can be had if your cabinet needs one.
- UV LED validation, dual-stage optical anti-stringing and a mechanical anti-stringing lever work together against counterfeits and fishing.
- Lit bezel and lit bill entry.
- No DIP switches or configuration cards; firmware and settings come from a USB flash drive or a PC and are retained with the power off.
- Self-calibrating sensors, a lift-out bill path for cleaning, and push-button/LED or PC diagnostics.
- Made in the USA and covered by Pyramid's 2-year parts and labor warranty.
Who uses it
Vending and micro market operators whose machines are laid out for the smaller 150-note box. Inside, it is the same validator as the PT1-LB4-USA; only the cash box differs (150 notes here, 500 on the LB4).
Specifications
| Model | PT1-LA4-USA |
|---|---|
| SKU | PT1-LA4-USA |
| Brand | Pyramid Technologies |
| Series | Platinum (PT1) |
| Interface | MDB (Multi-Drop Bus) |
| Power | From the MDB bus, 24–40 VDC |
| MDB pins | 1 +24 VDC, 2 DC return, 4 master receive, 5 master transmit, 6 comms common |
| Currency | USA: $1, $5, $10, $20, $50, $100 |
| Bill width | 67mm |
| Cash box | Locking, removable, holds 150 notes |
| Acceptance | Over 95%, about 27 bills per minute |
| Operating range | 0–60 °C, up to 90% humidity, non-condensing |
| Warranty | 2 years parts and labor (Pyramid) |
Reading the part number: PT1 is the Platinum series, L is a locking cash box, A is the 150-note size, 4 is MDB power, and USA is US currency.
Help from E&D Trading
The interface is set in the configuration file, so let us know what machine or controller the validator is going into when you order. Unsure whether your cabinet takes the 150-note or the 500-note box? Call 877-922-6707. E&D Trading has more than 30 years of experience and can help you match the right Platinum before it ships.
