WEL-RV707 S7A Power Cable — ICT Interface Harness
The WEL-RV707 is an ICT cable assembly for S7A bill-acceptor installations. It supports Pulse and RS232 ICT Protocol communication with a 10~24V DC interface supply. E & D Trading supplies this harness to OEM builders, integrators, and route-service technicians requiring documented power and signal connections.
Specifications
- Cable: 2444 22 AWG 7C CABLE
- Connector: BUK 15°2
- Interface: Pulse or RS232 (ICT Protocol)
- Used voltage: 10~24V DC; pin 5 or pin 3 provides 12V DC power, depending on configuration
- Function: Power and data communication
Compatible platforms
Configured for WEL-RV707 S7A ICT bill-acceptor wiring and installations using either Pulse or RS232 ICT Protocol interfaces.
Integration notes

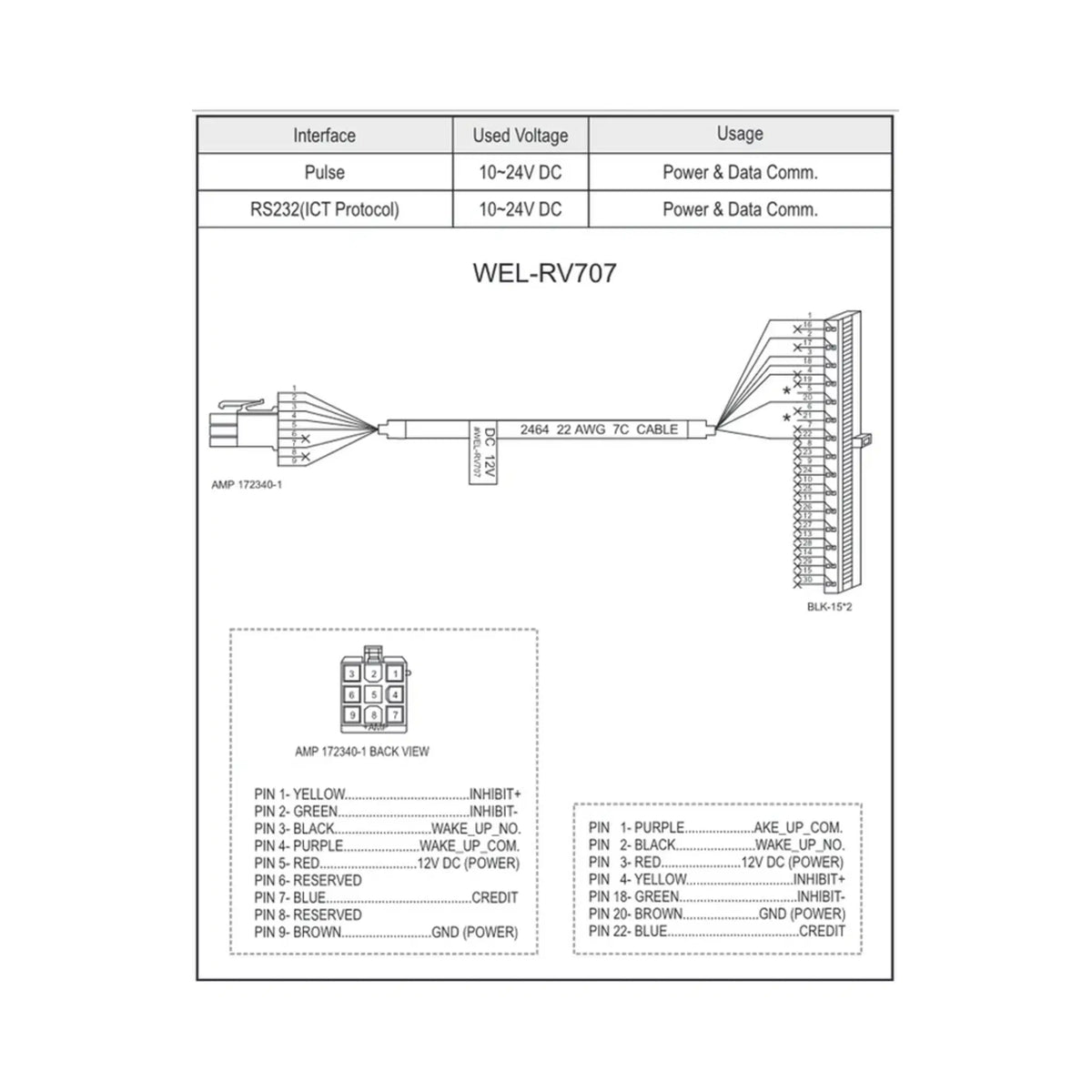

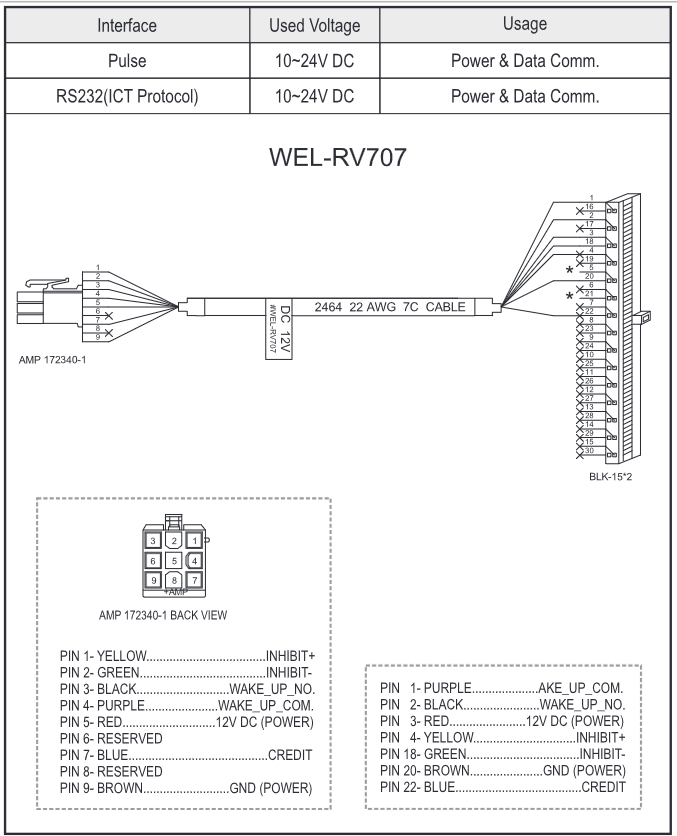

AMP 172340-1 back-view wiring is: PNN 1 yellow, INHIBIT+; PNN 2 green, INHIBIT-; PNN 3 black, WAKE_UP_NO.; PNN 4 purple, WAKE_UP_COM.; PNN 5 red, 12V DC (POWER); PNN 6 reserved; PNN 7 blue, CREDIT; PNN 8 reserved; PNN 9 brown, GND (POWER). Additional configuration: PNN 1 purple, WAKE_UP_COM.; PNN 2 black, WAKE_UP_NO.; PNN 3 red, 12V DC (POWER); PNN 4 yellow, INHIBIT+; PNN 18 green, INHIBIT-; PNN 20 brown, GND (POWER); PNN 22 blue, CREDIT. Verify the required pin arrangement before installation.
