Overview

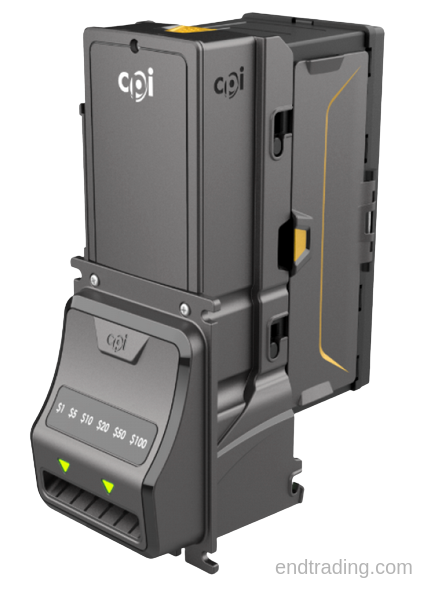

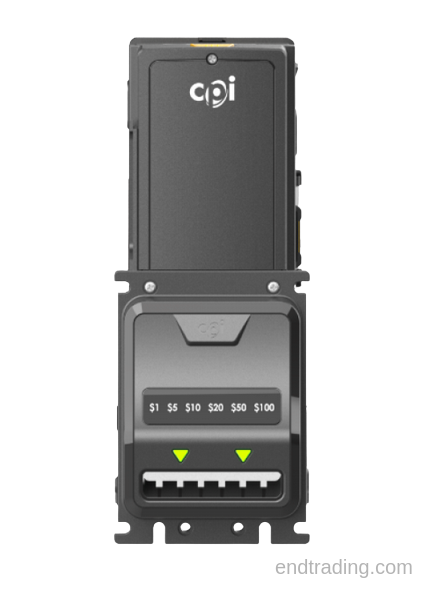

The MEI Talos T612-U3EUS is a U.S.-currency MDB bill validator from the Crane MEI Talos T6 Series, designed as a direct replacement for the AE2612-U3EUS. Built for vending, kiosk, and amusement systems, it combines Crane’s optical validation technology with a modular frame for faster service and improved performance.
This model features a VFM front-mount bezel for standard vending doors, an Up-Stacker configuration with a 300-note cassette, and operates on 24 V DC / 34 V DC MDB power. Its compact design and 4-way bill acceptance make it ideal for medium-traffic installations requiring dependable operation.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB communication protocol (24 V DC / 34 V DC)
- Replaces legacy AE2612-U3EUS
- VFM Bezel — standard front-mount design for vending and amusement machines
- Up-Stacker with 300-note cassette capacity
- Advanced anti-counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for tool-free maintenance
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | VFM Front-Mount Bezel |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 300 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s modern validator platform with modular design and optical accuracy. |
| 6 | Model Family | T6 Series — direct replacement for AE26xx validators. |
| 1 | Bezel Type | VFM front-mount bezel for vending and amusement applications. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB operation. |
| U3 | Stacker / Capacity | Up-Stacker with 300-note cassette capacity. |
| EUS | Build Code | U.S. E-series mainboard configuration with Talos firmware. |
Summary:
The MEI Talos T612-U3EUS replaces the AE2612-U3EUS, featuring a VFM front-mount bezel, Up-Stacker design, 300-note cassette, and 24 V DC MDB operation for vending and amusement systems.
