Description
Overview

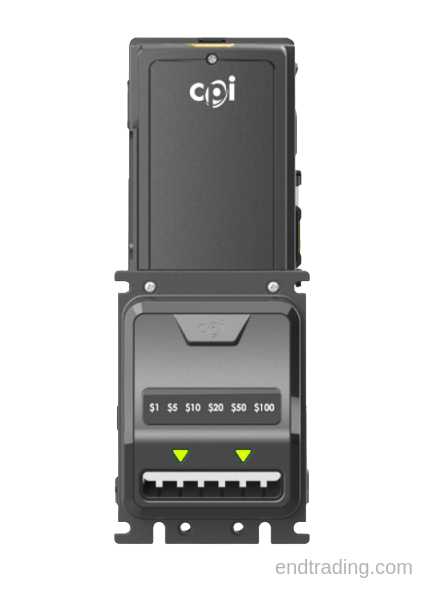

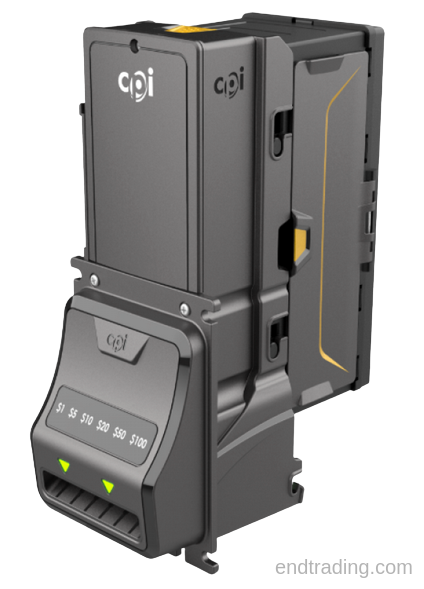

The MEI Talos T631-D5EUS is a U.S.-currency MDB bill validator designed for vending, kiosk, and amusement applications. As part of the Talos T6 Series, it replaces the discontinued AE2631-D5EUS model, offering faster validation, stronger counterfeit detection, and improved serviceability with a modular design.
Featuring MEI’s D-Bezel (High-Visibility Compact Bezel), this validator provides a bright, illuminated bill entry slot ideal for compact machine panels. The T631-D5EUS combines MEI’s proven gear-driven transport system with advanced optical sensors to ensure reliable note acceptance and reduced maintenance downtime.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- MDB interface for vending, kiosk, and amusement systems
- High-Visibility Compact D-Bezel for smaller door openings
- Replaces legacy AE2631-D5EUS
- Enhanced anti-stringing and counterfeit protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular construction for easy service
- Durable gear-driven transport for long-life reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | D-Bezel (High-Visibility Compact) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (down-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — MEI’s next-generation validator platform offering enhanced optics and modular construction. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 3 | Design Variant | Third-generation Talos layout optimized for compact vending and kiosk doors. |
| 1 | Interface Revision | MDB communication protocol for vending and amusement systems. |
| D | Bezel / Stacker Orientation | High-Visibility Compact D-Bezel with down-stacker configuration. |
| 5 | Stacker Capacity | 500-note stacker box (standard capacity for compact MDB validators). |
| EUS | Build Code | U.S. standard 24 V MDB configuration (E-series mainboard) with Talos firmware. |
Summary:
The MEI Talos T631-D5EUS replaces the AE2631-D5EUS, offering a compact high-visibility D-Bezel, down-stacker design, and Crane MEI’s proven Talos performance for modern MDB vending and amusement systems.
Endtrading.com is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
